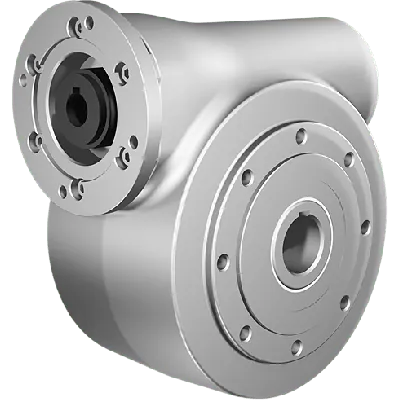

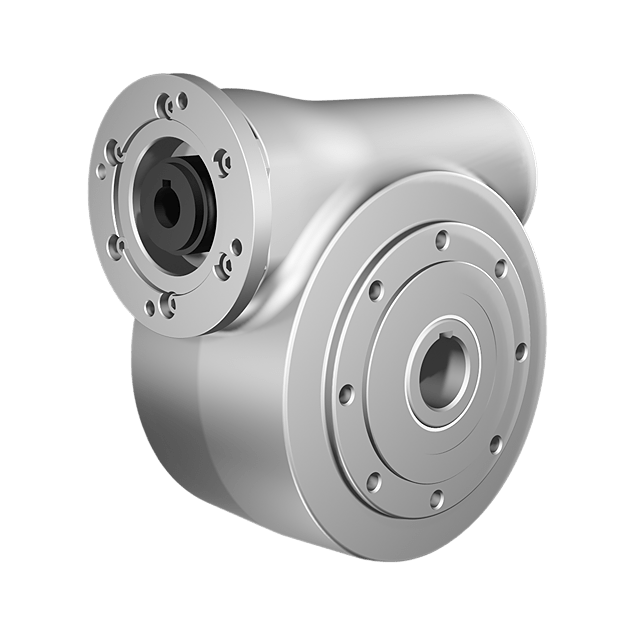

Clean-Geartech N85, worm gear Ø35, 38:1, input 80B14, stainless steel
HV82PN85UNIN070MKINN-RB3-D-OFThis unit features a gear size of N85 and a gear ratio of 38:1, making it suitable for applications requiring significant torque reduction. It is built with AISI 316L stainless steel gears for high corrosion resistance in demanding environments. The input shaft measures 19 mm, while the output shaft is 35 mm, offering compatibility with various mechanical systems.The interface conforms to 80B14 standards, enabling straightforward motor integration. With a BCD input of 100 mm and BCD output of 130 mm, the unit supports efficient load distribution, and provides 71% efficiency under nominal conditions.
Specifications
Product description
Downloads
€1,991.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
12.800000
Material
Stainless steel AISI 316L
Ratio
38:1
BCD input
100
BCD output
130
Efficiency (%)
71
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N85
Output speed at 1400 RPM
37
Max output torque (Nm)
336
Max kW input at 1400 rpm
1.8
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a premium manufacturer specializing in advanced stainless steel gear solutions for demanding industrial environments. Known for their precision engineering, hygienic design, and exceptional material quality, Clean-Geartech products are widely trusted in industries such as food processing, pharmaceuticals, marine, and chemical applications. All components are designed for maximum performance, corrosion resistance, and easy integration into strict hygiene-regulated systems.Key Features, Technical Benefits & Applications:
Robust 38:1 gear ratio enables high torque transmission ideal for slow-speed, high-load applications such as conveyors, mixers, and dosing systems in process industries.
Manufactured in corrosion-resistant AISI 316L stainless steel—ensuring outstanding durability and suitability for use in aggressive environments including CIP/SIP washdown zones, salt-laden atmospheres, and chemical processing plants.
Output shaft diameter of Ø35 mm provides compatibility with a wide range of couplings and driven components, offering flexibility in system design and integration.
Input shaft Ø19 mm with standardized 80B14 motor interface ensures seamless mounting with IEC-standard motors, allowing for quick replacement and system compatibility.
Overall gear efficiency of 71%—optimized for balancing torque multiplication and energy conservation in industrial motion applications.
Compact gearbox housing size N85 makes it suitable for installations where space is limited without compromising on performance.
Sealed, hygienic gearbox body—precision machined to reduce crevices and bacterial traps, promoting compliance with hygienic design standards in food and bio industries.
Backlash-minimizing worm gear construction enhances positioning accuracy and load stability, critical in automated systems and robotic arms.
Designed for vertical and horizontal mounting orientations, permitting maximum flexibility in system layouts and machinery configurations. Ideal for integration into stainless steel-driven environments where hygiene, strength, and reliability are top priority, such as meat processing plants, pharmaceutical filling lines, marine deck equipment, and harsh chemical production lines. Clean-Geartech offers precision performance in the most demanding conditions—redefining driveline durability.
Robust 38:1 gear ratio enables high torque transmission ideal for slow-speed, high-load applications such as conveyors, mixers, and dosing systems in process industries.
Manufactured in corrosion-resistant AISI 316L stainless steel—ensuring outstanding durability and suitability for use in aggressive environments including CIP/SIP washdown zones, salt-laden atmospheres, and chemical processing plants.
Output shaft diameter of Ø35 mm provides compatibility with a wide range of couplings and driven components, offering flexibility in system design and integration.
Input shaft Ø19 mm with standardized 80B14 motor interface ensures seamless mounting with IEC-standard motors, allowing for quick replacement and system compatibility.
Overall gear efficiency of 71%—optimized for balancing torque multiplication and energy conservation in industrial motion applications.
Compact gearbox housing size N85 makes it suitable for installations where space is limited without compromising on performance.
Sealed, hygienic gearbox body—precision machined to reduce crevices and bacterial traps, promoting compliance with hygienic design standards in food and bio industries.
Backlash-minimizing worm gear construction enhances positioning accuracy and load stability, critical in automated systems and robotic arms.
Designed for vertical and horizontal mounting orientations, permitting maximum flexibility in system layouts and machinery configurations. Ideal for integration into stainless steel-driven environments where hygiene, strength, and reliability are top priority, such as meat processing plants, pharmaceutical filling lines, marine deck equipment, and harsh chemical production lines. Clean-Geartech offers precision performance in the most demanding conditions—redefining driveline durability.
