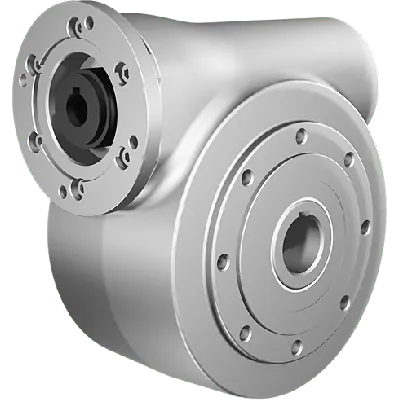

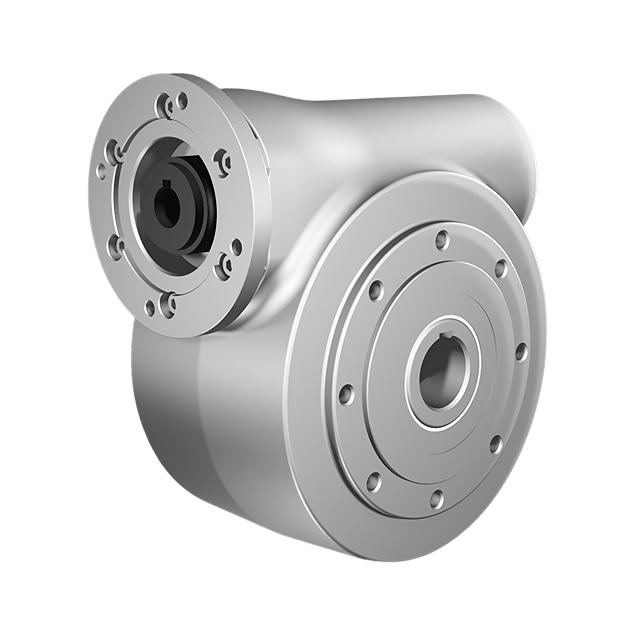

Clean-Geartech N85, worm gear Ø35, 28:1, input 80B14, stainless steel
HV82PN85UNIN060MKINN-RB3-D-OFIt features a gear size of N85 and a transmission ratio of 28:1. The gear input shaft is 19 mm, while the gear output shaft is 35 mm, supporting optimal torque transfer. The BCD input is 100 and the BCD output is 130, enabling compatibility with various motor configurations. The gear motor interface is 80B14. Constructed using stainless steel AISI 316L gearing, it ensures resistance to aggressive cleaning and corrosive environments. The gearbox efficiency is 75%. Designed for hygienic and food-grade applications.
Specifications
Product description
Downloads
€1,991.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
28:1
BCD input
100
BCD output
130
Efficiency (%)
75
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N85
Output speed at 1400 RPM
50
Max output torque (Nm)
347
Max kW input at 1400 rpm
2.4
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech N85 worm gearbox stands out as a premium choice for demanding industrial applications requiring high reliability, hygiene, and corrosion resistance. Engineered by Clean-Geartech—a trusted European manufacturer known for its focus on hygienic, stainless steel gear solutions—this gearbox combines mechanical durability with industry-leading sanitary design. Its robust construction and high-quality components make it exceptionally suitable for use in food processing, pharmaceutical manufacturing, and other cleanroom-intensive environments.Key Features, Functional Advantages & Industrial Applications:
• Fully encapsulated housing made from corrosion-resistant AISI 316L stainless steel offers enhanced durability and hygiene, making it ideal for washdown and aggressive chemical environments.
• Stainless steel Ø35 mm output shaft ensures long life in high-wear applications and provides superior resistance to corrosion in humid or acidic conditions.
• Sealed with IP69K-grade design principles, the gearbox is resistant to high-pressure, high-temperature washdowns, making it compliant with strict food safety standards.
• High torque performance and reliability are delivered through its 28:1 gear ratio, ensuring controlled and efficient output in automated machinery and conveyor applications.
• A compact design with an input shaft diameter of Ø19 mm facilitates space-efficient integration into processing lines and automation systems.
• The B14 flange interface (size 80) allows seamless mounting onto standard IEC motors, streamlining installation in multi-industry systems.
• Operational efficiency of 75% provides energy saving potential in continuous-duty cycles.
• Suitable for industries such as food & beverage, chemical processing, pharmaceuticals, and marine environments where hygiene and corrosion resistance are critical.
• Clean-Geartech’s engineering heritage ensures strict compliance with regulatory standards and long-term operational reliability even in its most compact form factor—Gear size N85. With its stainless steel construction and optimized power transmission, the Clean-Geartech N85 worm gearbox is a premium solution for engineers and technical integrators seeking reliable operation in harsh or hygiene-sensitive environments.
• Fully encapsulated housing made from corrosion-resistant AISI 316L stainless steel offers enhanced durability and hygiene, making it ideal for washdown and aggressive chemical environments.
• Stainless steel Ø35 mm output shaft ensures long life in high-wear applications and provides superior resistance to corrosion in humid or acidic conditions.
• Sealed with IP69K-grade design principles, the gearbox is resistant to high-pressure, high-temperature washdowns, making it compliant with strict food safety standards.
• High torque performance and reliability are delivered through its 28:1 gear ratio, ensuring controlled and efficient output in automated machinery and conveyor applications.
• A compact design with an input shaft diameter of Ø19 mm facilitates space-efficient integration into processing lines and automation systems.
• The B14 flange interface (size 80) allows seamless mounting onto standard IEC motors, streamlining installation in multi-industry systems.
• Operational efficiency of 75% provides energy saving potential in continuous-duty cycles.
• Suitable for industries such as food & beverage, chemical processing, pharmaceuticals, and marine environments where hygiene and corrosion resistance are critical.
• Clean-Geartech’s engineering heritage ensures strict compliance with regulatory standards and long-term operational reliability even in its most compact form factor—Gear size N85. With its stainless steel construction and optimized power transmission, the Clean-Geartech N85 worm gearbox is a premium solution for engineers and technical integrators seeking reliable operation in harsh or hygiene-sensitive environments.
