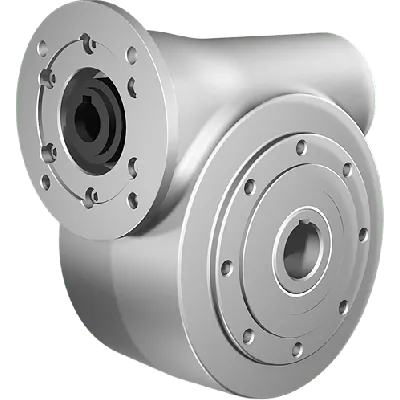

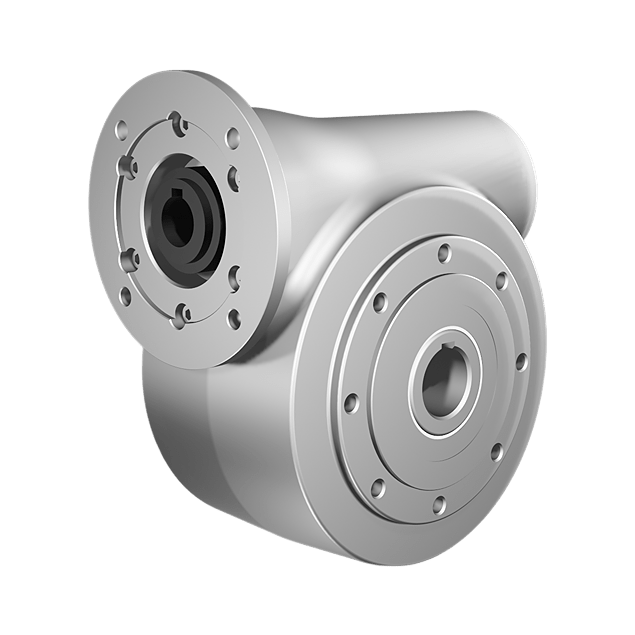

Clean-Geartech N85, worm gear Ø35, 22:1, input 90B14, stainless steel
HV82PN85UNIN050MKINN-TB3-E-OFThe Clean-Geartech N85, worm gear Ø35, 22:1, input 90B14, stainless steel, is engineered for demanding industrial applications. Featuring a BCD input of 115 mm and a BCD output of 130 mm, it achieves an efficiency of 78%. The gear input shaft diameter is 24 mm, and the gear output shaft diameter is 35 mm. With a ratio of 22:1 and a gear size of N85, this unit integrates via a 90B14 gear motor interface. The entire gear material is stainless steel AISI 316L for enhanced corrosion resistance in harsh environments.
Specifications
Product description
Downloads
€1,995.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
12.800000
Material
Stainless steel AISI 316L
Ratio
22:1
BCD input
115
BCD output
130
Efficiency (%)
78
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
N85
Output speed at 1400 RPM
64
Max output torque (Nm)
294
Max kW input at 1400 rpm
2.5
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a premium manufacturer of hygienic and corrosion-resistant drive components, tailored specifically for industries with demanding environmental and hygiene requirements. Known for exceptional build quality and use of AISI 316L stainless steel, Clean-Geartech’s gearboxes are engineered to meet the high standards of the food, chemical, and pharmaceutical industries, as well as maritime and offshore applications.Product Key Features and Application Benefits:
• Constructed entirely from AISI 316L stainless steel, the Clean-Geartech N85 ensures exceptional corrosion resistance, making it ideal for aggressive and hygienic environments such as food processing, chemical handling, and pharmaceutical manufacturing.
• Designed with a 35 mm stainless steel hollow output shaft, the gearbox enables efficient torque transmission while ensuring compatibility with a variety of driven components, enhancing installation flexibility in automated systems.
• Gear input shaft with a 24 mm diameter allows seamless integration with standard motor shafts, supporting direct coupling and reducing misalignment risk in high-duty industrial applications.
• The 90B14 gear motor interface provides standardized compatibility with IEC motors, simplifying assembly in modular systems for engineering professionals and system integrators.
• With a gear ratio of 22:1, the gearbox is optimized for delivering high torque at low speeds — ideal for conveyor systems, mixers, rotary tables, and lifting mechanisms in processing and packaging industries.
• 78% mechanical efficiency ensures energy-cost effectiveness, even in continuous operations, leading to lower operational expenditure over time for plant operators.
• Gearbox mounting base with BCD input 115 mm and BCD output 130 mm ensures structural stability and versatile mounting options in automated machinery and production lines.
• Gear size N85 balances compactness with robust mechanical performance, suitable for space-constrained installations without compromising on torque output or system reliability.The Clean-Geartech N85 is a high-performance stainless steel worm gearbox engineered to meet the stringent hygiene, corrosion resistance, and durability standards demanded by technical specialists in industrial and engineering environments.
• Constructed entirely from AISI 316L stainless steel, the Clean-Geartech N85 ensures exceptional corrosion resistance, making it ideal for aggressive and hygienic environments such as food processing, chemical handling, and pharmaceutical manufacturing.
• Designed with a 35 mm stainless steel hollow output shaft, the gearbox enables efficient torque transmission while ensuring compatibility with a variety of driven components, enhancing installation flexibility in automated systems.
• Gear input shaft with a 24 mm diameter allows seamless integration with standard motor shafts, supporting direct coupling and reducing misalignment risk in high-duty industrial applications.
• The 90B14 gear motor interface provides standardized compatibility with IEC motors, simplifying assembly in modular systems for engineering professionals and system integrators.
• With a gear ratio of 22:1, the gearbox is optimized for delivering high torque at low speeds — ideal for conveyor systems, mixers, rotary tables, and lifting mechanisms in processing and packaging industries.
• 78% mechanical efficiency ensures energy-cost effectiveness, even in continuous operations, leading to lower operational expenditure over time for plant operators.
• Gearbox mounting base with BCD input 115 mm and BCD output 130 mm ensures structural stability and versatile mounting options in automated machinery and production lines.
• Gear size N85 balances compactness with robust mechanical performance, suitable for space-constrained installations without compromising on torque output or system reliability.The Clean-Geartech N85 is a high-performance stainless steel worm gearbox engineered to meet the stringent hygiene, corrosion resistance, and durability standards demanded by technical specialists in industrial and engineering environments.
