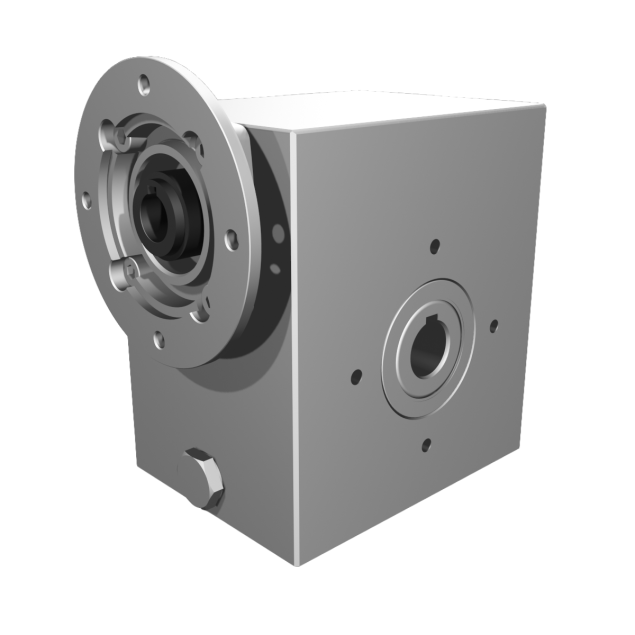

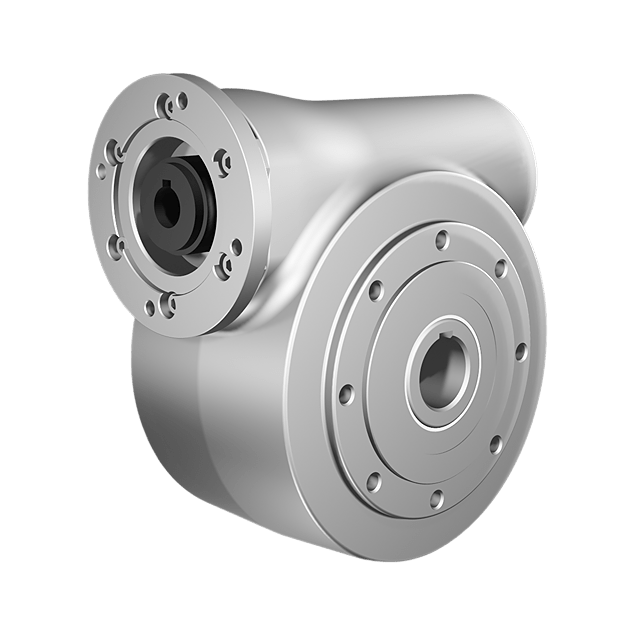

Clean-Geartech N85, worm gear Ø35, 22:1, input 80B14, stainless steel
HV82PN85UNIN050MKINN-RB3-D-OFIt features a gear size of N85 and a 22:1 gear ratio, enabling torque multiplication in confined setups. The input shaft diameter is 19 mm and connects via a gear motor interface 80B14, while the output shaft diameter is 35 mm for robust torque transfer. With a BCD input of 100 mm and a BCD output of 130 mm, it allows for standardized mechanical interfacing. Constructed with gears made of stainless steel AISI 316L, the unit ensures high durability in demanding environments. The system achieves an efficiency of 78%, making it suitable for industrial use where hygiene and reliability are critical.
Specifications
Product description
Downloads
€1,991.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
22:1
BCD input
100
BCD output
130
Efficiency (%)
78
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N85
Output speed at 1400 RPM
64
Max output torque (Nm)
294
Max kW input at 1400 rpm
2.5
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech N85, Worm Gear Ø35, 22:1, Input 80B14, Stainless Steel Introducing the Clean-Geartech N85 stainless steel worm gearbox — engineered for maximum hygiene, reliability, and performance in industrial and technical environments. Manufactured by Clean-Geartech, a trusted European leader specializing in stainless steel power transmission components, this gearbox is designed to meet the highest standards of durability and cleanliness. Ideal for use in rigorous applications such as food processing, chemical production, wastewater treatment, pharmaceuticals, and marine environments. Key Features and Application Benefits:
High-grade AISI 316L stainless steel construction ensures superior corrosion resistance, ideal for washdown, caustic, and high-humidity environments such as food & beverage and marine industries.
22:1 gear ratio provides excellent torque multiplication and controlled output speed, suitable for conveyors, mixers, and dosing systems.
Hollow output shaft of Ø35 mm made of stainless steel offers easy integration with shafts and simplifies maintenance in harsh environments.
Bore-compatible input shaft (Ø19 mm) designed for reliable power transmission from IEC electric motors.
Motor interface type 80B14 provides standardized compatibility with a range of IEC motors, simplifying integration into existing systems.
Compact N85 gear size allows for space-saving installations in tight machine layouts or equipment housings.
78% efficiency delivers cost-effective operation for duty cycles requiring continuous and reliable power output.
Clean, crevice-free external surface design reduces the accumulation of debris and supports best practices for hygienic system design.
Backlash-reducing worm design ensures smooth, vibration-free performance in precision control applications.
Ideal for use in chemical dosing pumps, sterilizers, process valves, and packaging machines demanding high resistance to corrosive media. With engineering tailored to meet demanding technical environments, Clean-Geartech delivers reliability and hygiene without compromising performance.
High-grade AISI 316L stainless steel construction ensures superior corrosion resistance, ideal for washdown, caustic, and high-humidity environments such as food & beverage and marine industries.
22:1 gear ratio provides excellent torque multiplication and controlled output speed, suitable for conveyors, mixers, and dosing systems.
Hollow output shaft of Ø35 mm made of stainless steel offers easy integration with shafts and simplifies maintenance in harsh environments.
Bore-compatible input shaft (Ø19 mm) designed for reliable power transmission from IEC electric motors.
Motor interface type 80B14 provides standardized compatibility with a range of IEC motors, simplifying integration into existing systems.
Compact N85 gear size allows for space-saving installations in tight machine layouts or equipment housings.
78% efficiency delivers cost-effective operation for duty cycles requiring continuous and reliable power output.
Clean, crevice-free external surface design reduces the accumulation of debris and supports best practices for hygienic system design.
Backlash-reducing worm design ensures smooth, vibration-free performance in precision control applications.
Ideal for use in chemical dosing pumps, sterilizers, process valves, and packaging machines demanding high resistance to corrosive media. With engineering tailored to meet demanding technical environments, Clean-Geartech delivers reliability and hygiene without compromising performance.
