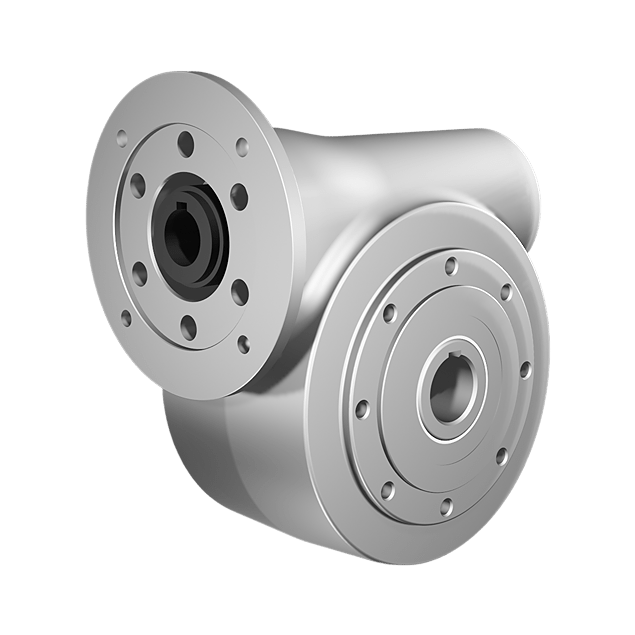

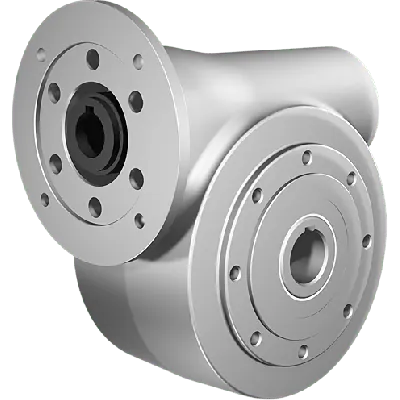

Clean-Geartech N85, worm gear Ø35, 22:1, input 100/112B14, stainless steel
HV82PN85UNIN050MKINN-UB3-F-OFThe Clean-Geartech N85 worm gearbox is designed for industrial use with focus on reliability and durability. Key attributes include a stainless steel (AISI 316L) gear, 35 mm stainless steel output shaft, 100/112B14 gear motor interface, and a gear ratio of 22:1. The input shaft diameter is 28 mm, providing efficient power transfer with an efficiency of 78%. The gearbox features BCD input and output of 130 mm and a gear size N85. This configuration is suitable for demanding applications where corrosion resistance and mechanical robustness are critical.
Specifications
Product description
Downloads
€2,019.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
12.800000
Material
Stainless steel AISI 316L
Ratio
22:1
BCD input
130
BCD output
130
Efficiency (%)
78
Gear output shaft (mm)
35
Gear input shaft (mm)
28
Gear motor interface
100/112B14
Gear size
N85
Output speed at 1400 RPM
64
Max output torque (Nm)
294
Max kW input at 1400 rpm
2.5
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a premium manufacturer of hygienic and corrosion-resistant gear solutions designed for demanding industrial environments. Specializing in stainless steel gearboxes, Clean-Geartech's products are engineered to excel in industries like food processing, pharmaceuticals, marine, and chemical processing—where cleanliness, durability, and performance are critical.
Constructed entirely from AISI 316L stainless steel, the gear housing provides outstanding resistance to corrosion, making it ideal for use in aggressive environments where hygiene and chemical exposure are key concerns.
The gear ratio of 22:1 enables significant torque multiplication, maximizing output performance in compact spaces and enabling efficient transmission in heavy-duty axial loads applications.
The stainless steel output shaft with a diameter of 35 mm ensures long-term durability and is suitable for direct connection to machinery in washdown zones or chemically sanitized environments.
The input flange interface (100/112B14) ensures compatibility with a wide range of IEC-standard motors, simplifying system integration and reducing design complexity in modular automation systems.
The stainless steel hollow shaft (SS hollow shaft) improves corrosion resistance even within internal transmission elements, supporting longevity in extreme operating conditions.
With an efficiency rating of 78%, this N85 gearbox ensures robust mechanical performance while maintaining minimized energy loss, ideal for applications that require sustained motor operation under load.
The input shaft diameter of 28 mm facilitates mechanical connections with both standard and customized drive configurations while maintaining precise torque transmission.
The compact gearbox size (N85) offers a space-saving solution while delivering high torque output, making it suitable for confined installations in complex machinery layouts.
Engineered for hygienic-sensitive industries, the smooth surface finish and crevice-free design help meet EHEDG and FDA guidelines, facilitating easy cleaning and bacterial resistance in food and pharmaceutical environments.
Constructed entirely from AISI 316L stainless steel, the gear housing provides outstanding resistance to corrosion, making it ideal for use in aggressive environments where hygiene and chemical exposure are key concerns.
The gear ratio of 22:1 enables significant torque multiplication, maximizing output performance in compact spaces and enabling efficient transmission in heavy-duty axial loads applications.
The stainless steel output shaft with a diameter of 35 mm ensures long-term durability and is suitable for direct connection to machinery in washdown zones or chemically sanitized environments.
The input flange interface (100/112B14) ensures compatibility with a wide range of IEC-standard motors, simplifying system integration and reducing design complexity in modular automation systems.
The stainless steel hollow shaft (SS hollow shaft) improves corrosion resistance even within internal transmission elements, supporting longevity in extreme operating conditions.
With an efficiency rating of 78%, this N85 gearbox ensures robust mechanical performance while maintaining minimized energy loss, ideal for applications that require sustained motor operation under load.
The input shaft diameter of 28 mm facilitates mechanical connections with both standard and customized drive configurations while maintaining precise torque transmission.
The compact gearbox size (N85) offers a space-saving solution while delivering high torque output, making it suitable for confined installations in complex machinery layouts.
Engineered for hygienic-sensitive industries, the smooth surface finish and crevice-free design help meet EHEDG and FDA guidelines, facilitating easy cleaning and bacterial resistance in food and pharmaceutical environments.
