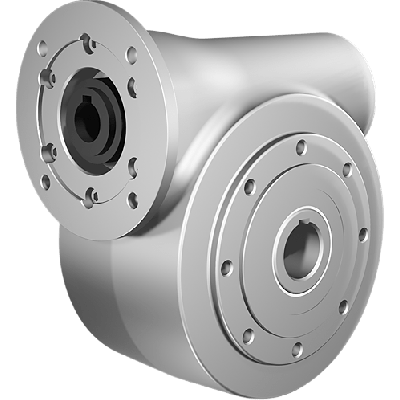

Clean-Geartech N85, worm gear Ø35, 20:1, input 90B14, stainless steel
HV82PN85UNIN040MKINN-TB3-E-OFThe Clean-Geartech N85, worm gearbox Ø35, 20:1, input 90B14, stainless steel is designed for industrial applications requiring reliability and robustness. With a BCD input of 115 mm, BCD output of 130 mm, and gear input shaft diameter of 24 mm, this gearbox fits precise interface requirements. The gear output shaft is 35 mm in diameter. Featuring a 20:1 ratio and efficiency of 79%, it supports demanding torque transfers. The gear motor interface is 90B14 and the gear size is N85. All gear components are made from stainless steel AISI 316L for enhanced durability in harsh environments.
Specifications
Product description
Downloads
€1,995.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
12.800000
Material
Stainless steel AISI 316L
Ratio
20:1
BCD input
115
BCD output
130
Efficiency (%)
79
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
N85
Output speed at 1400 RPM
70
Max output torque (Nm)
294
Max kW input at 1400 rpm
2.7
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description:Clean-Geartech is a renowned manufacturer of high-performance gear solutions tailored for demanding industrial environments. Specializing in hygienic and corrosion-resistant drive technology, Clean-Geartech products are ideal for applications within the food, pharmaceutical, and chemical industries. Their gear units are engineered to meet the highest standards in durability, cleanliness, and precision.Key Features, Benefits & Applications:
• Manufactured from AISI 316L stainless steel, the gear unit offers exceptional corrosion resistance for use in aggressive environments such as food processing, chemical plants, and pharmaceutical production.
• Compact worm gearbox (Size N85) ensures a combination of high torque transmission with space-saving design, ideal for tight installation spaces in automated machinery.
• 20:1 gear ratio enables precise speed reduction and controlled torque output, making it suitable for conveyor systems, dosing machines, and rotary equipment where exact motion control is required.
• Efficiency rating of 79% provides reliable performance while keeping energy losses to a minimum – perfect for continuous operation in industrial systems.
• Hollow output shaft Ø35 mm (stainless steel) allows for seamless and hygienic integration in both CIP (Clean-in-Place) and SIP (Sterilize-in-Place) applications.
• Stainless steel input shaft Ø24 mm ensures a highly durable and wear-resistant interface with motor input, suitable for long-lasting service in demanding duty cycles.
• Gear motor interface 90B14 enables standardized mounting to a wide range of IEC motors, ensuring flexibility in system integration and ease of maintenance.
• Smooth, hygienically designed exterior minimizes dirt accumulation and is easily cleanable, reducing downtime and supporting compliance with HACCP and EHEDG requirements.
• Suitable for industries such as food and beverage, pharmaceuticals, cosmetics, biotechnology, marine, wastewater treatment, and cleanroom automation.This robust and efficient worm gearbox from Clean-Geartech combines hygiene, durability, and performance to fulfill the highest demands in sanitary and industrial environments.
• Manufactured from AISI 316L stainless steel, the gear unit offers exceptional corrosion resistance for use in aggressive environments such as food processing, chemical plants, and pharmaceutical production.
• Compact worm gearbox (Size N85) ensures a combination of high torque transmission with space-saving design, ideal for tight installation spaces in automated machinery.
• 20:1 gear ratio enables precise speed reduction and controlled torque output, making it suitable for conveyor systems, dosing machines, and rotary equipment where exact motion control is required.
• Efficiency rating of 79% provides reliable performance while keeping energy losses to a minimum – perfect for continuous operation in industrial systems.
• Hollow output shaft Ø35 mm (stainless steel) allows for seamless and hygienic integration in both CIP (Clean-in-Place) and SIP (Sterilize-in-Place) applications.
• Stainless steel input shaft Ø24 mm ensures a highly durable and wear-resistant interface with motor input, suitable for long-lasting service in demanding duty cycles.
• Gear motor interface 90B14 enables standardized mounting to a wide range of IEC motors, ensuring flexibility in system integration and ease of maintenance.
• Smooth, hygienically designed exterior minimizes dirt accumulation and is easily cleanable, reducing downtime and supporting compliance with HACCP and EHEDG requirements.
• Suitable for industries such as food and beverage, pharmaceuticals, cosmetics, biotechnology, marine, wastewater treatment, and cleanroom automation.This robust and efficient worm gearbox from Clean-Geartech combines hygiene, durability, and performance to fulfill the highest demands in sanitary and industrial environments.
