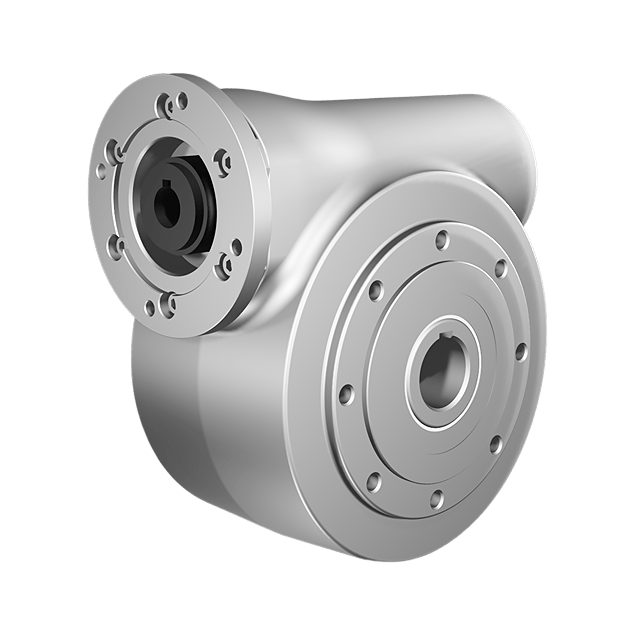

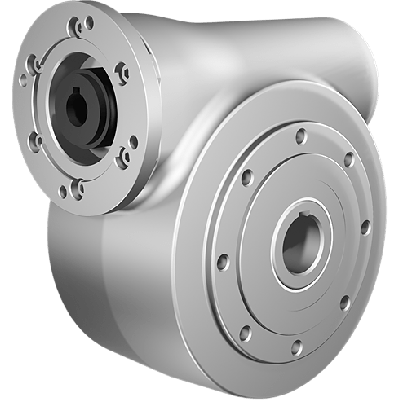

Clean-Geartech N85, worm gear Ø35, 20:1, input 80B14, stainless steel
HV82PN85UNIN040MKINN-RB3-D-OFIt features a gear ratio of 20:1 and a BCD input of 100 mm with a BCD output of 130 mm. The input shaft diameter is 19 mm, and the output shaft diameter is 35 mm. The gear motor interface is 80B14, and the gear size is N85. Designed for reliability and durability, the gears are made of stainless steel AISI 316L, and the housing includes a stainless steel hollow shaft. The unit delivers an efficiency of 79%, making it a reliable choice for applications in hygiene-critical or corrosive environments.
Specifications
Product description
Downloads
€1,991.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
20:1
BCD input
100
BCD output
130
Efficiency (%)
79
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N85
Output speed at 1400 RPM
70
Max output torque (Nm)
294
Max kW input at 1400 rpm
2.7
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description: Clean-Geartech is a renowned manufacturer of high-performance gearboxes designed for demanding industrial environments. Specializing in hygienic and corrosion-resistant transmission solutions, Clean-Geartech delivers durability, precision, and compliance with strict industry standards. Products are particularly suited for sectors such as food and beverage processing, pharmaceuticals, chemical handling, and marine applications.Product Description with Key Features and Applications:
Manufactured entirely in AISI 316L stainless steel, the gear housing ensures exceptional corrosion resistance, making it ideal for aggressive environments and hygienic applications such as food, pharmaceutical, and chemical industries.
Optimized 20:1 gear ratio enables precise torque conversion and efficient speed reduction, enhancing control over process equipment, conveyor systems, and lifting mechanisms.
Designed with a 35 mm stainless steel output shaft, ensuring robustness and compatibility with heavy-duty industrial applications requiring high-output torque and mechanical stability.
Integrated input compatible with 80B14 motor flange makes the unit easy to pair with standardized IEC motors — simplifying installation and minimizing the need for adapter components.
Compact N85 gear size provides maximum performance in limited spaces, supporting efficient machine design with reduced spatial footprint, ideal for plant integration.
High-efficiency worm gear achieves 79% mechanical efficiency, reducing energy consumption and operational costs over continuous operation.
Equipped with a 19 mm input shaft, dimensioned for optimal torque transfer between the motor and the worm gear interface, supporting reliable rotary motion in high-load scenarios.
Stainless steel (SS) hollow shaft construction enhances sanitary design and provides superior mechanical strength, ideal for applications with high cleaning frequency and regulatory requirements.
Suitable for use in washdown environments, saline atmospheres, and areas with exposure to harsh cleaning agents, due to full stainless steel construction.
Durable and precision-engineered design ensures low maintenance demand and long service life, increasing equipment uptime and reliability under challenging industrial conditions. Clean-Geartech’s N85 series worm gearboxes deliver trusted performance, seamless integration, and resilient corrosion resistance for technical specialists seeking reliable power transmission in demanding industrial environments.
Manufactured entirely in AISI 316L stainless steel, the gear housing ensures exceptional corrosion resistance, making it ideal for aggressive environments and hygienic applications such as food, pharmaceutical, and chemical industries.
Optimized 20:1 gear ratio enables precise torque conversion and efficient speed reduction, enhancing control over process equipment, conveyor systems, and lifting mechanisms.
Designed with a 35 mm stainless steel output shaft, ensuring robustness and compatibility with heavy-duty industrial applications requiring high-output torque and mechanical stability.
Integrated input compatible with 80B14 motor flange makes the unit easy to pair with standardized IEC motors — simplifying installation and minimizing the need for adapter components.
Compact N85 gear size provides maximum performance in limited spaces, supporting efficient machine design with reduced spatial footprint, ideal for plant integration.
High-efficiency worm gear achieves 79% mechanical efficiency, reducing energy consumption and operational costs over continuous operation.
Equipped with a 19 mm input shaft, dimensioned for optimal torque transfer between the motor and the worm gear interface, supporting reliable rotary motion in high-load scenarios.
Stainless steel (SS) hollow shaft construction enhances sanitary design and provides superior mechanical strength, ideal for applications with high cleaning frequency and regulatory requirements.
Suitable for use in washdown environments, saline atmospheres, and areas with exposure to harsh cleaning agents, due to full stainless steel construction.
Durable and precision-engineered design ensures low maintenance demand and long service life, increasing equipment uptime and reliability under challenging industrial conditions. Clean-Geartech’s N85 series worm gearboxes deliver trusted performance, seamless integration, and resilient corrosion resistance for technical specialists seeking reliable power transmission in demanding industrial environments.
