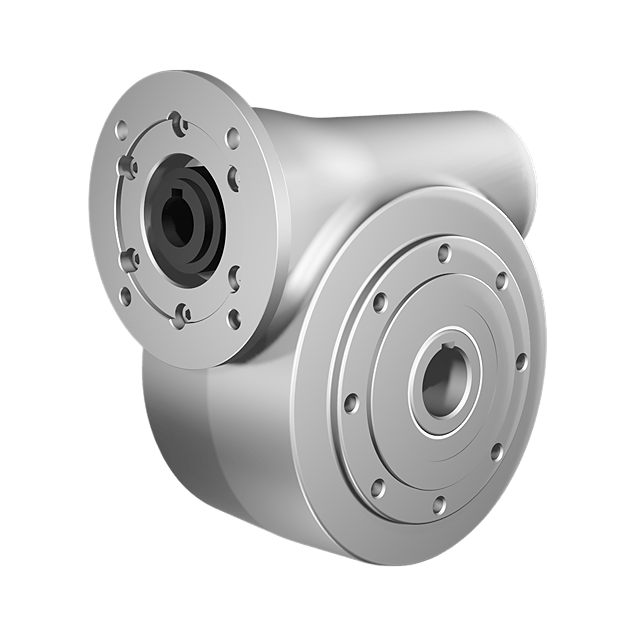

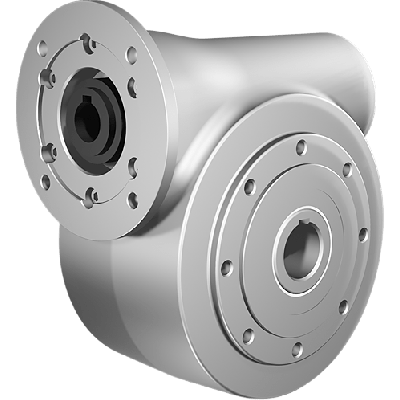

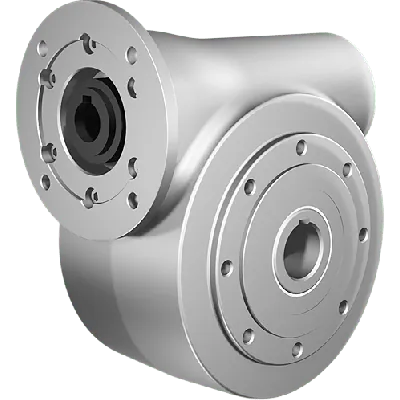

Clean-Geartech N85, worm gear Ø35, 14:1, input 90B14, stainless steel
HV82PN85UNIN030MKINN-TB3-E-OFIt features a gear input shaft diameter of 24 mm and a gear output shaft diameter of 35 mm, with a 14:1 ratio for precise torque conversion. The gear housing and internal components are made of stainless steel AISI 316L, ensuring durability in harsh environments.The unit supports a 90B14 gear motor interface and has a gear size N85. With a BCD input of 115 and BCD output of 130, it integrates efficiently into existing systems. The mechanical efficiency is 78%, optimized for consistent performance.
Specifications
Product description
Downloads
€1,995.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
14:1
BCD input
115
BCD output
130
Efficiency (%)
78
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
N85
Output speed at 1400 RPM
100
Max output torque (Nm)
305
Max kW input at 1400 rpm
4.1
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Background:Clean-Geartech is a specialized manufacturer focusing on high-performance stainless steel transmission components engineered for demanding industrial environments. Their gearboxes are widely recognized for their exceptional hygiene standards, corrosion resistance, and mechanical reliability, making them ideal for applications in the food, pharmaceutical, chemical, and marine industries.Key Features, Benefits, and Industrial Applications:
• Manufactured from AISI 316L stainless steel housing – Offers outstanding corrosion resistance and is ideal for hygienic applications in food processing, chemical manufacturing, and marine environments.
• SS Hollow output shaft (Ø35 mm) – Stainless steel construction ensures long service life and compatibility in aggressive or washdown environments where rust and contamination are concerns.
• Gear ratio 14:1 – Delivers significant torque multiplication, suited for precision speed reduction in automation systems or heavy-duty conveyor installations.
• Compact gear size N85 – Enables the gearbox to fit into limited spaces, ideal for modular machine designs or retrofitting existing systems with space constraints.
• Input interface 90B14 – Provides compatibility with standard IEC motors, allowing for flexible integration across a wide range of motor-driven applications.
• Input shaft diameter of 24 mm – Ensures robust torque transmission and simplifies mechanical integration with various motor sizes and couplings.
• High mechanical efficiency (78%) – Reduces energy loss during operation and lowers total power consumption for energy-sensitive installations.
• Output BCD (Bolt Circle Diameter) of 130 mm and input BCD of 115 mm – Facilitates easy installation and alignment with standard industrial frames and bearing units.
• Ideal for use in industries that demand aseptic design, including pharmaceutical packaging, meat processing machinery, and cleanroom automation systems. The Clean-Geartech N85 Worm Gearbox combines hygienic design with robust engineering, offering optimal performance for engineers requiring reliable torque transmission under harsh conditions while complying with industrial hygiene standards.
• Manufactured from AISI 316L stainless steel housing – Offers outstanding corrosion resistance and is ideal for hygienic applications in food processing, chemical manufacturing, and marine environments.
• SS Hollow output shaft (Ø35 mm) – Stainless steel construction ensures long service life and compatibility in aggressive or washdown environments where rust and contamination are concerns.
• Gear ratio 14:1 – Delivers significant torque multiplication, suited for precision speed reduction in automation systems or heavy-duty conveyor installations.
• Compact gear size N85 – Enables the gearbox to fit into limited spaces, ideal for modular machine designs or retrofitting existing systems with space constraints.
• Input interface 90B14 – Provides compatibility with standard IEC motors, allowing for flexible integration across a wide range of motor-driven applications.
• Input shaft diameter of 24 mm – Ensures robust torque transmission and simplifies mechanical integration with various motor sizes and couplings.
• High mechanical efficiency (78%) – Reduces energy loss during operation and lowers total power consumption for energy-sensitive installations.
• Output BCD (Bolt Circle Diameter) of 130 mm and input BCD of 115 mm – Facilitates easy installation and alignment with standard industrial frames and bearing units.
• Ideal for use in industries that demand aseptic design, including pharmaceutical packaging, meat processing machinery, and cleanroom automation systems. The Clean-Geartech N85 Worm Gearbox combines hygienic design with robust engineering, offering optimal performance for engineers requiring reliable torque transmission under harsh conditions while complying with industrial hygiene standards.
