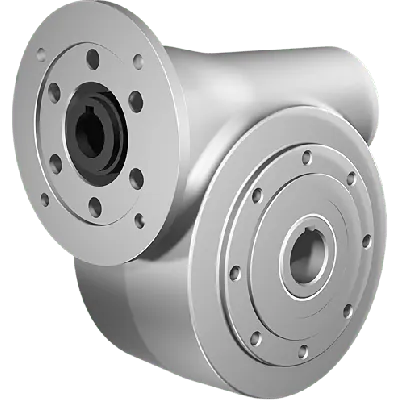

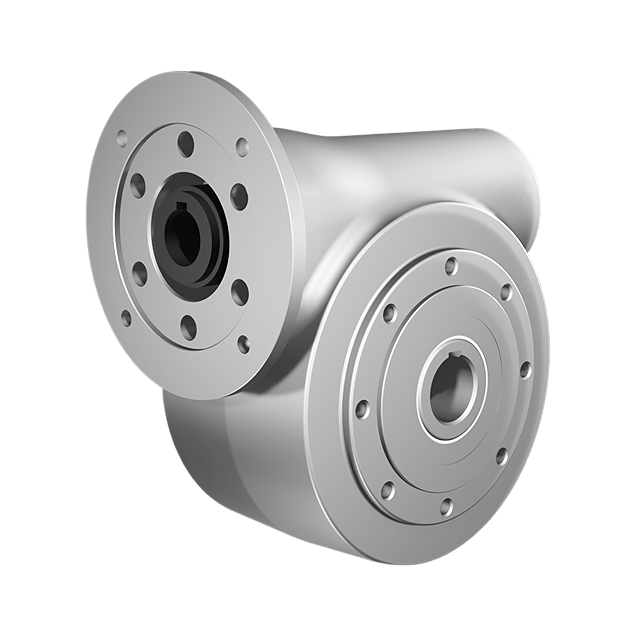

Clean-Geartech N85, worm gear Ø35, 14:1, input 100/112B14, stainless steel
HV82PN85UNIN030MKINN-UB3-F-OFThis unit features a ratio of 14:1 and a gear size N85, enabling efficient torque conversion with a compact footprint. It has a gear input shaft of 28 mm and a gear output shaft of 35 mm, supporting compatibility with standard couplings.The input and output BCD are both 130 mm. The housing and internal gear components are made of stainless steel AISI 316L, increasing chemical resistance and hygiene suitability. The motor interface is 100/112B14, providing standardized motor mounting. The unit delivers an operational efficiency of 78%.
Specifications
Product description
Downloads
€2,019.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
14:1
BCD input
130
BCD output
130
Efficiency (%)
78
Gear output shaft (mm)
35
Gear input shaft (mm)
28
Gear motor interface
100/112B14
Gear size
N85
Output speed at 1400 RPM
100
Max output torque (Nm)
305
Max kW input at 1400 rpm
4.1
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description:Clean-Geartech is a specialized manufacturer known for delivering high-performance gearing solutions with a focus on durability, hygienic design, and industrial reliability. Their product range is particularly well-suited for applications demanding high corrosion resistance and easy maintenance, common in sectors like food processing, pharmaceuticals, marine, and chemical engineering.Key Features, Benefits, and Application Scenarios:
Made entirely from corrosion-resistant AISI 316L stainless steel, the gear housing is ideal for environments where hygiene and chemical resistance are critical — such as food, beverage, and pharmaceutical processing.
The stainless steel Ø35 mm output shaft ensures long-lasting performance and robustness under heavy loads and repeated washdowns, making it suitable for marine, offshore, and washdown-duty applications.
Equipped with a standard 100/112B14 motor interface, enabling seamless integration with a wide range of standard IEC motors — ensuring flexibility across different mechanical installations.
High gear ratio of 14:1 allows for optimized torque multiplication and smooth speed reduction — particularly useful for conveyor systems, mixing equipment, and packaging machinery.
The Ø28 mm input shaft supports efficient torque transfer with minimal backlash, enhancing motion control performance in automated industrial systems.
Efficiency level of 78% ensures energy savings while maintaining high output torque, making it a practical choice for engineers aiming for sustainable and cost-conscious operation.
Compact gear size N85 supports space-constrained installations, particularly in enclosed or modular equipment layouts where every millimeter counts.
Self-draining and crevice-free design conforms to hygienic standards (EHEDG-like), reducing the risk of bacterial accumulation — crucial for clean-room and pharmaceutical-grade environments.
Its robust construction and precise gearing make it suitable for continuous operation in demanding mechanical drive systems across food tech, bioengineering, and wastewater handling facilities.
Made entirely from corrosion-resistant AISI 316L stainless steel, the gear housing is ideal for environments where hygiene and chemical resistance are critical — such as food, beverage, and pharmaceutical processing.
The stainless steel Ø35 mm output shaft ensures long-lasting performance and robustness under heavy loads and repeated washdowns, making it suitable for marine, offshore, and washdown-duty applications.
Equipped with a standard 100/112B14 motor interface, enabling seamless integration with a wide range of standard IEC motors — ensuring flexibility across different mechanical installations.
High gear ratio of 14:1 allows for optimized torque multiplication and smooth speed reduction — particularly useful for conveyor systems, mixing equipment, and packaging machinery.
The Ø28 mm input shaft supports efficient torque transfer with minimal backlash, enhancing motion control performance in automated industrial systems.
Efficiency level of 78% ensures energy savings while maintaining high output torque, making it a practical choice for engineers aiming for sustainable and cost-conscious operation.
Compact gear size N85 supports space-constrained installations, particularly in enclosed or modular equipment layouts where every millimeter counts.
Self-draining and crevice-free design conforms to hygienic standards (EHEDG-like), reducing the risk of bacterial accumulation — crucial for clean-room and pharmaceutical-grade environments.
Its robust construction and precise gearing make it suitable for continuous operation in demanding mechanical drive systems across food tech, bioengineering, and wastewater handling facilities.
