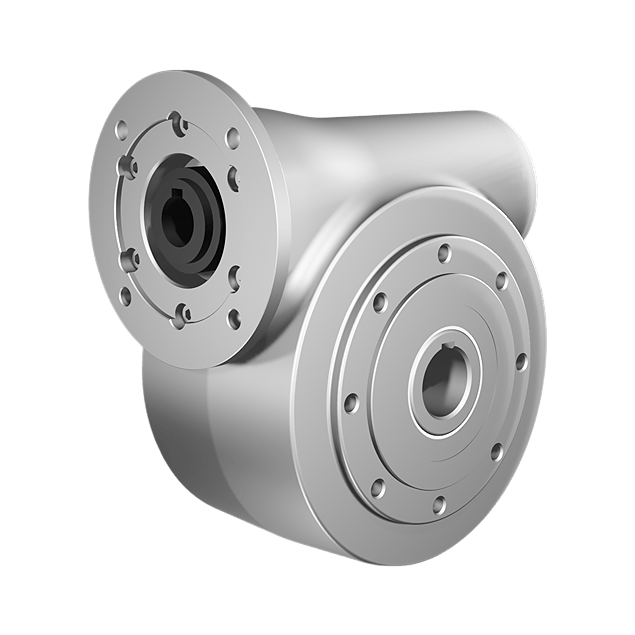

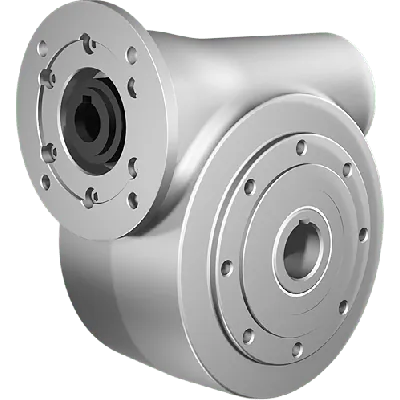

Clean-Geartech N85, worm gear Ø35, 10:1, input 90B14, stainless steel
HV82PN85UNIN020MKINN-TB3-E-OFDesigned for compatibility, it features a 90B14 gear motor interface and a gear input shaft diameter of 24 mm. The output shaft diameter is 35 mm, supporting typical industrial loads. With a gear size of N85 and a fixed ratio of 10:1, it ensures consistent speed reduction. The gear material is stainless steel AISI 316L, making it suitable for corrosive settings. It delivers a mechanical efficiency of 80% and supports a BCD input of 115 mm and a BCD output of 130 mm. Designed with a stainless steel output shaft, this unit meets hygiene and durability requirements in process industries.
Specifications
Product description
Downloads
€1,995.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
10:1
BCD input
115
BCD output
130
Efficiency (%)
80
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
N85
Output speed at 1400 RPM
140
Max output torque (Nm)
284
Max kW input at 1400 rpm
5.2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description: Clean-Geartech is a reputable manufacturer specializing in hygienic stainless-steel gear solutions tailored for demanding industrial applications. Designed to meet the strictest sanitation and durability standards, Clean-Geartech gear systems are widely used in industries such as food processing, pharmaceuticals, and chemical engineering, where cleanliness, corrosion resistance, and robust performance are crucial.Key Features, Functional Advantages, and Application Possibilities:
Constructed from stainless steel AISI 316L — provides exceptional corrosion resistance, ideal for aggressive environments such as chemical processing or marine installations.
Worm gear configuration with gear ratio 10:1 — enables high torque transmission at lower rotational speeds, suitable for conveyors, mixers, and dosing systems.
Output shaft Ø35 mm in stainless steel (SS) — ensures durability and hygiene in direct contact applications, such as food-grade filling lines or pharmaceutical rotary tables.
Input shaft Ø24 mm — standardized for compatibility with a wide range of servo and induction motor configurations in industrial automation systems.
Gear motor interface 90B14 — supports simple and modular integration with IEC-compliant motors, reducing installation time and improving design flexibility.
BCD input: 115 mm / BCD output: 130 mm — provides compatibility with standardized mounting footprints, facilitating interchangeability during system upgrades or retrofits.
High efficiency at 80% — decreases energy costs and reduces heat generation, essential in temperature-sensitive environments such as cleanroom operations.
Gear size N85 — delivers a compact footprint while maintaining high mechanical load capacity, ideal for confined installations without compromising on performance.
Hygienic, enclosed design — minimizes contamination risk, making it a reliable choice for use in CIP (Clean-In-Place) or SIP (Sterilization-In-Place) systems.
Optimized for vertical and horizontal mounting — supports versatile integration in process lines and automated production cells.With its 316L stainless steel housing, reliable worm gear performance, and optimized mechanical interface, the Clean-Geartech N85 is engineered for industrial specialists who require uncompromised hygiene, durability, and transmission performance in mission-critical systems.
Constructed from stainless steel AISI 316L — provides exceptional corrosion resistance, ideal for aggressive environments such as chemical processing or marine installations.
Worm gear configuration with gear ratio 10:1 — enables high torque transmission at lower rotational speeds, suitable for conveyors, mixers, and dosing systems.
Output shaft Ø35 mm in stainless steel (SS) — ensures durability and hygiene in direct contact applications, such as food-grade filling lines or pharmaceutical rotary tables.
Input shaft Ø24 mm — standardized for compatibility with a wide range of servo and induction motor configurations in industrial automation systems.
Gear motor interface 90B14 — supports simple and modular integration with IEC-compliant motors, reducing installation time and improving design flexibility.
BCD input: 115 mm / BCD output: 130 mm — provides compatibility with standardized mounting footprints, facilitating interchangeability during system upgrades or retrofits.
High efficiency at 80% — decreases energy costs and reduces heat generation, essential in temperature-sensitive environments such as cleanroom operations.
Gear size N85 — delivers a compact footprint while maintaining high mechanical load capacity, ideal for confined installations without compromising on performance.
Hygienic, enclosed design — minimizes contamination risk, making it a reliable choice for use in CIP (Clean-In-Place) or SIP (Sterilization-In-Place) systems.
Optimized for vertical and horizontal mounting — supports versatile integration in process lines and automated production cells.With its 316L stainless steel housing, reliable worm gear performance, and optimized mechanical interface, the Clean-Geartech N85 is engineered for industrial specialists who require uncompromised hygiene, durability, and transmission performance in mission-critical systems.
