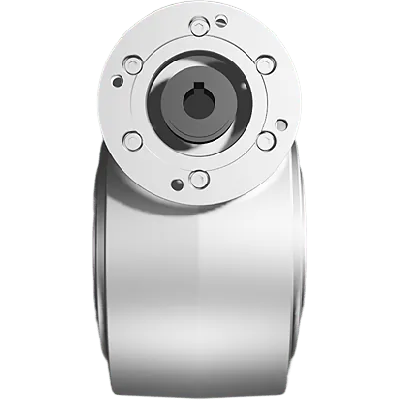

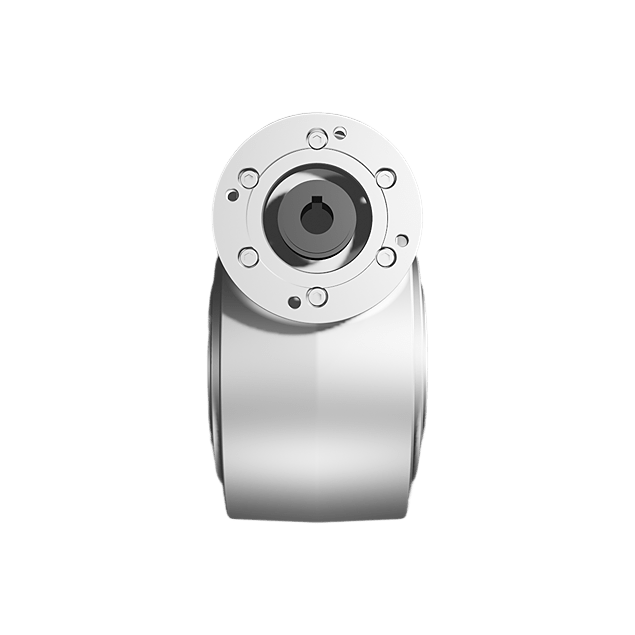

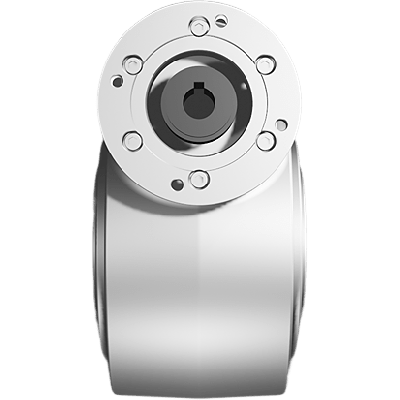

Clean-Geartech N85, worm gear Ø35, 10:1, input 80B14, stainless steel
HV82PN85UNIN020MKINN-RB3-D-OFThe Clean-Geartech N85, worm gearbox Ø35, 10:1, input 80B14, stainless steel is designed for demanding environments where durability and hygiene are critical. It features a gear size: N85 and a gear ratio of 10:1, providing effective torque conversion. The gear output shaft is 35 mm in diameter, while the input shaft measures 19 mm. With a standard gear motor interface: 80B14 and an efficiency of 80%, it meets industrial performance requirements. The gear material is stainless steel AISI 316L, suitable for corrosive environments. The unit includes a BCD input of 100 and a BCD output of 130 for compatibility in assembly.
Specifications
Product description
Downloads
€1,991.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
10:1
BCD input
100
BCD output
130
Efficiency (%)
80
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N85
Output speed at 1400 RPM
140
Max output torque (Nm)
284
Max kW input at 1400 rpm
5.2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Information: Clean-Geartech specializes in the development and manufacturing of high-performance gear solutions for demanding industrial environments. Renowned for their durability, corrosion resistance, and hygienic design, Clean-Geartech units are trusted by technical specialists and engineers across food processing, pharmaceutical, marine, and chemical industries. Their products meet strict operational and sanitation requirements, particularly in environments where hygiene and resistance to aggressive cleaning agents are essential.Key Features, Technical Advantages, and Application Possibilities:
High-Grade Stainless Steel AISI 316L Construction: Ensures maximum corrosion resistance, ideal for hygienically sensitive areas such as food & beverage production and pharmaceutical industries.
Robust Ø35 mm Stainless Steel Hollow Output Shaft: Provides high torque transmission while withstanding contamination, moisture, and aggressive sanitizers—suitable for washdown zones and CIP/SIP processes.
Worm Gear Ratio 10:1: Offers precise torque control and speed reduction, beneficial in applications where accurate motion control or positional holding under load is required—ideal for conveyors, dosing machinery, and packaging systems.
Integrated Gear Motor Interface 80B14: Ensures standardized motor coupling for fast integration with IEC motors, reducing installation and maintenance downtime.
Compact Size N85: Designed for space-constrained applications without compromising performance; common in automated lines, robotics, and compact processing units.
Input Shaft Ø19 mm: Compatible with a wide range of motor couplings and mechanical linkages—enhances integration flexibility into both new and retrofit systems.
High Efficiency (80%): Reduces operational energy consumption while maintaining required torque output—optimal for continuous process applications aiming to lower energy costs.
Resistant to Harsh Chemicals and Mechanical Wear: Withstands frequent exposure to acids, alkalis, and high-pressure cleaning—extends product life in marine or bio-industrial settings.
Ideal for Use in: Food and beverage processing lines, cleanroom automation, pharmaceutical filling systems, marine handling equipment, chemical mixers, and waste treatment facilities. Total character count: Approx. 1,700 (within limit)
High-Grade Stainless Steel AISI 316L Construction: Ensures maximum corrosion resistance, ideal for hygienically sensitive areas such as food & beverage production and pharmaceutical industries.
Robust Ø35 mm Stainless Steel Hollow Output Shaft: Provides high torque transmission while withstanding contamination, moisture, and aggressive sanitizers—suitable for washdown zones and CIP/SIP processes.
Worm Gear Ratio 10:1: Offers precise torque control and speed reduction, beneficial in applications where accurate motion control or positional holding under load is required—ideal for conveyors, dosing machinery, and packaging systems.
Integrated Gear Motor Interface 80B14: Ensures standardized motor coupling for fast integration with IEC motors, reducing installation and maintenance downtime.
Compact Size N85: Designed for space-constrained applications without compromising performance; common in automated lines, robotics, and compact processing units.
Input Shaft Ø19 mm: Compatible with a wide range of motor couplings and mechanical linkages—enhances integration flexibility into both new and retrofit systems.
High Efficiency (80%): Reduces operational energy consumption while maintaining required torque output—optimal for continuous process applications aiming to lower energy costs.
Resistant to Harsh Chemicals and Mechanical Wear: Withstands frequent exposure to acids, alkalis, and high-pressure cleaning—extends product life in marine or bio-industrial settings.
Ideal for Use in: Food and beverage processing lines, cleanroom automation, pharmaceutical filling systems, marine handling equipment, chemical mixers, and waste treatment facilities. Total character count: Approx. 1,700 (within limit)
