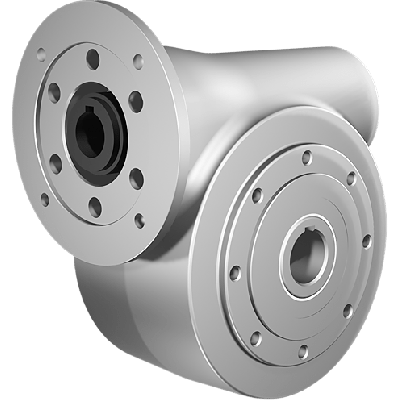

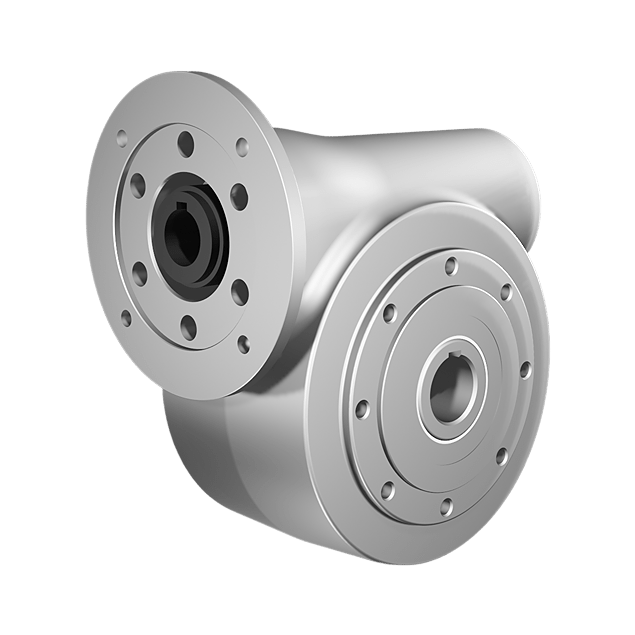

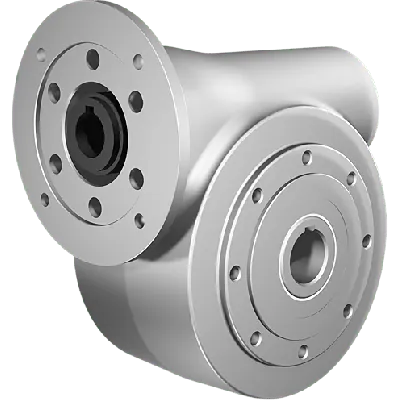

Clean-Geartech N85, worm gear Ø35, 10:1, input 100/112B14, stainless steel
HV82PN85UNIN020MKINN-UB3-F-OFIt features a gear ratio of 10:1 and a gear output shaft diameter of 35 mm. The gear input shaft measures 28 mm, with a standardized motor interface of 100/112B14. The unit is constructed with AISI 316L stainless steel gears and a gear size N85, providing durability in demanding applications. Both the input and output BCD are 130 mm. The worm gear offers an efficiency of 80%, suitable for food processing, chemical, or marine industries requiring minimal maintenance and corrosion resistance.
Specifications
Product description
Downloads
€2,019.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
10:1
BCD input
130
BCD output
130
Efficiency (%)
80
Gear output shaft (mm)
35
Gear input shaft (mm)
28
Gear motor interface
100/112B14
Gear size
N85
Output speed at 1400 RPM
140
Max output torque (Nm)
284
Max kW input at 1400 rpm
5.2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a leading European manufacturer specializing in developing high-performance stainless steel gearboxes designed for food, pharmaceutical, biotechnology, and chemical processing industries. Their gear systems are built to meet the most demanding hygienic and corrosive environments, offering optimal reliability, durability, and ease of cleaning while maintaining technical precision.Key Features and Application Benefits:
• Stainless Steel Housing (AISI 316L): Offers outstanding corrosion resistance, ideal for aggressive washdown environments in the food, beverage, and pharmaceutical sectors. Perfect for applications requiring strict hygienic standards.
• Stainless Steel Hollow Output Shaft Ø35 mm: Provides superior resistance to harsh chemicals and moisture. Ideal for high-humidity environments or aggressive cleaning processes common in hygienic production facilities.
• Gear Ratio 10:1: Optimized for applications requiring torque multiplication and speed reduction. Suitable for heavy-duty conveying, dosing, or lifting operations in process automation.
• Gear Motor Interface 100/112B14: Compatible with standard IEC motors, allowing flexible integration into existing setups and modular machine designs.
• Input Shaft Ø28 mm: Enables stable power transmission with low backlash, ensuring high positioning accuracy in machines such as sorting systems, mixers, or precision filling stations.
• High Efficiency (80%): Ensures energy efficiency and reduced operational costs in continuous industrial processes, minimizing heat generation and maintenance intervals.
• Compact Gear Size N85: Delivers high torque in a compact footprint, making it ideal for space-constrained industrial environments while still capable of handling tough workloads. Application Possibilities:
• Hygienic conveyor lines in food or dairy processing
• Automated pharmaceutical packaging and mixing systems
• Corrosive chemical dosing stations
• High-pressure washdown environments
• Cleanroom automation in semiconductor or biotechnology production Engineered for robust performance and hygienic compliance, the Clean-Geartech N85 stainless steel worm gear unit is a premium solution for demanding industrial applications requiring both power and purity.
• Stainless Steel Housing (AISI 316L): Offers outstanding corrosion resistance, ideal for aggressive washdown environments in the food, beverage, and pharmaceutical sectors. Perfect for applications requiring strict hygienic standards.
• Stainless Steel Hollow Output Shaft Ø35 mm: Provides superior resistance to harsh chemicals and moisture. Ideal for high-humidity environments or aggressive cleaning processes common in hygienic production facilities.
• Gear Ratio 10:1: Optimized for applications requiring torque multiplication and speed reduction. Suitable for heavy-duty conveying, dosing, or lifting operations in process automation.
• Gear Motor Interface 100/112B14: Compatible with standard IEC motors, allowing flexible integration into existing setups and modular machine designs.
• Input Shaft Ø28 mm: Enables stable power transmission with low backlash, ensuring high positioning accuracy in machines such as sorting systems, mixers, or precision filling stations.
• High Efficiency (80%): Ensures energy efficiency and reduced operational costs in continuous industrial processes, minimizing heat generation and maintenance intervals.
• Compact Gear Size N85: Delivers high torque in a compact footprint, making it ideal for space-constrained industrial environments while still capable of handling tough workloads. Application Possibilities:
• Hygienic conveyor lines in food or dairy processing
• Automated pharmaceutical packaging and mixing systems
• Corrosive chemical dosing stations
• High-pressure washdown environments
• Cleanroom automation in semiconductor or biotechnology production Engineered for robust performance and hygienic compliance, the Clean-Geartech N85 stainless steel worm gear unit is a premium solution for demanding industrial applications requiring both power and purity.
