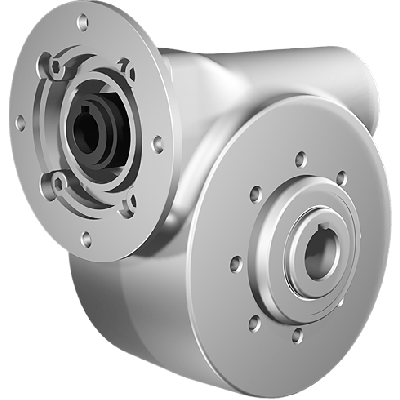

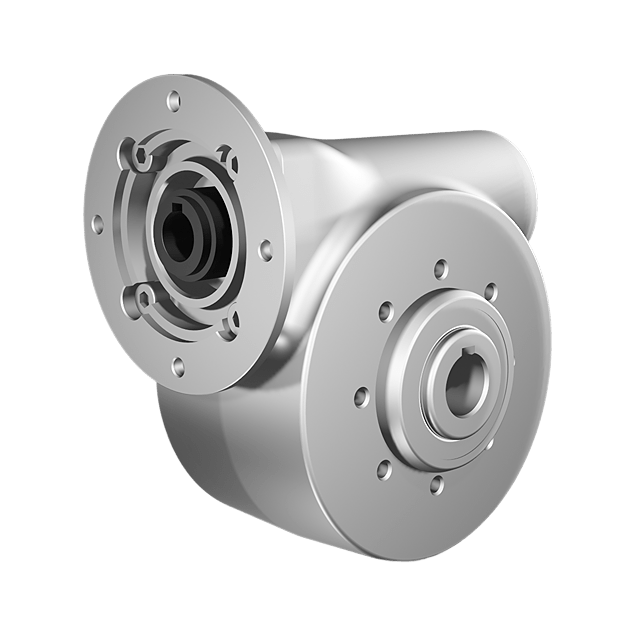

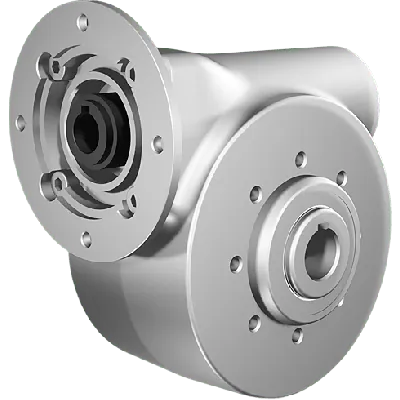

Clean-Geartech N63, worm gear Ø25, 94:1, input 80B14, stainless steel
HV82PN63UNIN110MFINN-RB3-D-OFThe Clean-Geartech N63, worm gearbox Ø25, 94:1, input 80B14, stainless steel is designed for industrial applications requiring corrosion resistance and compact transmission. It features a gear ratio of 94:1 and a gear size N63, suitable for precise speed reduction needs. The input shaft diameter is 19 mm and the output shaft diameter is 25 mm, ensuring compatibility with a range of components. The unit delivers an efficiency of 52%. With its 80B14 gear motor interface and stainless steel AISI 316L gear material, it offers durability in demanding environments. The BCD input is 100 mm, and the BCD output is 90 mm for standardized mounting.
Specifications
Product description
Downloads
€1,120.00
Made to order
Expected shipment:
Loading...
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
94:1
BCD input
100
BCD output
90
Efficiency (%)
52
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N63
Output speed at 1400 RPM
14.9
Max output torque (Nm)
119
Max kW input at 1400 rpm
0.36
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a renowned manufacturer specializing in high-quality stainless steel gearboxes designed for demanding industrial environments where hygiene, corrosion resistance, and durability are critical. Their gear solutions are trusted by engineers and technical professionals across industries including food processing, pharmaceuticals, chemicals, and offshore applications.Product: Clean-Geartech N63 Worm Gearbox Ø25, 94:1, Input 80B14, Stainless SteelKey Features and Application Benefits:
• Full housing made of corrosion-proof stainless steel AISI 316L – ideal for applications requiring superior hygiene such as food & beverage, pharmaceutical, or marine industries.
• Gear ratio of 94:1 provides substantial torque multiplication – well-suited for low-speed, high-torque applications, such as conveyors and process equipment.
• Output shaft diameter of 25 mm made of stainless steel – delivers reliable power transmission in corrosive or washdown-prone environments.
• Input shaft diameter of 19 mm – compatible with standard motor couplings, enhancing system integration and retrofitting capability.
• B14 motor flange interface (size 80) – provides easy mounting compatibility with IEC-standard motors, reducing installation complexity.
• Compact form factor (Gearbox size N63) – allows installation in space-constrained systems such as OEM machines and compact automation units.
• Efficiency rated at 52% due to worm gear design – optimized for intermittent or non-continuous duty cycles where space and hygiene take priority over maximum efficiency.
• Suitable for vertical and horizontal mounting positions – offers design flexibility in systems layout and equipment orientation.
• Designed for Clean-in-Place (CIP) and aggressive washdown regimes – meets high hygiene standards demanded in regulated industries.
• Proven reliability under harsh environmental exposure including salt spray and aggressive cleaning agents – reduces downtime and maintenance in critical uptime systems. This Clean-Geartech N63 stainless steel worm gearbox offers engineers and industrial designers a compact, robust, and hygienic solution for torque conversion in challenging environments. Its versatile configuration and corrosion-resistant materials make it a cornerstone component for clean-critical and industrial-grade applications.
• Full housing made of corrosion-proof stainless steel AISI 316L – ideal for applications requiring superior hygiene such as food & beverage, pharmaceutical, or marine industries.
• Gear ratio of 94:1 provides substantial torque multiplication – well-suited for low-speed, high-torque applications, such as conveyors and process equipment.
• Output shaft diameter of 25 mm made of stainless steel – delivers reliable power transmission in corrosive or washdown-prone environments.
• Input shaft diameter of 19 mm – compatible with standard motor couplings, enhancing system integration and retrofitting capability.
• B14 motor flange interface (size 80) – provides easy mounting compatibility with IEC-standard motors, reducing installation complexity.
• Compact form factor (Gearbox size N63) – allows installation in space-constrained systems such as OEM machines and compact automation units.
• Efficiency rated at 52% due to worm gear design – optimized for intermittent or non-continuous duty cycles where space and hygiene take priority over maximum efficiency.
• Suitable for vertical and horizontal mounting positions – offers design flexibility in systems layout and equipment orientation.
• Designed for Clean-in-Place (CIP) and aggressive washdown regimes – meets high hygiene standards demanded in regulated industries.
• Proven reliability under harsh environmental exposure including salt spray and aggressive cleaning agents – reduces downtime and maintenance in critical uptime systems. This Clean-Geartech N63 stainless steel worm gearbox offers engineers and industrial designers a compact, robust, and hygienic solution for torque conversion in challenging environments. Its versatile configuration and corrosion-resistant materials make it a cornerstone component for clean-critical and industrial-grade applications.
