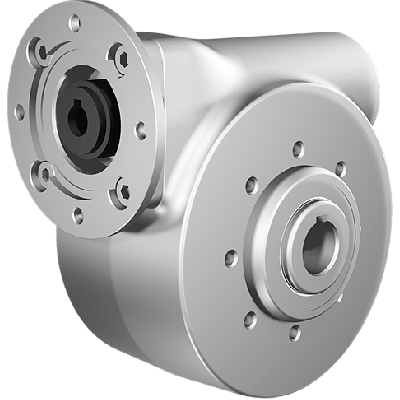

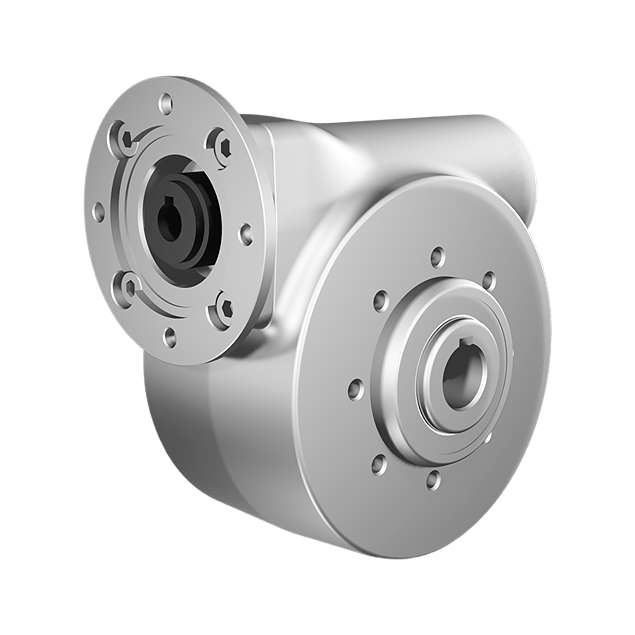

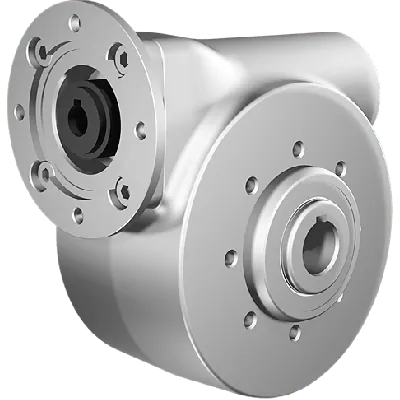

Clean-Geartech N63, worm gear Ø25, 94:1, input 71B14, stainless steel
HV82PN63UNIN110MFINN-QB3-C-OFThis unit features a gear ratio of 94:1 and a gear size of N63, making it suitable for torque-heavy applications. The input interface is 71B14 with a 14 mm input shaft and a 25 mm output shaft. The gear unit is made with stainless steel AISI 316L, ensuring high corrosion resistance. It offers a BCD input of 85 mm and a BCD output of 90 mm, supporting standard mounting configurations. The unit delivers a mechanical efficiency of 52%, optimized for screw gear configurations.
Specifications
Product description
Downloads
€1,114.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
94:1
BCD input
85
BCD output
90
Efficiency (%)
52
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N63
Output speed at 1400 RPM
14.9
Max output torque (Nm)
119
Max kW input at 1400 rpm
0.36
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Overview:Clean-Geartech is a renowned manufacturer specializing in hygienic, robust, and highly corrosion-resistant gear solutions specifically developed for demanding industrial environments. Their product range is tailored for sectors with strict hygiene and durability standards, such as food processing, pharmaceuticals, chemical production, and offshore engineering. Leveraging state-of-the-art manufacturing practices and premium materials, Clean-Geartech ensures long-term operational reliability and compliance with industry regulations.Key Features, Benefits, and Application Possibilities:
Constructed from AISI 316L stainless steel for the housing and critical components — offering superior corrosion resistance in aggressive environments such as food production, chemical plants, or marine applications.
High gear ratio of 94:1 — suitable for applications requiring significant torque multiplication while maintaining compact drive configuration, ideal for conveyor systems, dosing equipment, or mixers.
Output shaft diameter of Ø25 mm in stainless steel — designed for robust mechanical coupling with excellent resistance to wear, suited for frequent washdowns or abrasive conditions.
Input shaft of Ø14 mm — compatible with standard motor configurations and offering flexible integration in custom drive assemblies.
Worm gear configuration — ensures smooth, vibration-free operation and reliable torque delivery at low speeds, supporting precision control in automated industrial systems.
Motor interface 71B14 — standardized to support seamless connection with a wide range of IEC motors, reducing integration effort and inventory complexity.
Efficient space utilization with compact Gear size N63 — simplifies installation in constrained environments such as packaging lines or mobile processing units.
Moderate efficiency level of 52% — suitable for scenarios where torque control and mechanical strength outweigh energy loss considerations.
BCD (Bolt Circle Diameter) input/output: 85/90 mm — allows secure mechanical mounting and compatibility with a broad range of couplings and flanges.
Constructed from AISI 316L stainless steel for the housing and critical components — offering superior corrosion resistance in aggressive environments such as food production, chemical plants, or marine applications.
High gear ratio of 94:1 — suitable for applications requiring significant torque multiplication while maintaining compact drive configuration, ideal for conveyor systems, dosing equipment, or mixers.
Output shaft diameter of Ø25 mm in stainless steel — designed for robust mechanical coupling with excellent resistance to wear, suited for frequent washdowns or abrasive conditions.
Input shaft of Ø14 mm — compatible with standard motor configurations and offering flexible integration in custom drive assemblies.
Worm gear configuration — ensures smooth, vibration-free operation and reliable torque delivery at low speeds, supporting precision control in automated industrial systems.
Motor interface 71B14 — standardized to support seamless connection with a wide range of IEC motors, reducing integration effort and inventory complexity.
Efficient space utilization with compact Gear size N63 — simplifies installation in constrained environments such as packaging lines or mobile processing units.
Moderate efficiency level of 52% — suitable for scenarios where torque control and mechanical strength outweigh energy loss considerations.
BCD (Bolt Circle Diameter) input/output: 85/90 mm — allows secure mechanical mounting and compatibility with a broad range of couplings and flanges.
