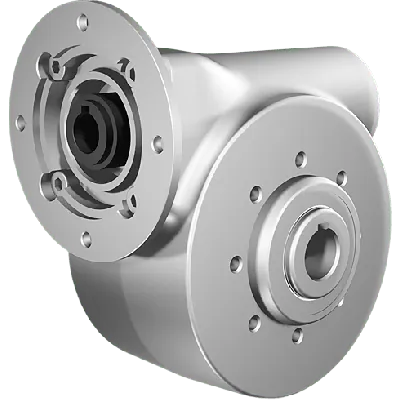

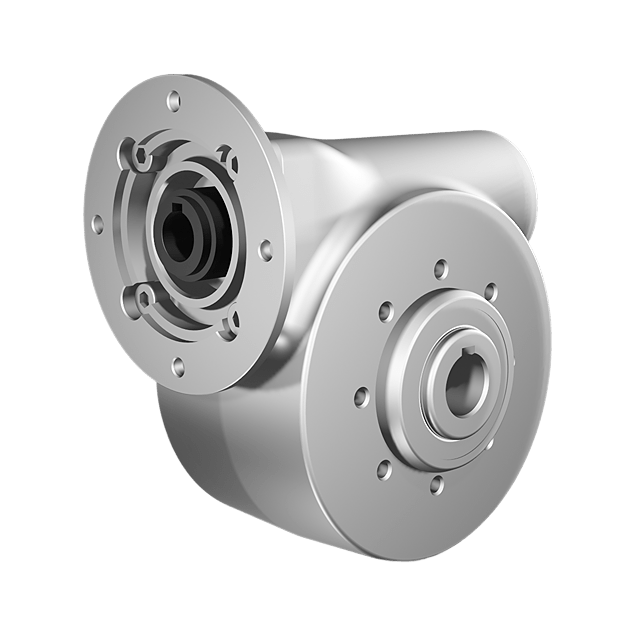

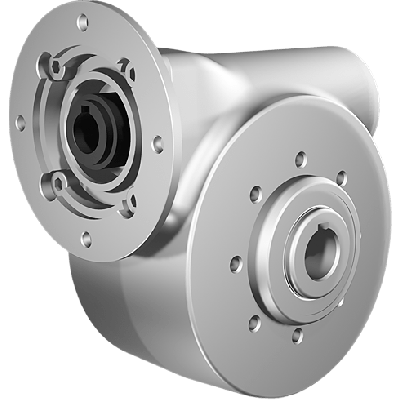

Clean-Geartech N63, worm gear Ø25, 80:1, input 80B14, stainless steel
HV82PN63UNIN100MFINN-RB3-D-OFIt features a gear size: N63 and a ratio of 80:1, providing reliable torque conversion. The gear input shaft diameter: 19 mm and gear output shaft diameter: 25 mm support stable mechanical coupling. Constructed with gear material: stainless steel AISI 316L and a stainless steel hollow shaft, it provides durability in aggressive environments. The gear motor interface: 80B14 ensures system compatibility.With a BCD input of 100 and BCD output of 90, and an efficiency of 57%, this gearbox combines standardization with robust operational performance.
Specifications
Product description
Downloads
€1,120.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
80:1
BCD input
100
BCD output
90
Efficiency (%)
57
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N63
Output speed at 1400 RPM
17.5
Max output torque (Nm)
119
Max kW input at 1400 rpm
0.38
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a trusted European manufacturer specializing in high-performance stainless steel gear solutions. With precision engineering and a focus on hygiene and durability, Clean-Geartech products are ideally suited for demanding industrial environments. Their gearboxes are widely used within food processing, pharmaceutical production, chemical industries, and marine applications, where cleanliness, corrosion resistance, and reliability are mission-critical.Key Features, Functional Benefits, and Application Possibilities:
Corrosion-Resistant Gear Housing (AISI 316L Stainless Steel) – The entire enclosure is made of high-grade AISI 316L stainless steel, ensuring high resistance to harsh chemicals, saltwater, and cleaning agents — ideal for hygienic and washdown environments such as food & beverage, pharmaceutical, and offshore installations.
Input Interface: IEC 80B14 Mounting – Compatible with IEC standard motors, allowing for straightforward integration into existing industrial systems and motor configurations — enabling flexibility and modular design in OEM setups.
High Torque Transmission with 80:1 Ratio – The 80:1 reduction ratio enables significant torque multiplication, suitable for applications requiring strong mechanical advantage such as conveyor systems, packaging equipment, and mixing machinery.
25 mm Output Shaft (Stainless Steel) – Durable Ø25 mm solid output shaft made of stainless steel optimizes mechanical performance under load while providing exceptional resistance to mechanical wear and environmental conditions.
Compact Design (Gear Size N63) – Small form factor enables installation in space-constrained environments, contributing to machine layout optimization and efficient factory floor utilization.
Enhanced Shaft Connectivity – Includes a 19 mm input shaft dimension, compatible with various motor couplings and alignment adapters — supporting versatile drive configurations.
Moderate Efficiency (57%) – Balanced for reliability and low maintenance, suitable for intermittent and continuous operation where compact design and corrosion resistance take priority over peak efficiency.With its robust stainless steel construction and standardized mechanical interfaces, the Clean-Geartech N63 Worm Gear delivers reliable power transmission in critically clean or corrosive environments — an essential component for engineers designing machinery for high-integrity industrial systems.
Corrosion-Resistant Gear Housing (AISI 316L Stainless Steel) – The entire enclosure is made of high-grade AISI 316L stainless steel, ensuring high resistance to harsh chemicals, saltwater, and cleaning agents — ideal for hygienic and washdown environments such as food & beverage, pharmaceutical, and offshore installations.
Input Interface: IEC 80B14 Mounting – Compatible with IEC standard motors, allowing for straightforward integration into existing industrial systems and motor configurations — enabling flexibility and modular design in OEM setups.
High Torque Transmission with 80:1 Ratio – The 80:1 reduction ratio enables significant torque multiplication, suitable for applications requiring strong mechanical advantage such as conveyor systems, packaging equipment, and mixing machinery.
25 mm Output Shaft (Stainless Steel) – Durable Ø25 mm solid output shaft made of stainless steel optimizes mechanical performance under load while providing exceptional resistance to mechanical wear and environmental conditions.
Compact Design (Gear Size N63) – Small form factor enables installation in space-constrained environments, contributing to machine layout optimization and efficient factory floor utilization.
Enhanced Shaft Connectivity – Includes a 19 mm input shaft dimension, compatible with various motor couplings and alignment adapters — supporting versatile drive configurations.
Moderate Efficiency (57%) – Balanced for reliability and low maintenance, suitable for intermittent and continuous operation where compact design and corrosion resistance take priority over peak efficiency.With its robust stainless steel construction and standardized mechanical interfaces, the Clean-Geartech N63 Worm Gear delivers reliable power transmission in critically clean or corrosive environments — an essential component for engineers designing machinery for high-integrity industrial systems.
