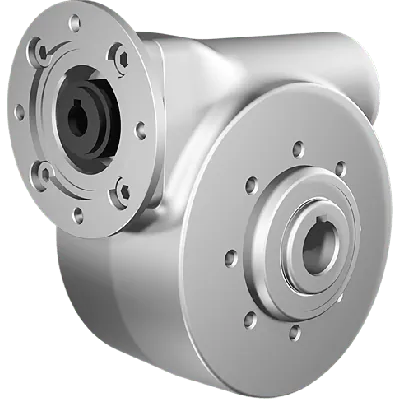

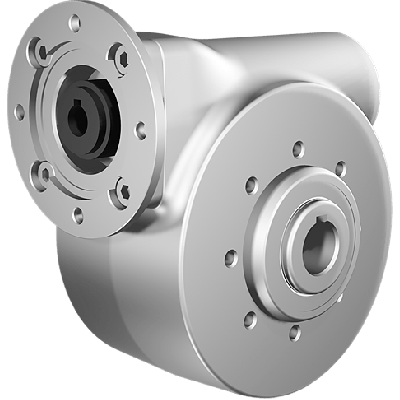

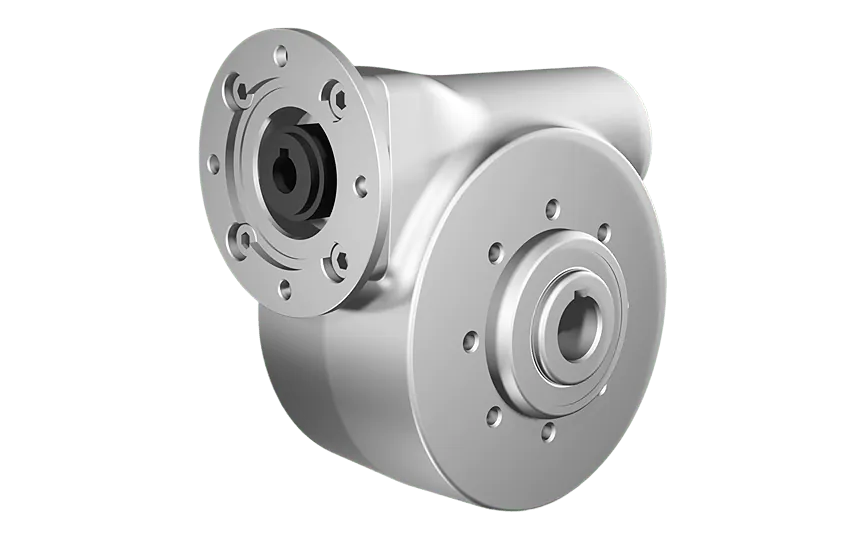

Clean-Geartech N63, worm gear Ø25, 80:1, input 71B14, stainless steel
HV82PN63UNIN100MFINN-QB3-C-OFIt features a gear ratio of 80:1 and a gear size N63, providing optimized torque for low-speed output. The gear output shaft diameter is 25 mm while the gear input shaft measures 14 mm. The gearbox is equipped with a 71B14 motor interface and offers a mechanical efficiency of 57% under specified conditions.All internal gears are made from stainless steel AISI 316L, offering high corrosion resistance for use in hygienic or aggressive environments. The unit comes with a stainless steel hollow shaft for durability and performance in cleanroom or food-grade settings.
Specifications
Product description
Downloads
€1,114.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
80:1
BCD input
85
BCD output
90
Efficiency (%)
57
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N63
Output speed at 1400 RPM
17.5
Max output torque (Nm)
119
Max kW input at 1400 rpm
0.38
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a specialized manufacturer of hygienic-grade gear solutions, renowned for producing corrosion-resistant and maintenance-friendly gear units tailored for demanding industrial environments. Their products are engineered for optimal performance within food processing, chemical, and pharmaceutical industries, where cleanability, robustness, and durability are critical. Clean-Geartech emphasizes stainless steel construction and high design quality to meet stringent hygiene and operational standards.Product Name: Clean-Geartech N63 Worm Gear, Ø25 Output Shaft, 80:1 Ratio, Input 71B14, Stainless SteelProduct Description with Key Features and Application Benefits:
Constructed entirely from corrosion-resistant stainless steel AISI 316L, ensuring outstanding resistance against aggressive cleaning agents, high humidity, and corrosive environments such as food & beverage or pharmaceutical processing.
Equipped with a stainless steel Ø25 mm hollow output shaft, offering robust torque transmission and compatibility in sanitary automation systems where hygiene and durability are paramount.
Features a compact N63 gear size design, making it ideal for integration in space-constrained environments without compromising mechanical strength or reliability.
The gear motor interface 71B14 supports seamless mounting to standard IEC B14 motors, facilitating quick installation and flexibility in design layout within OEM systems.
Delivers a gear ratio of 80:1, enabling high torque output at low rotational speeds, which is optimal for applications such as conveyor systems, agitators, and automated packaging lines.
Input shaft diameter of Ø14 mm ensures compatibility with standard drive components and simplifies integration with motorized drive assemblies.
Efficiency rated at 57%, which is advantageous in applications with intermittent duty cycles where torque output takes priority over energy efficiency.
All external components are free of paint and coatings, minimizing flaking risks and ensuring compliance with food safety and cleanroom requirements.
An ideal solution for industries with strict sanitary standards, including dairy, meat processing, chemical dosing systems, bottling lines, and cleanroom conveyors.This Clean-Geartech stainless steel worm gearbox is engineered for reliability, hygiene, and longevity — delivering confidence in critical motion control systems.
Constructed entirely from corrosion-resistant stainless steel AISI 316L, ensuring outstanding resistance against aggressive cleaning agents, high humidity, and corrosive environments such as food & beverage or pharmaceutical processing.
Equipped with a stainless steel Ø25 mm hollow output shaft, offering robust torque transmission and compatibility in sanitary automation systems where hygiene and durability are paramount.
Features a compact N63 gear size design, making it ideal for integration in space-constrained environments without compromising mechanical strength or reliability.
The gear motor interface 71B14 supports seamless mounting to standard IEC B14 motors, facilitating quick installation and flexibility in design layout within OEM systems.
Delivers a gear ratio of 80:1, enabling high torque output at low rotational speeds, which is optimal for applications such as conveyor systems, agitators, and automated packaging lines.
Input shaft diameter of Ø14 mm ensures compatibility with standard drive components and simplifies integration with motorized drive assemblies.
Efficiency rated at 57%, which is advantageous in applications with intermittent duty cycles where torque output takes priority over energy efficiency.
All external components are free of paint and coatings, minimizing flaking risks and ensuring compliance with food safety and cleanroom requirements.
An ideal solution for industries with strict sanitary standards, including dairy, meat processing, chemical dosing systems, bottling lines, and cleanroom conveyors.This Clean-Geartech stainless steel worm gearbox is engineered for reliability, hygiene, and longevity — delivering confidence in critical motion control systems.
