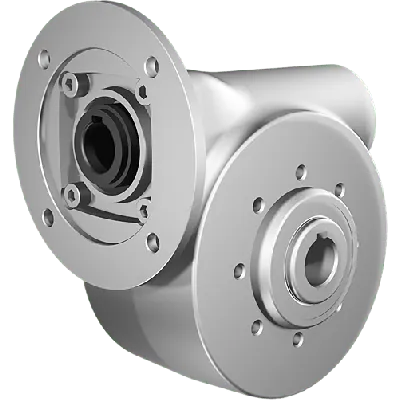

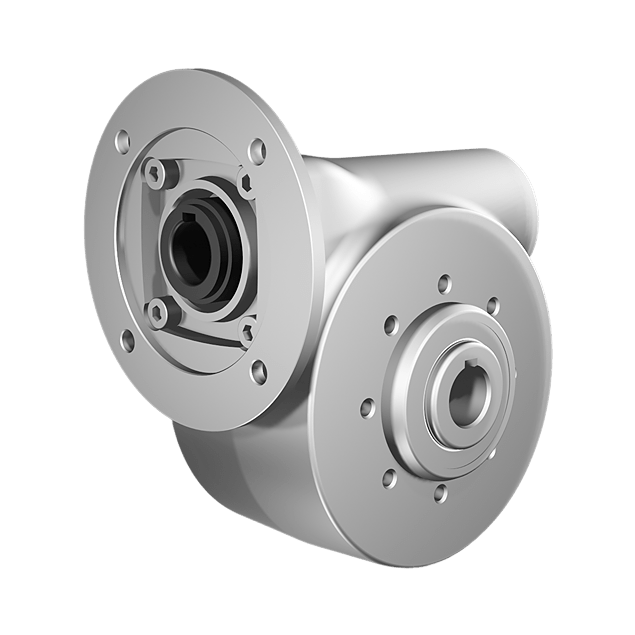

Clean-Geartech N63, worm gear Ø25, 7:1, input 90B14, stainless steel
HV82PN63UNIN010MFINN-TB3-E-OFThis unit features a gear size: N63, a gear ratio of 7:1, and a 90B14 gear motor interface. The input shaft diameter is 24 mm, while the output shaft measures 25 mm. The gear material is stainless steel AISI 316L, providing robustness in corrosive environments. The worm gear offers 83% efficiency, with a BCD input of 115 and a BCD output of 90, making it suitable for integration in precision-controlled systems.Ideal for use in food, pharmaceutical, and chemical industries.
Specifications
Product description
Downloads
€1,139.00
In stock
Expected shipment:
Loading...

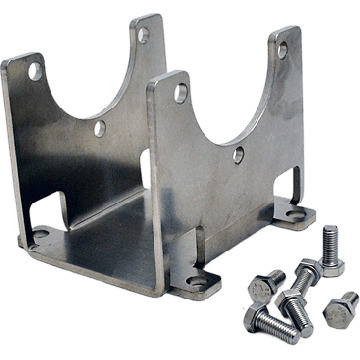

Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
7:1
BCD input
115
BCD output
90
Efficiency (%)
83
Gear output shaft (mm)
25
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
N63
Output speed at 1400 RPM
200
Max output torque (Nm)
125
Max kW input at 1400 rpm
3.2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description: Clean-Geartech is a leading manufacturer of high-performance gearboxes made specifically for demanding processing environments where hygiene, corrosion resistance, and reliability are top priorities. With a focus on stainless steel designs and smooth surfaces, Clean-Geartech products are optimized for the food, pharmaceutical, and chemical industries, ensuring compliance with stringent hygiene standards such as EHEDG and FDA.Technical Product Overview:
Fully made from AISI 316L stainless steel, the gear housing provides excellent corrosion resistance and is ideal for aggressive environments such as wash-down areas in food processing applications.
The hollow output shaft (Ø25 mm), crafted from stainless steel, offers streamlined integration into systems where durability and hygiene are paramount.
The 90B14 motor interface allows easy coupling with IEC standard motors, supporting seamless adaptation and quick installation in a range of industrial setups.
Featuring a compact N63 gear size, this unit is ideal for installations with limited space without compromising on torque output or performance.
With a gear ratio of 7:1, the gear reducer efficiently lowers input speed while increasing output torque, suitable for conveying systems, mixers, and rotary motion applications.
Operating at an efficiency of 83%, the gearbox supports energy-conscious machine design while maintaining mechanical reliability.
The 24 mm input shaft ensures mechanical stability and compatibility with a wide variety of electric motors and drive systems.
Designed for hygienic industries, this worm gearbox is ideal for use in food & beverage automation, pharmaceutical conveyors, packaging machinery, and cleanroom environments.
The smooth, crevice-free external surfaces minimize the risk of bacteria build-up and support high-pressure wash-down procedures essential in sanitary applications.
With no external coating or paint, the full stainless steel construction eliminates the risks of flaking and corrosion under corrosive process conditions.
Fully made from AISI 316L stainless steel, the gear housing provides excellent corrosion resistance and is ideal for aggressive environments such as wash-down areas in food processing applications.
The hollow output shaft (Ø25 mm), crafted from stainless steel, offers streamlined integration into systems where durability and hygiene are paramount.
The 90B14 motor interface allows easy coupling with IEC standard motors, supporting seamless adaptation and quick installation in a range of industrial setups.
Featuring a compact N63 gear size, this unit is ideal for installations with limited space without compromising on torque output or performance.
With a gear ratio of 7:1, the gear reducer efficiently lowers input speed while increasing output torque, suitable for conveying systems, mixers, and rotary motion applications.
Operating at an efficiency of 83%, the gearbox supports energy-conscious machine design while maintaining mechanical reliability.
The 24 mm input shaft ensures mechanical stability and compatibility with a wide variety of electric motors and drive systems.
Designed for hygienic industries, this worm gearbox is ideal for use in food & beverage automation, pharmaceutical conveyors, packaging machinery, and cleanroom environments.
The smooth, crevice-free external surfaces minimize the risk of bacteria build-up and support high-pressure wash-down procedures essential in sanitary applications.
With no external coating or paint, the full stainless steel construction eliminates the risks of flaking and corrosion under corrosive process conditions.
