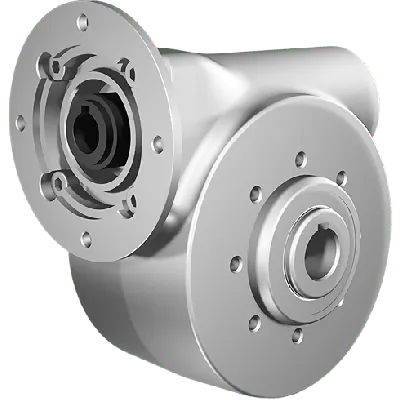

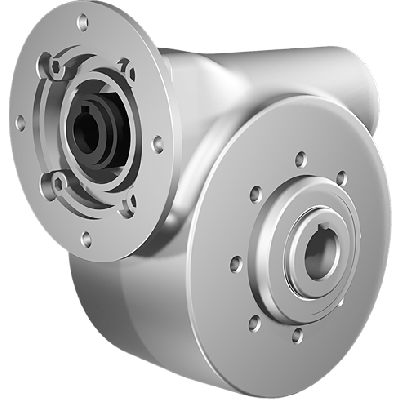

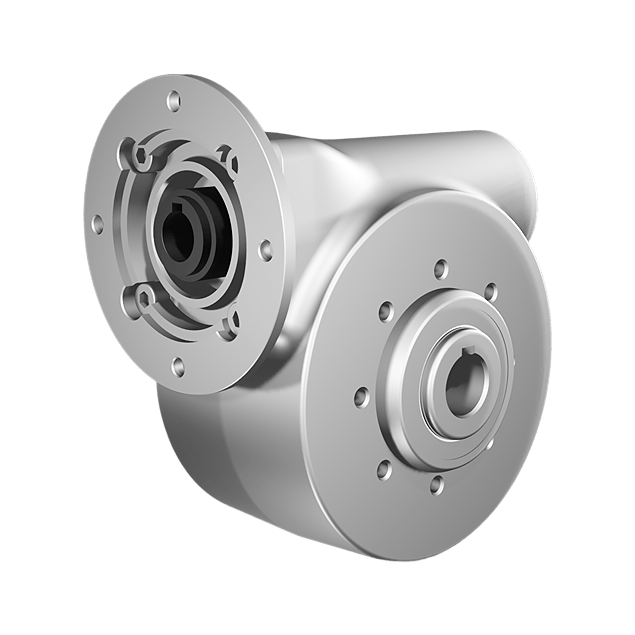

Clean-Geartech N63, worm gear Ø25, 7:1, input 80B14, stainless steel
HV82PN63UNIN010MFINN-RB3-D-OFIt features a gear ratio of 7:1 and a stainless steel AISI 316L gear housing. The gear input shaft diameter is 19 mm, while the gear output shaft diameter is 25 mm. This unit offers a BCD input of 100 mm and a BCD output of 90 mm, compatible with a gear motor interface of size 80B14. The gear size is N63 and the efficiency is 83%. Suitable for applications where durability and easy cleaning are required.
Specifications
Product description
Downloads
€1,120.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
7:1
BCD input
100
BCD output
90
Efficiency (%)
83
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N63
Output speed at 1400 RPM
200
Max output torque (Nm)
125
Max kW input at 1400 rpm
3.2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a leading manufacturer of advanced stainless steel gearboxes tailored for demanding industrial applications. Renowned for their durability, hygiene and corrosion resistance, Clean-Geartech products are used extensively in sectors such as food processing, pharmaceuticals, packaging and cleanroom automation. The N63 worm gearbox is engineered using high-grade AISI 316L stainless steel, making it ideal for harsh and washdown environments.Key Features, Advantages, and Application Possibilities:
• Constructed from AISI 316L stainless steel — provides excellent corrosion resistance, ensuring long operational life in aggressive or sanitary environments such as food and beverage, marine, and chemical processing.
• Gear ratio of 7:1 — delivers high torque output at low speed, suitable for conveyors, mixers and dosing systems where controlled motion is essential.
• High durability SS hollow output shaft Ø25 mm — optimally designed for reliable torque transmission and simplified coupling to driven components, backed by the strength and hygiene of stainless steel.
• Compatible with standard 80B14 motor flanges — facilitates integration with IEC-standard motors, offering design flexibility and reducing engineering time.
• Efficiency at 83% — ensures effective power transmission with minimized energy loss, contributing to overall system efficiency and sustainability.
• Input shaft diameter Ø19 mm — well-suited for rigid couplings or belt-pulley drives in automated systems or precision machinery.
• Compact housing size N63 — allows installation in confined spaces without compromising performance, critical for modular or space-efficient designs.
• Fully sealed and hygienic design — meets strict sanitation standards and supports cleaning-in-place (CIP) procedures in regulated environments.
• Suitable for both horizontal and vertical mounting positions — increasing adaptability in complex mechanical layouts or custom-built machines.Whether you are designing equipment for sterile processing zones or ensuring long-term resilience in corrosive environments, the Clean-Geartech N63 worm gearbox offers the performance, reliability and sanitary confidence demanded by technical specialists and engineers across various industries.
