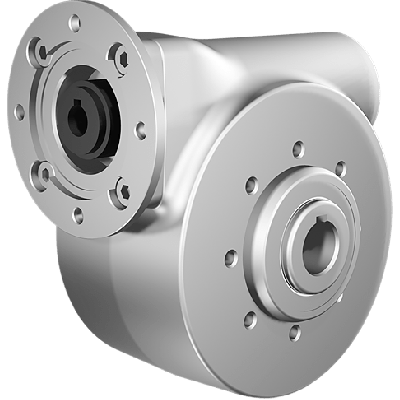

Clean-Geartech N63, worm gear Ø25, 7:1, input 71B14, stainless steel
HV82PN63UNIN010MFINN-QB3-C-OFFeaturing a gear ratio of 7:1, this unit delivers a reliable speed reduction and torque increase. The gear housing and worm made of stainless steel AISI 316L ensure durability in harsh environments. It includes a Ø25 mm stainless steel hollow output shaft and a Ø14 mm input shaft, supporting compatibility with standard motor connections.With a 71B14 motor interface and gear size N63, it integrates seamlessly into compact mechanical systems. The unit operates at 83% efficiency, with BCD input of 85 mm and BCD output of 90 mm, optimizing footprint and performance.
Specifications
Product description
Downloads
€1,114.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
7:1
BCD input
85
BCD output
90
Efficiency (%)
83
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N63
Output speed at 1400 RPM
200
Max output torque (Nm)
125
Max kW input at 1400 rpm
3.2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech N63 worm gearbox is engineered for demanding industrial applications requiring high durability, reliability, and hygiene. Manufactured by Clean-Geartech – a trusted brand recognized for precision-engineered stainless steel transmission solutions – this gearbox delivers robustness and efficiency in harsh environments such as food processing, pharmaceuticals, marine, and chemical industries.Key Features and Benefits:
• Stainless Steel Construction (AISI 316L): Made from corrosion-resistant AISI 316L stainless steel, ensuring long operational life in aggressive or wash-down environments.
• Compact Gear Size N63: Ideal for installations with space constraints while maintaining mechanical strength and performance.
• Worm Gear Ratio 7:1: Delivers reliable torque multiplication and smooth motion control in low-speed, high-load applications.
• Input Shaft Diameter Ø14 mm: Ideal for standard motor couplings, allowing easy integration with various motor types in automated systems.
• Output Shaft Diameter Ø25 mm (Stainless Steel): Provides enhanced durability and resistance to corrosion — essential for direct-drive and high-humidity applications.
• Gear Motor Interface 71B14: Compatible with IEC-standard motors, allowing for flexible and efficient drive integration into your power transmission system.
• Efficiency 83%: Optimized gear design ensures minimal energy loss and higher system productivity. Applications:
• Perfect for processing lines in food, dairy, and beverage industries due to its hygienic design and wash-down compatibility.
• Suitable for pharmaceutical equipment where contamination control and material integrity are essential.
• Well-suited for marine and off-shore applications thanks to full stainless steel construction preventing salt corrosion.
• Reliable for use in chemical plants requiring non-reactive, corrosion-resistant transmission components.
• Ideal for robotic and automation systems in cleanrooms or corrosive operating environments. With a focus on hygiene, performance, and durability, the Clean-Geartech N63 worm gearbox is the ideal choice for engineers and technical specialists seeking long-lasting transmission solutions in critical environments.
• Stainless Steel Construction (AISI 316L): Made from corrosion-resistant AISI 316L stainless steel, ensuring long operational life in aggressive or wash-down environments.
• Compact Gear Size N63: Ideal for installations with space constraints while maintaining mechanical strength and performance.
• Worm Gear Ratio 7:1: Delivers reliable torque multiplication and smooth motion control in low-speed, high-load applications.
• Input Shaft Diameter Ø14 mm: Ideal for standard motor couplings, allowing easy integration with various motor types in automated systems.
• Output Shaft Diameter Ø25 mm (Stainless Steel): Provides enhanced durability and resistance to corrosion — essential for direct-drive and high-humidity applications.
• Gear Motor Interface 71B14: Compatible with IEC-standard motors, allowing for flexible and efficient drive integration into your power transmission system.
• Efficiency 83%: Optimized gear design ensures minimal energy loss and higher system productivity. Applications:
• Perfect for processing lines in food, dairy, and beverage industries due to its hygienic design and wash-down compatibility.
• Suitable for pharmaceutical equipment where contamination control and material integrity are essential.
• Well-suited for marine and off-shore applications thanks to full stainless steel construction preventing salt corrosion.
• Reliable for use in chemical plants requiring non-reactive, corrosion-resistant transmission components.
• Ideal for robotic and automation systems in cleanrooms or corrosive operating environments. With a focus on hygiene, performance, and durability, the Clean-Geartech N63 worm gearbox is the ideal choice for engineers and technical specialists seeking long-lasting transmission solutions in critical environments.
