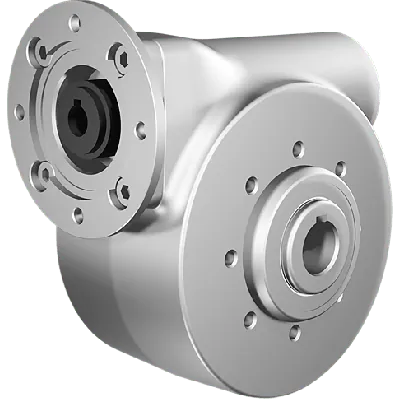

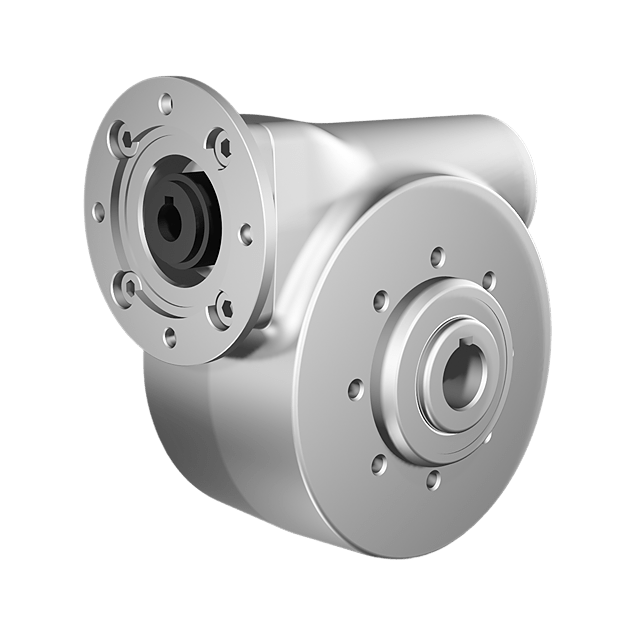

Clean-Geartech N63, worm gear Ø25, 67:1, input 71B14, stainless steel
HV82PN63UNIN090MFINN-QB3-C-OFThe Clean-Geartech N63, worm gearbox Ø25, 67:1, input 71B14, stainless steel features several key attributes tailored for technical specialists. It provides a BCD input of 85 mm and BCD output of 90 mm, with a gear ratio of 67:1. The gear input shaft measures 14 mm, and the gear output shaft is 25 mm. The gear housing and worm wheel are made of stainless steel AISI 316L, ensuring high corrosion resistance. The gear motor interface is 71B14, and the gear size is N63. The efficiency is 60%. Suitable for demanding industrial environments requiring robust and hygienic performance.
Specifications
Product description
Downloads
€1,114.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
21.000000
Material
Stainless steel AISI 316L
Ratio
67:1
BCD input
85
BCD output
90
Efficiency (%)
60
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N63
Output speed at 1400 RPM
21
Max output torque (Nm)
124
Max kW input at 1400 rpm
0.45
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a high-end European gearbox manufacturer specializing in hygienic solutions made from premium stainless steel. Known for their robust and efficient drive systems, Clean-Geartech designs gears tailored for use in food processing, pharmaceutical, chemical, and other demanding industrial environments where corrosion resistance, hygiene, and reliability are critical.Below are the key features, their benefits, and usage possibilities of the Clean-Geartech N63 stainless steel worm gearbox:
Constructed from stainless steel AISI 316L housing — ensures unparalleled corrosion resistance, ideal for washdown environments and applications with aggressive cleaning routines such as food, dairy, and pharmaceutical processing.
Stainless steel Ø25 mm solid output shaft — prevents rust and wear in long-term service, making it suitable for heavy-duty use in corrosive or sterile production zones.
Worm Gear Ratio of 67:1 — provides high torque transfer and smooth speed reduction, ideal for conveying systems, mixers, and lifting applications requiring precise torque control.
Input shaft diameter of 14 mm with 71B14 motor interface — ensures compatibility with IEC standard motors, enabling easy integration with existing drive systems and standard motors for flexible engineering design.
Gear size N63 — compact form factor allows installation in tight machinery spaces without compromising performance.
High-quality internal gearing in stainless steel — increases longevity under high load and reduces maintenance intervals, ideal for applications in marine, chemical, and beverage industries.
Efficiency of 60% — suitable for applications where high torque is more critical than speed or energy efficiency, such as lifting platforms, agitators, or intermittent conveyors.
BCD Input: 85 mm; BCD Output: 90 mm — conforms to common mounting standards for ease of assembly with external components.The Clean-Geartech N63 is engineered to meet the demands of engineers and specialists seeking reliable and sanitary drive solutions in process automation, mechanical handling, and specialized equipment under tough environmental conditions.
Constructed from stainless steel AISI 316L housing — ensures unparalleled corrosion resistance, ideal for washdown environments and applications with aggressive cleaning routines such as food, dairy, and pharmaceutical processing.
Stainless steel Ø25 mm solid output shaft — prevents rust and wear in long-term service, making it suitable for heavy-duty use in corrosive or sterile production zones.
Worm Gear Ratio of 67:1 — provides high torque transfer and smooth speed reduction, ideal for conveying systems, mixers, and lifting applications requiring precise torque control.
Input shaft diameter of 14 mm with 71B14 motor interface — ensures compatibility with IEC standard motors, enabling easy integration with existing drive systems and standard motors for flexible engineering design.
Gear size N63 — compact form factor allows installation in tight machinery spaces without compromising performance.
High-quality internal gearing in stainless steel — increases longevity under high load and reduces maintenance intervals, ideal for applications in marine, chemical, and beverage industries.
Efficiency of 60% — suitable for applications where high torque is more critical than speed or energy efficiency, such as lifting platforms, agitators, or intermittent conveyors.
BCD Input: 85 mm; BCD Output: 90 mm — conforms to common mounting standards for ease of assembly with external components.The Clean-Geartech N63 is engineered to meet the demands of engineers and specialists seeking reliable and sanitary drive solutions in process automation, mechanical handling, and specialized equipment under tough environmental conditions.
