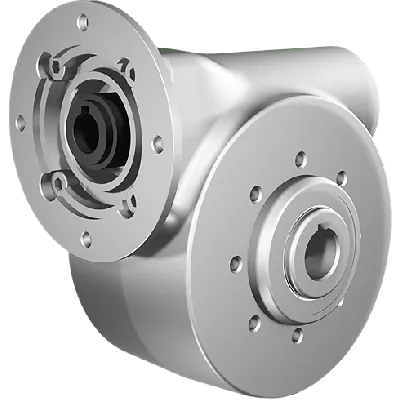

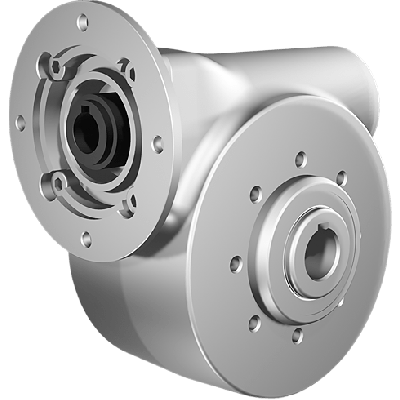

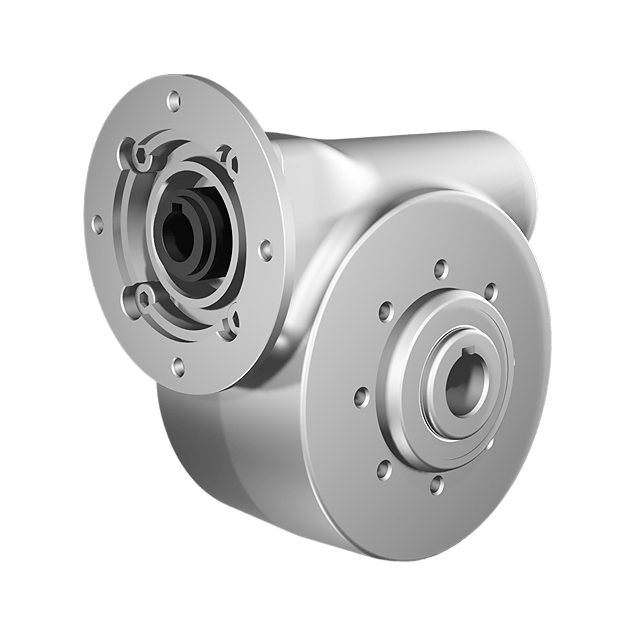

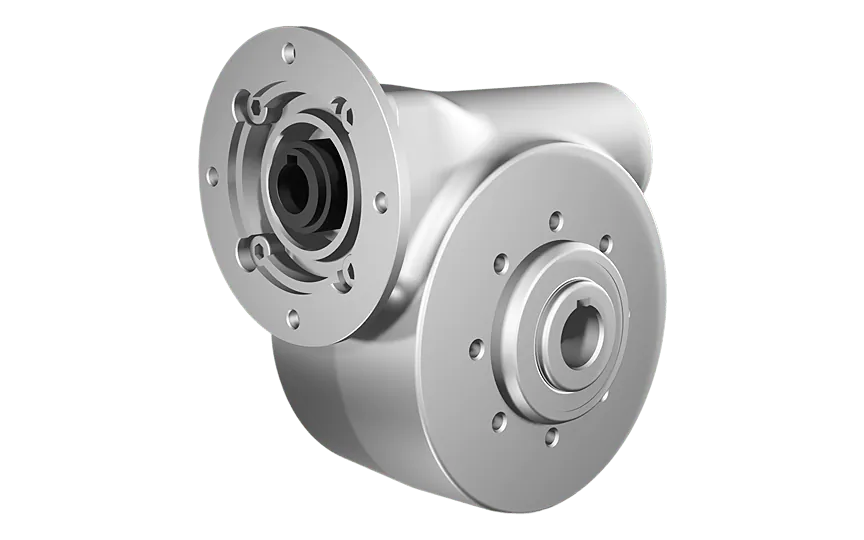

Clean-Geartech N63, worm gear Ø25, 60:1, input 80B14, stainless steel
HV82PN63UNIN120MFINN-RB3-D-OFThis gear unit features a stainless steel AISI 316L gear housing and a 25 mm output shaft, ensuring high durability in demanding environments. It supports a gear input shaft of 19 mm and is compatible with a motor interface size 80B14. The gear ratio is 60:1, delivering the necessary torque reduction, while the mechanical efficiency is 62%. With a gear size N63, the unit offers a BCD input of 100 mm and a BCD output of 90 mm, meeting standard mechanical integration requirements.
Specifications
Product description
Downloads
€1,120.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
60:1
BCD input
100
BCD output
90
Efficiency (%)
62
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N63
Output speed at 1400 RPM
23
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.51
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech N63 is a robust worm gearbox designed specifically for hygienic and demanding industrial applications. Produced by Clean-Geartech – a leading expert in high-performance gear solutions made from corrosion-resistant materials – this unit is fabricated entirely from AISI 316L stainless steel, delivering exceptional durability and resilience in environments with aggressive cleaning protocols or chemical exposure.Clean-Geartech specializes in gear systems for food, pharmaceutical, chemical, and marine sectors, where hygienic design and corrosion resistance are essential. Every component is engineered with precision and built to meet the highest technical standards, offering long-lasting performance and ease of integration.Key Features and Application Benefits:
✔ Fully constructed from high-grade AISI 316L stainless steel, providing outstanding resistance to corrosion, ideal for food processing, pharmaceutical, and marine industries.
✔ Gear size N63 with a highly compact design facilitates integration into tight spaces without compromising performance, enabling use in constrained machinery layouts.
✔ Reduction Ratio of 60:1 ensures precise speed control and high torque output, making it suitable for slow-speed conveyor systems, mixers, or automated dosing equipment.
✔ Equipped with a Ø25 mm hollow output shaft in stainless steel (SS output shaft), delivering strong mechanical connection with high resistance to wear in washdown environments.
✔ Input shaft Ø19 mm, compatible with standardized IEC 80B14 motor interface – providing seamless motor integration and flexible retrofit capabilities.
✔ Overall system efficiency of 62% ensures balanced performance for continuous duty applications where energy efficiency and mechanical durability are required.
✔ Designed for hygienic environments with smooth surfaces and sealed components that reduce bacterial residue and support CIP/SIP (Clean-In-Place/Sterilize-In-Place) processes.
✔ Suitable for horizontal or vertical mounting positions, offering engineering flexibility for customized installations across industrial automation systems.Choose Clean-Geartech N63 when performance, hygiene, and industrial-grade endurance are critical to your mechanical system’s success.
✔ Fully constructed from high-grade AISI 316L stainless steel, providing outstanding resistance to corrosion, ideal for food processing, pharmaceutical, and marine industries.
✔ Gear size N63 with a highly compact design facilitates integration into tight spaces without compromising performance, enabling use in constrained machinery layouts.
✔ Reduction Ratio of 60:1 ensures precise speed control and high torque output, making it suitable for slow-speed conveyor systems, mixers, or automated dosing equipment.
✔ Equipped with a Ø25 mm hollow output shaft in stainless steel (SS output shaft), delivering strong mechanical connection with high resistance to wear in washdown environments.
✔ Input shaft Ø19 mm, compatible with standardized IEC 80B14 motor interface – providing seamless motor integration and flexible retrofit capabilities.
✔ Overall system efficiency of 62% ensures balanced performance for continuous duty applications where energy efficiency and mechanical durability are required.
✔ Designed for hygienic environments with smooth surfaces and sealed components that reduce bacterial residue and support CIP/SIP (Clean-In-Place/Sterilize-In-Place) processes.
✔ Suitable for horizontal or vertical mounting positions, offering engineering flexibility for customized installations across industrial automation systems.Choose Clean-Geartech N63 when performance, hygiene, and industrial-grade endurance are critical to your mechanical system’s success.
