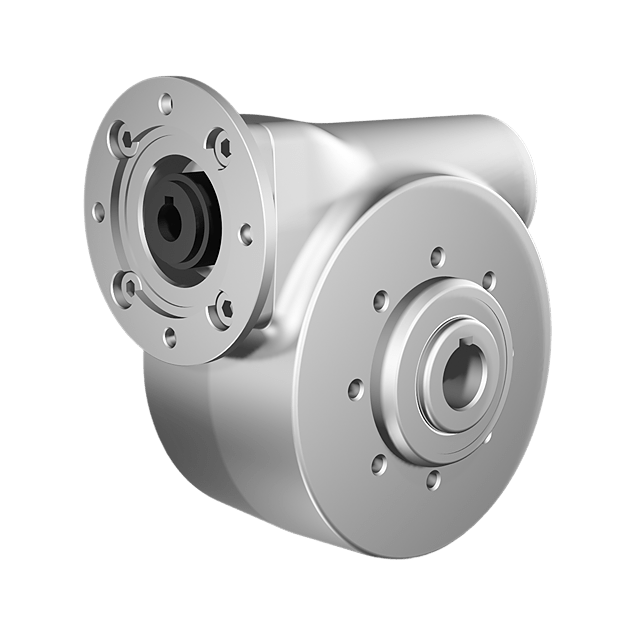

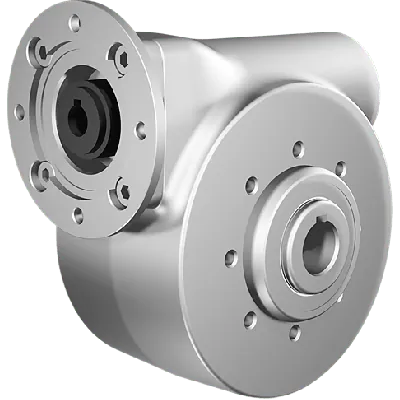

Clean-Geartech N63, worm gear Ø25, 60:1, input 71B14, stainless steel
HV82PN63UNIN120MFINN-QB3-C-OFThe Clean-Geartech N63 Worm Gearbox Ø25, 60:1, Input 71B14, Stainless Steel is designed for robust and efficient power transmission in demanding environments. Key attributes include: BCD input: 85 mm, BCD output: 90 mm, Efficiency: 62%, Gear input shaft: 14 mm, Gear output shaft: 25 mm, Gear material: Stainless steel AISI 316L, Gear motor interface: 71B14, Gear size: N63, Ratio: 60:1. The stainless steel construction makes this unit well-suited for applications that require hygiene and corrosion resistance.
Specifications
Product description
Downloads
€1,114.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
21.000000
Material
Stainless steel AISI 316L
Ratio
60:1
BCD input
85
BCD output
90
Efficiency (%)
62
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N63
Output speed at 1400 RPM
23
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.51
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description: Clean-Geartech is a trusted manufacturer specializing in hygienic, high-performance gear units engineered for demanding industrial environments. Their products are renowned for superior corrosion resistance, durability, and precise engineering — qualities that make them ideal for applications in industries such as food processing, pharmaceuticals, chemical production, and marine operations.Key Features, Benefits, and Application Possibilities:
Fully constructed with stainless steel AISI 316L housing and components, ensuring maximum resistance to corrosion and compatibility with hygienic processing environments (e.g., food & beverage, pharmaceutical industries).
60:1 gear reduction ratio delivers high torque output with compact design, making it ideal for space-constrained applications requiring power and control.
Output shaft Ø25 mm in stainless steel provides mechanical strength and longevity in high-load conditions, making it suitable for mixer drives, conveyors, and packaging equipment.
Input shaft Ø14 mm enables compatibility with a variety of motor drives, facilitating integration into existing systems with minimal adaptation.
Gear motor interface 71B14 allows direct mounting of standard IEC motors, significantly simplifying installation and reducing setup time.
Gear housing size N63 offers a balance between compact design and power handling, making it an optimal choice for medium-duty automation assemblies in industrial processes.
Worm gear mechanism supports smooth and quiet operation, essential for noise-sensitive environments and machine positioning applications.
Efficiency of 62% allows for acceptable power transmission while benefiting from the worm gear’s inherent self-locking capabilities—effective in vertical load-holding systems such as hoists and lifts.
Ideal for use in harsh industrial environments, including chemical plants and saltwater-exposed systems, due to its full stainless steel construction (SS output shaft and housing).
Broad compatibility with electric motors via B14 flange makes it adaptable across a wide array of automation platforms.This product is engineered for precision, hygiene, and mechanical durability—qualities that Clean-Geartech integrates into every gear solution.
Fully constructed with stainless steel AISI 316L housing and components, ensuring maximum resistance to corrosion and compatibility with hygienic processing environments (e.g., food & beverage, pharmaceutical industries).
60:1 gear reduction ratio delivers high torque output with compact design, making it ideal for space-constrained applications requiring power and control.
Output shaft Ø25 mm in stainless steel provides mechanical strength and longevity in high-load conditions, making it suitable for mixer drives, conveyors, and packaging equipment.
Input shaft Ø14 mm enables compatibility with a variety of motor drives, facilitating integration into existing systems with minimal adaptation.
Gear motor interface 71B14 allows direct mounting of standard IEC motors, significantly simplifying installation and reducing setup time.
Gear housing size N63 offers a balance between compact design and power handling, making it an optimal choice for medium-duty automation assemblies in industrial processes.
Worm gear mechanism supports smooth and quiet operation, essential for noise-sensitive environments and machine positioning applications.
Efficiency of 62% allows for acceptable power transmission while benefiting from the worm gear’s inherent self-locking capabilities—effective in vertical load-holding systems such as hoists and lifts.
Ideal for use in harsh industrial environments, including chemical plants and saltwater-exposed systems, due to its full stainless steel construction (SS output shaft and housing).
Broad compatibility with electric motors via B14 flange makes it adaptable across a wide array of automation platforms.This product is engineered for precision, hygiene, and mechanical durability—qualities that Clean-Geartech integrates into every gear solution.
