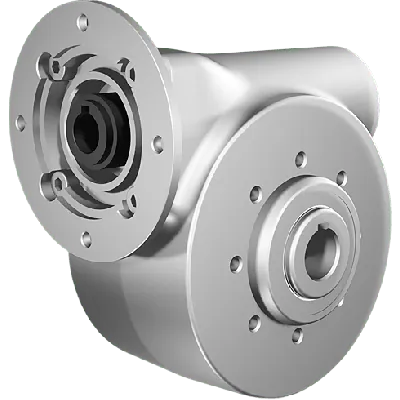

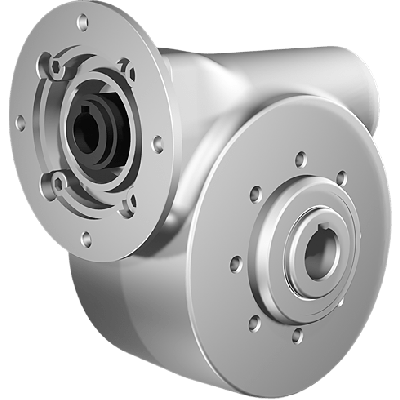

Clean-Geartech N63, worm gear Ø25, 45:1, input 80B14, stainless steel
HV82PN63UNIN080MFINN-RB3-D-OFThe Clean-Geartech N63, worm gear Ø25, 45:1, input 80B14, stainless steel is designed for applications requiring high reliability and corrosion resistance. It features a gear ratio of 45:1 and is built in a compact gear size N63. The input shaft is 19 mm and the output shaft is 25 mm. With a BCD input of 100 mm and BCD output of 90 mm, it is compatible with standard motor mounts, using the IEC 80B14 gear motor interface. The worm gear is made of stainless steel AISI 316L for high corrosion resistance, and the unit delivers 66% efficiency, making it suitable for food, pharma, and other demanding environments.
Specifications
Product description
Downloads
€1,120.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
45:1
BCD input
100
BCD output
90
Efficiency (%)
66
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N63
Output speed at 1400 RPM
31
Max output torque (Nm)
135
Max kW input at 1400 rpm
0.67
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description: Clean-Geartech is a trusted brand recognized across industrial sectors for delivering durable, hygienically designed gear units tailored to demanding environments. With a key focus on sectors such as food processing, pharmaceuticals, and clean manufacturing, Clean-Geartech offers stainless steel gear solutions characterized by robust construction, high corrosion resistance, and compliance with hygienic standards.Key Features, Advantages, and Industrial Applications:
Constructed from AISI 316L stainless steel, providing superior corrosion resistance—ideal for food, chemical, and pharmaceutical industries where aggressive cleaning agents and moisture are common.
Worm gearbox configuration with a 45:1 gear ratio enables high torque output at low rotational speeds—perfect for conveyors, mixers, and dosing applications requiring precise motion control.
Hollow Ø25 mm output shaft in stainless steel ensures compatibility with a wide range of mechanical couplings while maintaining corrosion protection in washdown environments.
Ø19 mm input shaft supports standard motor connections and ensures flexibility for motor configuration in retrofits or custom machinery.
Efficiency of 66% in mechanical transmission offers a balance between power delivery and energy consumption—well-suited for continuous duty operations with moderate power demands.
Gear motor interface Ø80B14 ensures seamless integration with IEC-standard motors, streamlining installation and reducing downtime during commissioning.
Compact gear size N63 with optimized design ensures it fits into space-constrained automation systems and OEM machinery layouts.
Backlash-optimized worm engagement ensures precise positioning and reversibility, essential for indexing and controlled-drive operations in robotics and automation systems.
Low-noise operation characteristic of worm drives supports use in environments where noise reduction is critical, such as laboratory automation and packaging lines.
Reliable performance backed by Clean-Geartech’s engineering heritage, global technical support, and adherence to hygienic design principles ensure compliance with industry standards like FDA and EHEDG.
Constructed from AISI 316L stainless steel, providing superior corrosion resistance—ideal for food, chemical, and pharmaceutical industries where aggressive cleaning agents and moisture are common.
Worm gearbox configuration with a 45:1 gear ratio enables high torque output at low rotational speeds—perfect for conveyors, mixers, and dosing applications requiring precise motion control.
Hollow Ø25 mm output shaft in stainless steel ensures compatibility with a wide range of mechanical couplings while maintaining corrosion protection in washdown environments.
Ø19 mm input shaft supports standard motor connections and ensures flexibility for motor configuration in retrofits or custom machinery.
Efficiency of 66% in mechanical transmission offers a balance between power delivery and energy consumption—well-suited for continuous duty operations with moderate power demands.
Gear motor interface Ø80B14 ensures seamless integration with IEC-standard motors, streamlining installation and reducing downtime during commissioning.
Compact gear size N63 with optimized design ensures it fits into space-constrained automation systems and OEM machinery layouts.
Backlash-optimized worm engagement ensures precise positioning and reversibility, essential for indexing and controlled-drive operations in robotics and automation systems.
Low-noise operation characteristic of worm drives supports use in environments where noise reduction is critical, such as laboratory automation and packaging lines.
Reliable performance backed by Clean-Geartech’s engineering heritage, global technical support, and adherence to hygienic design principles ensure compliance with industry standards like FDA and EHEDG.
