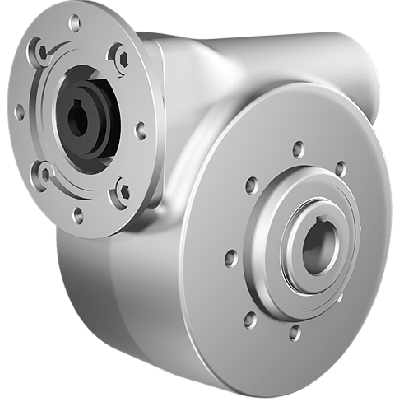

Clean-Geartech N63, worm gear Ø25, 45:1, input 71B14, stainless steel
HV82PN63UNIN080MFINN-QB3-C-OFFeaturing a gear ratio of 45:1, this unit delivers effective torque conversion. The gear housing and worm made from stainless steel AISI 316L ensure high resistance to chemicals and washdown conditions. The gearbox includes a 25 mm output shaft and a 14 mm input shaft, enabling compatibility with a range of motor setups via the 71B14 motor interface. With an efficiency of 66% and compact gear size N63, it supports applications with space or hygiene constraints. Input and output BCDs are 85 mm and 90 mm, respectively, allowing precise mechanical integration.
Specifications
Product description
Downloads
€1,114.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
45:1
BCD input
85
BCD output
90
Efficiency (%)
66
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N63
Output speed at 1400 RPM
31
Max output torque (Nm)
135
Max kW input at 1400 rpm
0.67
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a leading manufacturer specializing in high-performance, hygienic gear solutions for demanding industrial environments. With a focus on durability, corrosion resistance, and easy maintenance, Clean-Geartech products are engineered to excel in industries such as food processing, pharmaceuticals, and chemical manufacturing. Their gearboxes are designed with attention to hygiene and reliability, making them ideal for environments where cleanliness and material resilience are paramount.Product: Clean-Geartech N63, Worm Gear Ø25, Ratio 45:1, Input 71B14, Stainless SteelKey Features, Benefits, and Applications:
Constructed from high-grade stainless steel AISI 316L, the gearbox housing ensures superior corrosion resistance, making it suitable for harsh washdown environments found in the food, beverage, and pharmaceutical industries.
Equipped with a Ø25 mm stainless steel output shaft, this gear unit provides robust mechanical strength and excellent durability in continuous or heavy-load applications.
The 45:1 gear ratio offers precise torque multiplication and speed reduction, ideal for handling low-speed, high-torque tasks in automated processing lines and conveyor systems.
Input interface of 71B14 allows direct compatibility with IEC frame motors, streamlining the integration process in modular or custom-built machinery.
The gear input shaft, with a 14 mm diameter, is engineered to maintain alignment and torque transmission fidelity under heavy cycling conditions.
External and internal components made of stainless steel minimize the risk of bacterial contamination, making the product compliant with stringent hygiene requirements.
Operates with an efficiency of 66%, optimizing energy use while still delivering reliable mechanical performance in constant-duty environments.
BCDs of 85 mm (input) and 90 mm (output) enable easy mounting and adaptation in standardized mechanical setups, reducing installation time and complexity.
Compact gear size N63 facilitates installation in space-constrained machinery without compromising power transmission capabilities.
Ideal for use in food processing conveyors, pharmaceutical filling systems, packaging equipment, cleanroom industrial robots, and sanitary pump drives where hygiene, reliability, and long service life are essential.
Constructed from high-grade stainless steel AISI 316L, the gearbox housing ensures superior corrosion resistance, making it suitable for harsh washdown environments found in the food, beverage, and pharmaceutical industries.
Equipped with a Ø25 mm stainless steel output shaft, this gear unit provides robust mechanical strength and excellent durability in continuous or heavy-load applications.
The 45:1 gear ratio offers precise torque multiplication and speed reduction, ideal for handling low-speed, high-torque tasks in automated processing lines and conveyor systems.
Input interface of 71B14 allows direct compatibility with IEC frame motors, streamlining the integration process in modular or custom-built machinery.
The gear input shaft, with a 14 mm diameter, is engineered to maintain alignment and torque transmission fidelity under heavy cycling conditions.
External and internal components made of stainless steel minimize the risk of bacterial contamination, making the product compliant with stringent hygiene requirements.
Operates with an efficiency of 66%, optimizing energy use while still delivering reliable mechanical performance in constant-duty environments.
BCDs of 85 mm (input) and 90 mm (output) enable easy mounting and adaptation in standardized mechanical setups, reducing installation time and complexity.
Compact gear size N63 facilitates installation in space-constrained machinery without compromising power transmission capabilities.
Ideal for use in food processing conveyors, pharmaceutical filling systems, packaging equipment, cleanroom industrial robots, and sanitary pump drives where hygiene, reliability, and long service life are essential.
