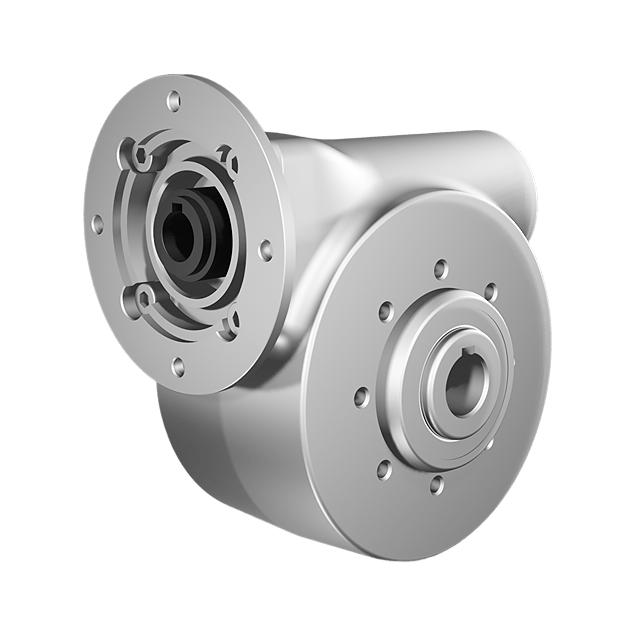

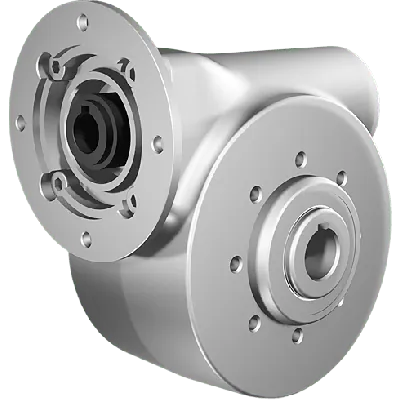

Clean-Geartech N63, worm gear Ø25, 40:1, input 80B14, stainless steel
HV82PN63UNIN130MFINN-RB3-D-OFIt features a gear size of N63 and a gear ratio of 40:1, enabling significant torque multiplication. The gear output shaft measures 25 mm and the gear input shaft is 19 mm. The unit is equipped with a BCD input of 100 mm and a BCD output of 90 mm, compatible with standardized motor mountings via its 80B14 motor interface. The gears are made from stainless steel AISI 316L, and the high durability is further supported by the stainless steel (SS) output shaft. The solution delivers 66% efficiency under nominal load.
Specifications
Product description
Downloads
€1,120.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
40:1
BCD input
100
BCD output
90
Efficiency (%)
66
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N63
Output speed at 1400 RPM
35
Max output torque (Nm)
140
Max kW input at 1400 rpm
0.78
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a renowned manufacturer specializing in hygienic and heavy-duty gear solutions for demanding industrial environments. Known for exceptional reliability, corrosion resistance, and compliance with food and pharmaceutical industry standards, Clean-Geartech products are engineered for long-lasting performance under extreme conditions.Product Description:The Clean-Geartech N63 stainless steel worm gearbox is a compact and high-durability power transmission solution ideal for applications where hygiene, corrosion resistance, and efficiency are critical. Designed with an 80B14 motor interface and a robust Ø25 mm output shaft, it features a gear ratio of 40:1—optimizing torque transmission in washdown and aggressive production environments.Key Features and Application Advantages:
• Full gear housing constructed from AISI 316L stainless steel ensures excellent corrosion resistance—ideal for food processing, pharmaceutical, and marine environments.
• 40:1 gear ratio offers high torque output with reduced input speed—perfect for mixers, conveyors, and rotary mechanisms.
• Ø25 mm stainless steel hollow output shaft supports high torque loads—ideal for direct coupling to motion control components.
• Standardized 80B14 input flange provides compatibility with a wide range of IEC motors—enabling easy integration and fast installation.
• Compact N63 gear size minimizes installation footprint—suitable for confined machinery layouts.
• Input shaft diameter of 19 mm allows reliable connection to power sources, ensuring mechanical stability and noise reduction.
• Operational efficiency of 66% strikes a balance between performance and energy usage—appropriate for continuous duty cycles.
• Sealed stainless steel construction prevents ingress of contaminants—crucial for cleanroom and CIP (Clean-in-Place) applications. This gearbox is tailored for engineers and automation specialists designing in sectors including food and beverage, chemical processing, and offshore machinery, where sanitation and mechanical resilience are mission-critical.
• Full gear housing constructed from AISI 316L stainless steel ensures excellent corrosion resistance—ideal for food processing, pharmaceutical, and marine environments.
• 40:1 gear ratio offers high torque output with reduced input speed—perfect for mixers, conveyors, and rotary mechanisms.
• Ø25 mm stainless steel hollow output shaft supports high torque loads—ideal for direct coupling to motion control components.
• Standardized 80B14 input flange provides compatibility with a wide range of IEC motors—enabling easy integration and fast installation.
• Compact N63 gear size minimizes installation footprint—suitable for confined machinery layouts.
• Input shaft diameter of 19 mm allows reliable connection to power sources, ensuring mechanical stability and noise reduction.
• Operational efficiency of 66% strikes a balance between performance and energy usage—appropriate for continuous duty cycles.
• Sealed stainless steel construction prevents ingress of contaminants—crucial for cleanroom and CIP (Clean-in-Place) applications. This gearbox is tailored for engineers and automation specialists designing in sectors including food and beverage, chemical processing, and offshore machinery, where sanitation and mechanical resilience are mission-critical.
