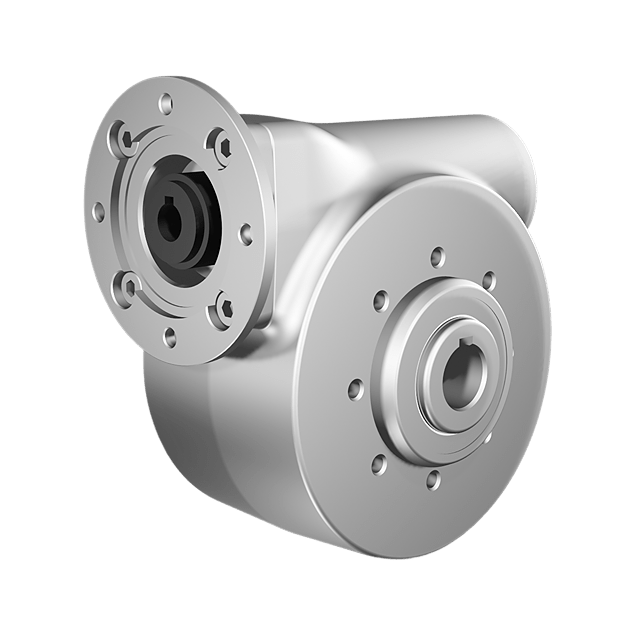

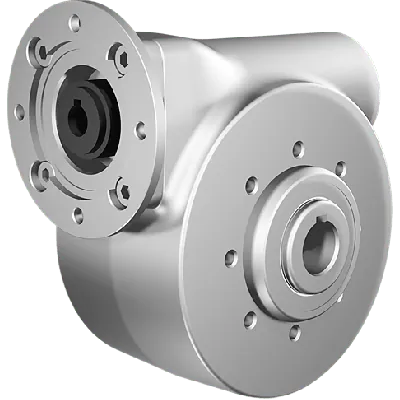

Clean-Geartech N63, worm gear Ø25, 40:1, input 71B14, stainless steel
HV82PN63UNIN130MFINN-QB3-C-OFIt features a gear size: N63 and a gear ratio: 40:1, offering reliable speed reduction. The input shaft diameter is 14 mm, while the output shaft diameter is 25 mm. This model is built with GEAR material: stainless steel AISI 316L, ensuring high corrosion resistance in demanding environments. It supports mounting with a gear motor interface: 71B14. Mechanical performance is defined by a BCD input: 85, a BCD output: 90, and an overall efficiency of 66%.Suitable for hygienic applications where stainless steel components are required.
Specifications
Product description
Downloads
€1,114.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
40:1
BCD input
85
BCD output
90
Efficiency (%)
66
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N63
Output speed at 1400 RPM
35
Max output torque (Nm)
140
Max kW input at 1400 rpm
0.78
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Product Name: Clean-Geartech N63, Worm Gear Ø25, 40:1, Input 71B14, Stainless SteelFeatures, Benefits, and Applications:
Rugged Construction: Entire gear housing is made from high-grade stainless steel AISI 316L, ensuring outstanding resistance to corrosion, chemicals, and extreme environments.
High Hygiene Standard: Ideal for industries with strict hygiene requirements such as food & beverage, pharmaceuticals, and biotechnology.
Worm Gear Ratio 40:1: Provides excellent torque conversion and speed reduction, tailored for applications requiring controlled rotational motion and power transmission.
Output Shaft Ø25 mm in Stainless Steel: Robust and corrosion-resistant, compatible with heavy-duty mechanical couplings and ideal for continuous operation in aggressive environments.
Input Shaft Ø14 mm: Optimized to connect with standard motors and EM drives, enhancing installation flexibility across various industrial systems.
Motor Interface 71B14: Easy integration with IEC standard motors, streamlining assembly and reducing configuration time in production lines and machinery.
Gear Size N63: Compact footprint that allows for efficient space utilization within equipment enclosures or tight installation spaces.
Efficiency 66%: Delivers a balance between power transmission effectiveness and heat dissipation for typical worm gear applications.
Stainless Steel Hollow Shaft Option: Enables compact coupling to drive shafts while offering strong corrosion resistance in hygienic or marine applications.
Versatile Use Cases: Suitable for conveyors, mixers, washing systems, dosing units, and marine deck machinery where corrosion and durability are critical concerns.This gear unit combines robust design with engineering versatility, making it an optimal choice for technical specialists seeking long-term reliability and compliance in regulated environments.
Rugged Construction: Entire gear housing is made from high-grade stainless steel AISI 316L, ensuring outstanding resistance to corrosion, chemicals, and extreme environments.
High Hygiene Standard: Ideal for industries with strict hygiene requirements such as food & beverage, pharmaceuticals, and biotechnology.
Worm Gear Ratio 40:1: Provides excellent torque conversion and speed reduction, tailored for applications requiring controlled rotational motion and power transmission.
Output Shaft Ø25 mm in Stainless Steel: Robust and corrosion-resistant, compatible with heavy-duty mechanical couplings and ideal for continuous operation in aggressive environments.
Input Shaft Ø14 mm: Optimized to connect with standard motors and EM drives, enhancing installation flexibility across various industrial systems.
Motor Interface 71B14: Easy integration with IEC standard motors, streamlining assembly and reducing configuration time in production lines and machinery.
Gear Size N63: Compact footprint that allows for efficient space utilization within equipment enclosures or tight installation spaces.
Efficiency 66%: Delivers a balance between power transmission effectiveness and heat dissipation for typical worm gear applications.
Stainless Steel Hollow Shaft Option: Enables compact coupling to drive shafts while offering strong corrosion resistance in hygienic or marine applications.
Versatile Use Cases: Suitable for conveyors, mixers, washing systems, dosing units, and marine deck machinery where corrosion and durability are critical concerns.This gear unit combines robust design with engineering versatility, making it an optimal choice for technical specialists seeking long-term reliability and compliance in regulated environments.
