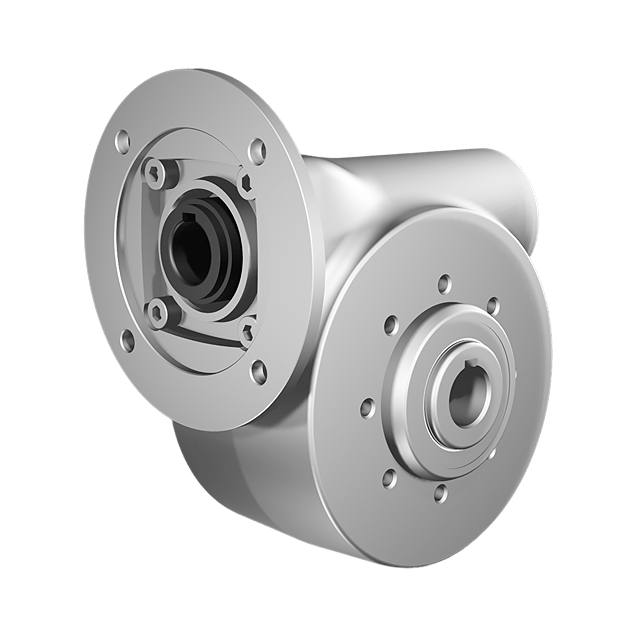

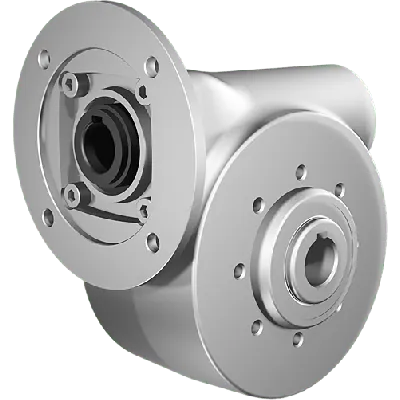

Clean-Geartech N63, worm gear Ø25, 36:1, input 90B14, stainless steel
HV82PN63UNIN070MFINN-TB3-E-OFKey specifications include a gear ratio of 36:1 and a gear size N63. The unit features a 24 mm input shaft and a 25 mm output shaft. It provides a BCD input of 115 mm and a BCD output of 90 mm, with a gear motor interface of 90B14.Constructed in stainless steel AISI 316L, the gear components offer increased corrosion resistance, suitable for hygienic or aggressive environments. The gearbox delivers an efficiency of 68%, making it a robust choice for industrial applications requiring consistent mechanical performance.
Specifications
Product description
Downloads
€1,139.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
36:1
BCD input
115
BCD output
90
Efficiency (%)
68
Gear output shaft (mm)
25
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
N63
Output speed at 1400 RPM
39
Max output torque (Nm)
147
Max kW input at 1400 rpm
0.88
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is an established manufacturer of high-performance hygienic gear solutions specifically designed for demanding industrial environments. Renowned for combining durability, easy maintenance, and premium materials, Clean-Geartech delivers precision and reliability with each product. Their gearbox solutions are widely used in food processing, pharmaceutical manufacturing, chemical production, and other sectors that require corrosion-resistant and sanitary mechanical components.Product: Clean-Geartech N63, Worm GearboxKey Features, Advantages & Application Areas:
• Manufactured entirely from stainless steel AISI 316L – highly resistant to aggressive cleaning agents, corrosion, and oxidation, making it ideal for food-grade and hygienic environments.
• Gear motor interface: 90B14 – ensures easy coupling with compatible motors, enhancing modularity and simplifying motor replacement or upgrades.
• Input shaft diameter: 24 mm – offers compatibility with a broad spectrum of standard motor connections to streamline integration in mechanical systems.
• Output shaft diameter: 25 mm (hollow SS shaft) – constructed from stainless steel to deliver high mechanical strength and long service life in washdown or high-moisture applications.
• Gear ratio: 36:1 – geared for significant torque increase, this reduction is ideal for slow-speed, high-torque tasks such as conveyor systems, mixers, and pumping operations.
• Gear size N63 – compact and space-efficient, perfectly suited for limited-installation areas without compromising on power output.
• Efficiency: 68% – optimized for worm gear mechanisms, delivering dependable performance where compact and sealed drives are required.
• Clean, enclosed housing – promotes long-term reliability by shielding internal components from contamination, moisture, and debris.
• Hygienic design – complies with industry regulations for sanitary applications such as dairy equipment, meat processing, and pharmaceutical production lines.
• Broad temperature and chemical resistance – supports integration into harsh cleaning regimens like CIP (Clean-in-Place) or SIP (Sterilization-in-Place) systems. This gearbox is an optimal choice for engineers and technical specialists seeking a robust, stainless steel worm gear solution tailored for cleanroom or aggressive operating environments.
• Manufactured entirely from stainless steel AISI 316L – highly resistant to aggressive cleaning agents, corrosion, and oxidation, making it ideal for food-grade and hygienic environments.
• Gear motor interface: 90B14 – ensures easy coupling with compatible motors, enhancing modularity and simplifying motor replacement or upgrades.
• Input shaft diameter: 24 mm – offers compatibility with a broad spectrum of standard motor connections to streamline integration in mechanical systems.
• Output shaft diameter: 25 mm (hollow SS shaft) – constructed from stainless steel to deliver high mechanical strength and long service life in washdown or high-moisture applications.
• Gear ratio: 36:1 – geared for significant torque increase, this reduction is ideal for slow-speed, high-torque tasks such as conveyor systems, mixers, and pumping operations.
• Gear size N63 – compact and space-efficient, perfectly suited for limited-installation areas without compromising on power output.
• Efficiency: 68% – optimized for worm gear mechanisms, delivering dependable performance where compact and sealed drives are required.
• Clean, enclosed housing – promotes long-term reliability by shielding internal components from contamination, moisture, and debris.
• Hygienic design – complies with industry regulations for sanitary applications such as dairy equipment, meat processing, and pharmaceutical production lines.
• Broad temperature and chemical resistance – supports integration into harsh cleaning regimens like CIP (Clean-in-Place) or SIP (Sterilization-in-Place) systems. This gearbox is an optimal choice for engineers and technical specialists seeking a robust, stainless steel worm gear solution tailored for cleanroom or aggressive operating environments.
