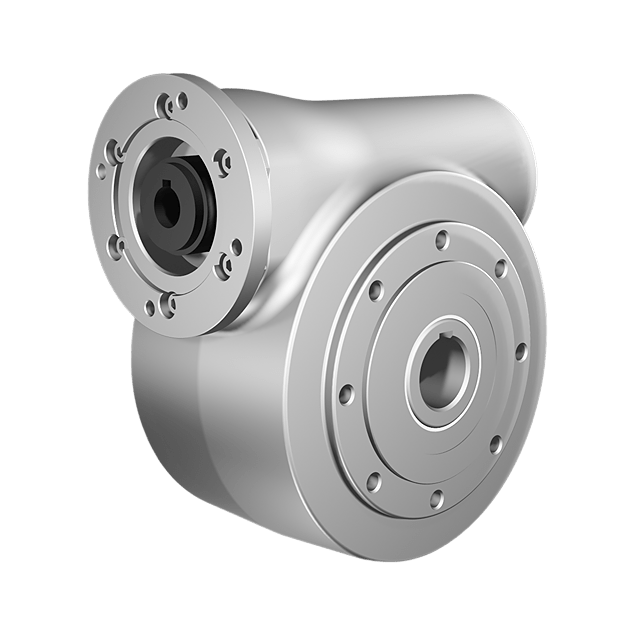

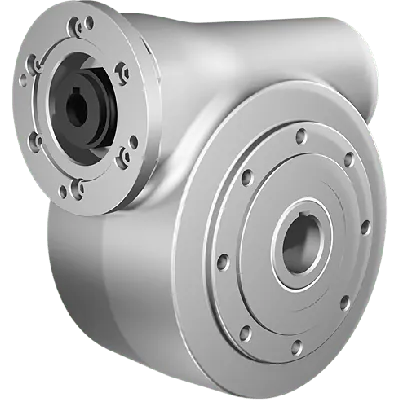

Clean-Geartech N63, worm gear Ø25, 36:1, input 80B14, stainless steel
HV82PN63UNIN070MFINN-RB3-D-OFIt features a BCD input of 100 mm and a BCD output of 90 mm. The unit delivers a gear ratio of 36:1 and has a mechanical efficiency of 68%. The input shaft diameter is 19 mm, while the output shaft diameter measures 25 mm. Designed to fit an 80B14 motor interface, the gearbox comes in size N63. All gear elements are made from stainless steel AISI 316L to ensure long-term reliability in corrosive environments.
Specifications
Product description
Downloads
€1,120.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
36:1
BCD input
100
BCD output
90
Efficiency (%)
68
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N63
Output speed at 1400 RPM
39
Max output torque (Nm)
147
Max kW input at 1400 rpm
0.88
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a leading manufacturer of advanced gear solutions designed specifically for demanding industrial environments. With a strong focus on corrosion resistance, durability, and hygienic design, Clean-Geartech's gear units are widely trusted across industries such as food processing, pharmaceuticals, marine, and chemical processing, where reliability and sanitary standards are paramount.This particular product, the Clean-Geartech N63 stainless steel worm gearbox, combines performance and robust construction tailored for high-demand applications involving corrosion, hygiene, and space constraints.Key features, benefits, and applications:
Made entirely from AISI 316L stainless steel, providing exceptional resistance to corrosion, chemical exposure, and wash-down cleaning — ideal for food, beverage, and pharmaceutical industries.
Stainless steel (SS) output shaft (Ø25 mm) ensures long operational life in harsh environments and processes involving high humidity or aggressive cleaning agents.
Compact worm gear design minimizes space requirements, making it suitable for integration into confined assemblies and automated systems.
36:1 gear ratio allows for precise speed reduction and torque multiplication, enabling accurate control in applications such as conveyors, mixers, dosing systems, and material handling units.
Efficiency rating of 68% supports energy-conscious implementations where power consumption is a concern, while still delivering consistent mechanical performance.
Standardized 80B14 input flange compatible with a wide range of IEC electric motors, allowing easy integration and exchange within modular drives.
Input shaft dimension of Ø19 mm ensures compatibility with common coupling systems and provides a reliable mechanical interface for consistent power transmission.
Gear size N63 designates a balanced unit in terms of torque capacity and installation footprint, making it suitable for mid-range industrial machinery.
BCD input/output of 100/90 ensures stable and accurate mounting for demanding alignment-critical installations.This gear unit is an excellent choice for engineers and technical specialists seeking a robust, hygienic, and energy-efficient solution for motion control and mechanical transmission in challenging environments.
Made entirely from AISI 316L stainless steel, providing exceptional resistance to corrosion, chemical exposure, and wash-down cleaning — ideal for food, beverage, and pharmaceutical industries.
Stainless steel (SS) output shaft (Ø25 mm) ensures long operational life in harsh environments and processes involving high humidity or aggressive cleaning agents.
Compact worm gear design minimizes space requirements, making it suitable for integration into confined assemblies and automated systems.
36:1 gear ratio allows for precise speed reduction and torque multiplication, enabling accurate control in applications such as conveyors, mixers, dosing systems, and material handling units.
Efficiency rating of 68% supports energy-conscious implementations where power consumption is a concern, while still delivering consistent mechanical performance.
Standardized 80B14 input flange compatible with a wide range of IEC electric motors, allowing easy integration and exchange within modular drives.
Input shaft dimension of Ø19 mm ensures compatibility with common coupling systems and provides a reliable mechanical interface for consistent power transmission.
Gear size N63 designates a balanced unit in terms of torque capacity and installation footprint, making it suitable for mid-range industrial machinery.
BCD input/output of 100/90 ensures stable and accurate mounting for demanding alignment-critical installations.This gear unit is an excellent choice for engineers and technical specialists seeking a robust, hygienic, and energy-efficient solution for motion control and mechanical transmission in challenging environments.
