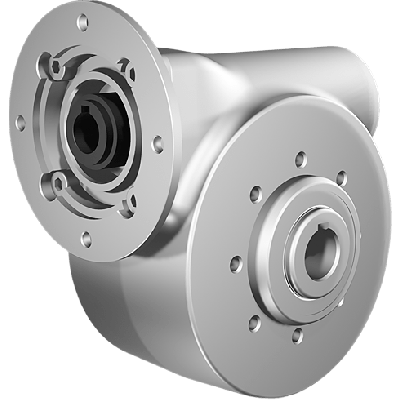

Clean-Geartech N63, worm gear Ø25, 30:1, input 80B14, stainless steel
HV82PN63UNIN060MFINN-RB3-D-OFFeaturing a gear ratio of 30:1 and efficiency of 74%, it is suitable for precise speed reduction. The input shaft diameter is 19 mm and the output shaft diameter is 25 mm. The gear motor interface is 80B14. Built with a stainless steel AISI 316L gear housing and components, it ensures high durability in corrosive settings. The gear size is N63, and the unit supports BCD input 100 and BCD output 90. Ideal for use in food-grade and hygienic applications.
Specifications
Product description
Downloads
€1,120.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
30:1
BCD input
100
BCD output
90
Efficiency (%)
74
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N63
Output speed at 1400 RPM
47
Max output torque (Nm)
146
Max kW input at 1400 rpm
0.96
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description Clean-Geartech is a premium manufacturer of hygienic and heavy-duty gear systems tailored for demanding industrial and engineering applications. Specializing in corrosion-resistant and easy-to-clean stainless steel gear units, Clean-Geartech is a trusted name across sectors such as food processing, pharmaceuticals, marine, and chemical production, where durability, cleanliness, and precision are vital.Key Features and Benefits
Fully constructed from AISI 316L stainless steel: Offers excellent resistance to corrosion and chemical exposure, ideal for harsh environments including washdown and food-grade areas.
30:1 gear ratio: Ensures high torque output with a significant reduction in speed, suitable for conveyors, mixers, and process equipment.
Efficiency of 74%: Optimized for energy savings over standard worm gears, reducing operational costs while maintaining performance.
Gear size N63: Compact footprint facilitates integration into existing systems without extensive re-engineering or space requirements.
25 mm stainless steel output shaft: Provides durable output performance and compatibility with a variety of couplings and machinery.
19 mm input shaft diameter: Matches standard motors and ensures easy connectivity without extensive modification.
Compatible with 80B14 gear motor interface: Allows direct mounting of IEC standard motors, enabling versatile integration.
Hollow shaft design available in stainless steel: Enhances flexibility during installation and supports through-shaft mounting in compact setups. Application Possibilities
Food and Beverage Processing: Exceptional corrosion resistance and cleanability against aggressive detergents make this gear ideal for hygienic zones.
Pharmaceutical Manufacturing: Supports sterile conditions with smooth surfaces and robust stainless steel construction to meet cleanroom standards.
Marine and Offshore Systems: Withstands saltwater exposure and harsh marine environments with durable 316L stainless steel components.
Chemical and Water Treatment Plants: Resists corrosion from aggressive media, ensuring long-term operation in caustic environments.
Industrial Conveying Systems: High torque and low backlash performance enhances power transmission for consistent material handling.
Fully constructed from AISI 316L stainless steel: Offers excellent resistance to corrosion and chemical exposure, ideal for harsh environments including washdown and food-grade areas.
30:1 gear ratio: Ensures high torque output with a significant reduction in speed, suitable for conveyors, mixers, and process equipment.
Efficiency of 74%: Optimized for energy savings over standard worm gears, reducing operational costs while maintaining performance.
Gear size N63: Compact footprint facilitates integration into existing systems without extensive re-engineering or space requirements.
25 mm stainless steel output shaft: Provides durable output performance and compatibility with a variety of couplings and machinery.
19 mm input shaft diameter: Matches standard motors and ensures easy connectivity without extensive modification.
Compatible with 80B14 gear motor interface: Allows direct mounting of IEC standard motors, enabling versatile integration.
Hollow shaft design available in stainless steel: Enhances flexibility during installation and supports through-shaft mounting in compact setups. Application Possibilities
Food and Beverage Processing: Exceptional corrosion resistance and cleanability against aggressive detergents make this gear ideal for hygienic zones.
Pharmaceutical Manufacturing: Supports sterile conditions with smooth surfaces and robust stainless steel construction to meet cleanroom standards.
Marine and Offshore Systems: Withstands saltwater exposure and harsh marine environments with durable 316L stainless steel components.
Chemical and Water Treatment Plants: Resists corrosion from aggressive media, ensuring long-term operation in caustic environments.
Industrial Conveying Systems: High torque and low backlash performance enhances power transmission for consistent material handling.
