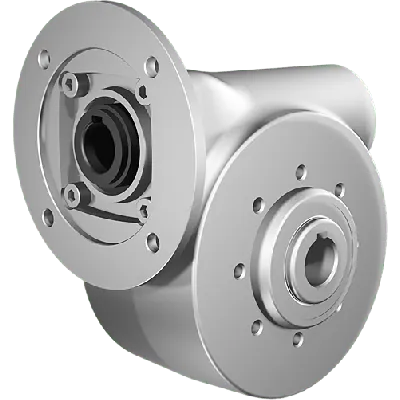

Clean-Geartech N63, worm gear Ø25, 24:1, input 90B14, stainless steel
HV82PN63UNIN050MFINN-TB3-E-OFThis unit features a gear size of N63 and a 24:1 gear ratio, suitable for torque-intensive operations. It provides a 90 mm B14 gear motor interface and includes a 24 mm input shaft and a 25 mm output shaft. Input torque capacity is 115 Nm with 90 Nm output torque at 75% efficiency. The gear material is stainless steel AISI 316L, delivering corrosion resistance and durability for hygienic and harsh environments. This makes the unit well-suited for food, pharmaceutical, or chemical processing industries.
Specifications
Product description
Downloads
€1,139.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
24:1
BCD input
115
BCD output
90
Efficiency (%)
75
Gear output shaft (mm)
25
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
N63
Output speed at 1400 RPM
58
Max output torque (Nm)
142
Max kW input at 1400 rpm
1.2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description:Clean-Geartech is a trusted manufacturer of premium-grade gearboxes specifically engineered for demanding industrial environments. Specializing in stainless steel gear systems, Clean-Geartech delivers products known for superior hygiene standards, corrosion resistance, and durability. The company is widely recognized across industries such as food & beverage, pharmaceuticals, packaging, and marine engineering.Key Features, Functional Benefits & Application Possibilities:
Material: AISI 316L Stainless Steel Housing – Offers optimal corrosion resistance ideal for washdown applications in food processing, pharmaceutical manufacturing, and marine environments.
Output Shaft: Ø25 mm Stainless Steel (SS) – Suitable for high-torque transmission while ensuring sanitary compatibility and long lifespan under aggressive cleaning procedures.
Gear Ratio: 24:1 – Ensures precise torque multiplication and speed reduction for controlled motion in applications such as conveyors, filling systems, and agitators.
Input Interface: 90B14 Flange – Compatible with IEC-standard motors for flexible and effortless motor integration in OEM and custom machinery.
Gear Input Shaft: Ø24 mm – Robust input shaft facilitates reliable power input transfer, ensuring consistent gear performance under variable loads.
Gear Size: N63 – Compact footprint for optimal space utilization in tight installations, especially in modular or compact machinery layouts.
Efficiency: 75% – Balances performance and energy use, suitable for intermittently or continuously running equipment where moderate efficiency is acceptable.
Output BCD: 90 mm – Standardized bolt circle diameter for secure and simple mechanical coupling with downstream components like pulleys or couplings.
Input BCD: 115 mm – Ensures stable and consistent mounting for various motor configurations adapted in industrial systems.
Application Areas: – Tailored for hygienic-sensitive industries (e.g. food & dairy, pharmaceuticals), chemical processing plants, modular automation systems, material handling, and offshore/marine machinery.
Material: AISI 316L Stainless Steel Housing – Offers optimal corrosion resistance ideal for washdown applications in food processing, pharmaceutical manufacturing, and marine environments.
Output Shaft: Ø25 mm Stainless Steel (SS) – Suitable for high-torque transmission while ensuring sanitary compatibility and long lifespan under aggressive cleaning procedures.
Gear Ratio: 24:1 – Ensures precise torque multiplication and speed reduction for controlled motion in applications such as conveyors, filling systems, and agitators.
Input Interface: 90B14 Flange – Compatible with IEC-standard motors for flexible and effortless motor integration in OEM and custom machinery.
Gear Input Shaft: Ø24 mm – Robust input shaft facilitates reliable power input transfer, ensuring consistent gear performance under variable loads.
Gear Size: N63 – Compact footprint for optimal space utilization in tight installations, especially in modular or compact machinery layouts.
Efficiency: 75% – Balances performance and energy use, suitable for intermittently or continuously running equipment where moderate efficiency is acceptable.
Output BCD: 90 mm – Standardized bolt circle diameter for secure and simple mechanical coupling with downstream components like pulleys or couplings.
Input BCD: 115 mm – Ensures stable and consistent mounting for various motor configurations adapted in industrial systems.
Application Areas: – Tailored for hygienic-sensitive industries (e.g. food & dairy, pharmaceuticals), chemical processing plants, modular automation systems, material handling, and offshore/marine machinery.
