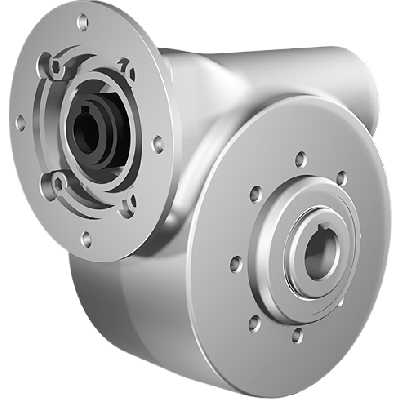

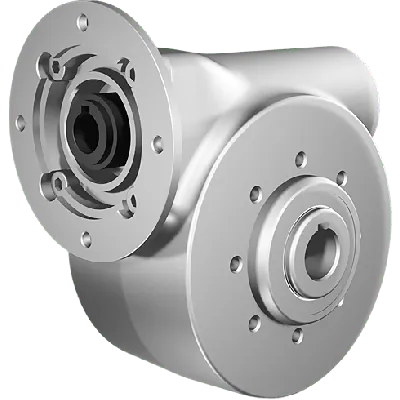

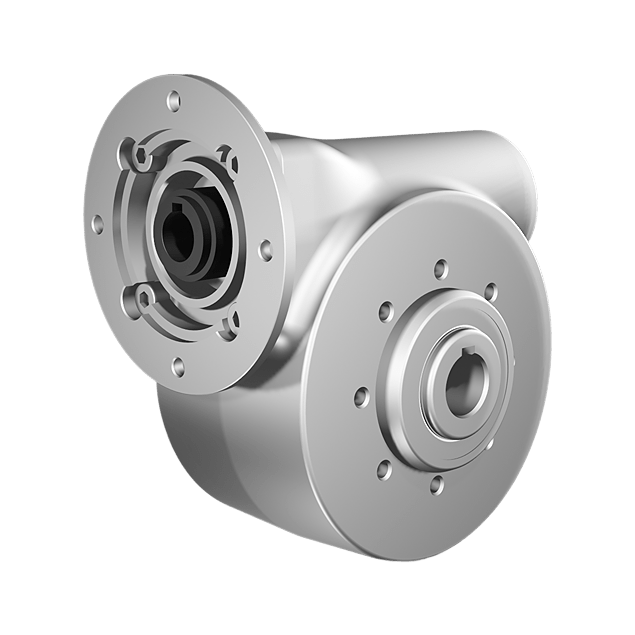

Clean-Geartech N63, worm gear Ø25, 24:1, input 80B14, stainless steel
HV82PN63UNIN050MFINN-RB3-D-OFIt features a gear ratio of 24:1 and a gear size N63, delivering reliable mechanical performance. The BCD input is 100 and BCD output 90, with an efficiency of 75%. The gear input shaft measures 19 mm, and the gear output shaft measures 25 mm. Designed for easy integration, it includes a gear motor interface of type 80B14. All critical components, including the gear itself, are made from stainless steel AISI 316L, offering excellent resistance to harsh cleaning agents and corrosive processes.
Specifications
Product description
Downloads
€1,120.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
24:1
BCD input
100
BCD output
90
Efficiency (%)
75
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N63
Output speed at 1400 RPM
58
Max output torque (Nm)
142
Max kW input at 1400 rpm
1.2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a specialized manufacturer of hygienic transmission solutions tailored to demanding industrial environments. Renowned for producing corrosion-resistant and durable components, Clean-Geartech focuses on applications in food processing, pharmaceuticals, marine, and other sectors requiring maximum reliability and hygiene. Their gear units are engineered with premium materials and high-quality surface finishes, catering to technical professionals who demand optimal performance and compliance with strict industry standards.Product Features and Applications:
The N63 worm gear unit with a 24:1 ratio is designed for torque multiplication and efficient speed reduction in compact spaces, making it ideal for precision-driven industrial automation systems.
The gear casing is made entirely from stainless steel AISI 316L, offering excellent resistance to corrosion, aggressive cleaning agents, and high humidity — perfect for cleanroom environments and washdown applications.
The 25 mm output shaft is also stainless steel (SS), ensuring long-term durability and minimal wear under continuous load and corrosive operating conditions, especially in food, dairy, and chemical processing industries.
The standard 80B14 input flange interface allows easy integration with IEC electric motors, ensuring compatibility with standard motor sizes and enabling flexible system design for engineers.
The gear input shaft of 19 mm supports secure mechanical coupling, simplifying assembly on site and minimizing downtime during equipment maintenance or part replacement.
With an efficiency of 75%, this gear unit balances torque transmission and energy use, suitable for medium-duty continuous operations where energy savings are important.
The worm gear design offers smooth, quiet operation with inherent self-locking capabilities depending on the load, making it suitable for load-holding applications like vertical conveyors or positioning systems.
Its compact N63 form factor is suitable for installations with strict space constraints, especially in modular machine designs and retrofit applications.
Ideal for use in industries requiring CE, ATEX, or FDA-compliant components due to the hygienic and non-porous stainless-steel housing that resists bacterial growth and supports rigorous sanitation standards.This gear solution fits technically demanding environments where reliability, corrosion resistance, and hygiene are critical — from automated food packaging lines to pharmaceutical mixers and marine handling systems.
