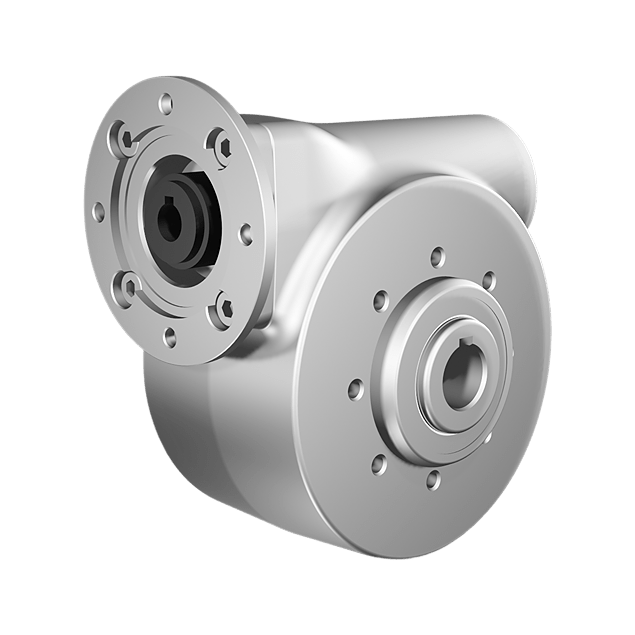

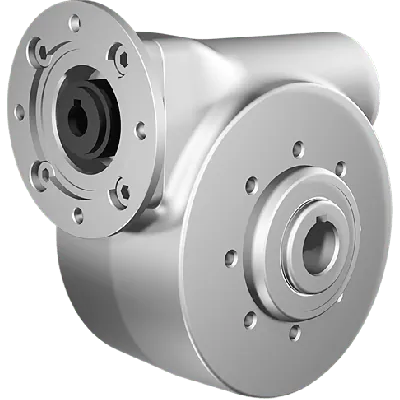

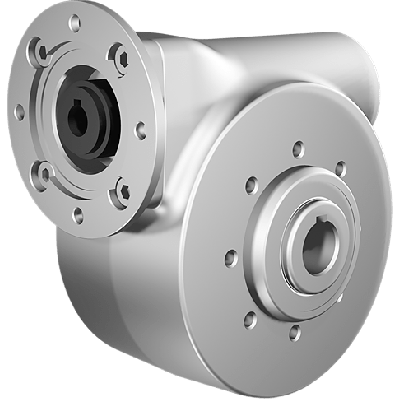

Clean-Geartech N63, worm gear Ø25, 24:1, input 71B14, stainless steel
HV82PN63UNIN050MFINN-QB3-C-OFIt features a gear ratio of 24:1, a gear input shaft diameter of 14 mm, and a gear output shaft diameter of 25 mm. The input interface is 71B14, making it compatible with a wide range of gear motors. The gear housing size is N63 and the efficiency rating is 75% under standard conditions.Constructed with gears made from AISI 316L stainless steel, this unit offers durability in corrosive environments. The BCD input is 85 mm and the BCD output is 90 mm, ensuring compatibility in modular installations.
Specifications
Product description
Downloads
€1,114.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
24:1
BCD input
85
BCD output
90
Efficiency (%)
75
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N63
Output speed at 1400 RPM
58
Max output torque (Nm)
142
Max kW input at 1400 rpm
1.2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description:Clean-Geartech is a renowned manufacturer specializing in advanced stainless steel transmission solutions for demanding industrial applications. Their gear units are engineered for high resistance to corrosion, longevity in harsh environments, and compatibility with hygiene-critical operations such as food processing, pharmaceuticals, and chemical industries.Key Features and Application Benefits:
• Manufactured entirely from AISI 316L stainless steel – offering exceptional corrosion resistance, making it ideal for aggressive environments including chemical processing and food-grade applications.
• Compact N63 housing size allows space-saving integration into machinery while delivering high mechanical strength—perfect for applications where installation space is limited.
• Integrated with a 71B14 motor interface—ensures precise compatibility with IEC-standard motors for seamless installation and system design flexibility.
• Features a robust Ø25 mm output shaft in stainless steel, allowing for direct coupling with driven components in hygiene-sensitive or washdown-required systems.
• Equipped with a stainless steel Ø14 mm input shaft for enhanced durability and reliable torque transfer in high-moisture or corrosive operational settings.
• Transmission ratio of 24:1 enables efficient torque multiplication in automated conveyor lines, mixers, or packing systems where controlled, reduced speed is needed with consistent output forces.
• Delivered efficiency of 75%—optimized for worm gear configurations, balancing torque output and energy consumption for continuous-duty industrial performance.
• BCD input: 85 mm and BCD output: 90 mm facilitate easy mechanical integration with standard system components, minimizing the need for custom brackets or adapters.
• Fully sealed and designed to withstand high-pressure cleaning (CIP/SIP compatible), ensuring long service life in operational environments that require regular sanitation.
• Maintenance-friendly design with minimal wear components—supports extended service intervals and reduced total cost of ownership for OEMs and end-users.This gear unit is specifically engineered for implementation in demanding sectors such as marine, pharmaceutical manufacturing, food production, and chemical handling, where hygiene, durability, and operational safety are critical.
• Manufactured entirely from AISI 316L stainless steel – offering exceptional corrosion resistance, making it ideal for aggressive environments including chemical processing and food-grade applications.
• Compact N63 housing size allows space-saving integration into machinery while delivering high mechanical strength—perfect for applications where installation space is limited.
• Integrated with a 71B14 motor interface—ensures precise compatibility with IEC-standard motors for seamless installation and system design flexibility.
• Features a robust Ø25 mm output shaft in stainless steel, allowing for direct coupling with driven components in hygiene-sensitive or washdown-required systems.
• Equipped with a stainless steel Ø14 mm input shaft for enhanced durability and reliable torque transfer in high-moisture or corrosive operational settings.
• Transmission ratio of 24:1 enables efficient torque multiplication in automated conveyor lines, mixers, or packing systems where controlled, reduced speed is needed with consistent output forces.
• Delivered efficiency of 75%—optimized for worm gear configurations, balancing torque output and energy consumption for continuous-duty industrial performance.
• BCD input: 85 mm and BCD output: 90 mm facilitate easy mechanical integration with standard system components, minimizing the need for custom brackets or adapters.
• Fully sealed and designed to withstand high-pressure cleaning (CIP/SIP compatible), ensuring long service life in operational environments that require regular sanitation.
• Maintenance-friendly design with minimal wear components—supports extended service intervals and reduced total cost of ownership for OEMs and end-users.This gear unit is specifically engineered for implementation in demanding sectors such as marine, pharmaceutical manufacturing, food production, and chemical handling, where hygiene, durability, and operational safety are critical.
