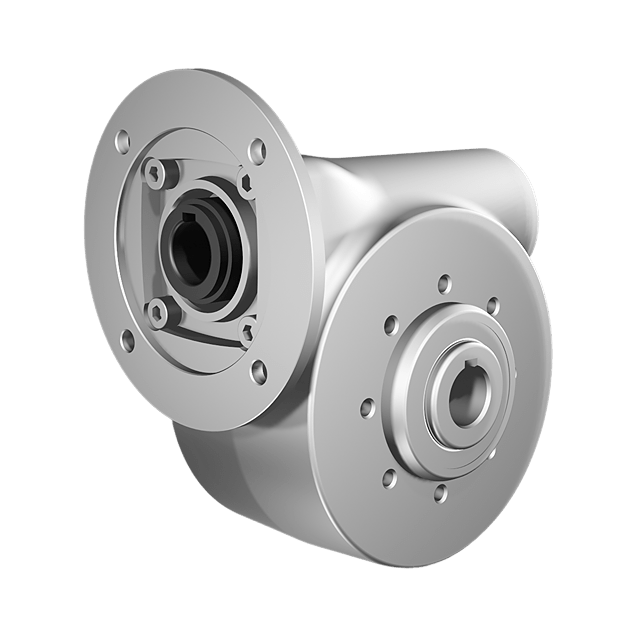

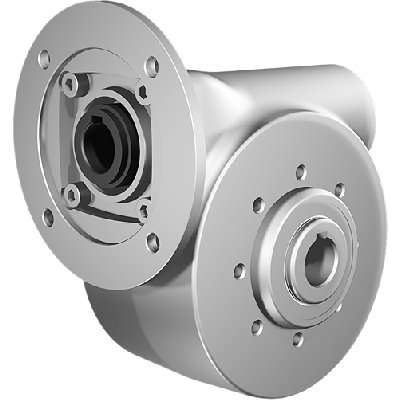

Clean-Geartech N63, worm gear Ø25, 19:1, input 90B14, stainless steel
HV82PN63UNIN040MFINN-TB3-E-OFKey attributes include: Gear size: N63 Gear ratio: 19:1 Input shaft diameter: 24 mm Output shaft diameter: 25 mm Input interface: 90B14 Gear material: Stainless steel AISI 316L Output: 90 Nm Input: 115 Nm Efficiency: 78% The stainless steel construction ensures resistance to harsh environments, making it suitable for applications with stringent hygiene and corrosion requirements.
Specifications
Product description
Downloads
€1,139.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
19:1
BCD input
115
BCD output
90
Efficiency (%)
78
Gear output shaft (mm)
25
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
N63
Output speed at 1400 RPM
74
Max output torque (Nm)
138
Max kW input at 1400 rpm
1.4
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a distinguished manufacturer specializing in high-performance gear solutions made from corrosion-resistant materials tailored for demanding applications. With a focus on hygiene, durability, and operational reliability, Clean-Geartech products are widely used in industries such as food & beverage, pharmaceuticals, chemicals, and marine environments. Their gearboxes are designed to meet strict requirements for cleanliness and operational lifespan under aggressive conditions.Product: Clean-Geartech N63 Worm Gearbox Ø25, 19:1, Input 90B14, Stainless Steel AISI 316LKey Features, Benefits, and Application Areas:
• Manufactured in high-grade stainless steel AISI 316L, making it ideal for hygienic and corrosive environments such as food production, pharmaceutical processing, and marine applications.
• SS solid output shaft (Ø25 mm) ensures enhanced resistance to chemical wear and corrosion, increasing service life in aggressive settings.
• 19:1 gear ratio provides effective speed reduction and torque multiplication, suitable for conveyor systems, mixers, automated handling systems, and dosing equipment where precision and torque control are critical.
• Equipped with stainless steel worm gear housing, designed to withstand washdowns and operate reliably in high humidity and chemically treated environments.
• Interfaces with standard IEC 90B14 motors, facilitating easy integration into existing drive configurations and reducing installation complexity.
• N63 gearbox size offers a compact form factor while delivering reliable power transmission for mid-range industrial applications.
• Input shaft diameter of Ø24 mm supports stable and safe coupling with a broad range of drive motors, ensuring compatibility and mechanical integrity.
• Operational efficiency of 78% balances torque output with energy consumption, making the unit suitable for continuous operation with minimal heat generation.
• Designed for technical specialists and engineers seeking robust, low-maintenance gear solutions for critical equipment in regulated environments.
• Manufactured in high-grade stainless steel AISI 316L, making it ideal for hygienic and corrosive environments such as food production, pharmaceutical processing, and marine applications.
• SS solid output shaft (Ø25 mm) ensures enhanced resistance to chemical wear and corrosion, increasing service life in aggressive settings.
• 19:1 gear ratio provides effective speed reduction and torque multiplication, suitable for conveyor systems, mixers, automated handling systems, and dosing equipment where precision and torque control are critical.
• Equipped with stainless steel worm gear housing, designed to withstand washdowns and operate reliably in high humidity and chemically treated environments.
• Interfaces with standard IEC 90B14 motors, facilitating easy integration into existing drive configurations and reducing installation complexity.
• N63 gearbox size offers a compact form factor while delivering reliable power transmission for mid-range industrial applications.
• Input shaft diameter of Ø24 mm supports stable and safe coupling with a broad range of drive motors, ensuring compatibility and mechanical integrity.
• Operational efficiency of 78% balances torque output with energy consumption, making the unit suitable for continuous operation with minimal heat generation.
• Designed for technical specialists and engineers seeking robust, low-maintenance gear solutions for critical equipment in regulated environments.
