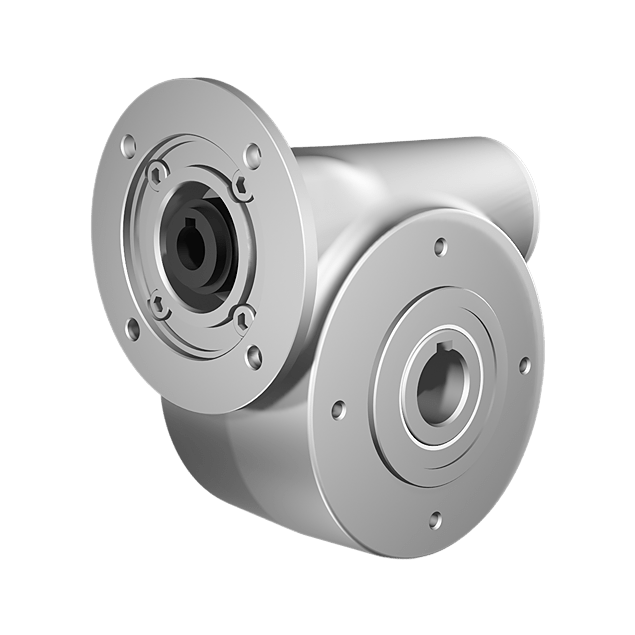

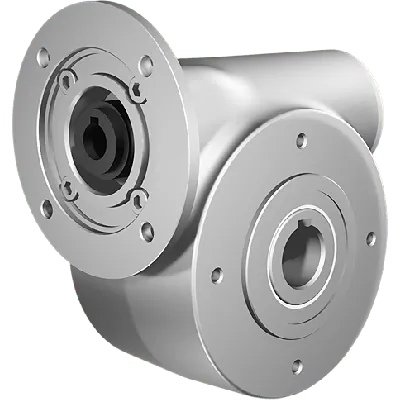

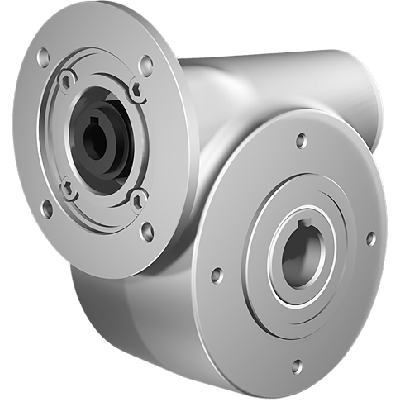

Clean-Geartech N63, worm gear Ø25, 19:1, input 80B14, stainless steel
HV82PN63UNIN040MFINN-RB3-D-OFThis unit features a ratio of 19:1 and delivers an efficiency of 78%. The gear input shaft diameter is 19 mm, while the output shaft measures 25 mm. It comes with a BCD input of 100 mm and a BCD output of 90 mm, compatible with a standard 80B14 motor interface. The gear type is N63, and all key load transfer components are constructed from stainless steel AISI 316L for enhanced chemical and corrosion resistance.
Specifications
Product description
Downloads
€1,120.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
19:1
BCD input
100
BCD output
90
Efficiency (%)
78
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N63
Output speed at 1400 RPM
74
Max output torque (Nm)
138
Max kW input at 1400 rpm
1.4
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech N63 worm gear unit is engineered specifically for demanding industrial applications where hygiene, reliability, and durability are crucial. Manufactured by Clean-Geartech, a leading supplier of premium-grade gear solutions for sectors such as pharmaceuticals, food processing, and chemical manufacturing, this gear is designed to withstand aggressive environments while ensuring seamless mechanical performance.
High-Grade Stainless Steel Construction (AISI 316L): The gear housing and components are constructed from corrosion-resistant stainless steel, making it ideal for washdown environments and hygienically sensitive industries such as food production, pharmaceuticals, and chemical processing.
Hollow Output Shaft Ø25 mm in Stainless Steel: Delivers robust torque transmission with superior resistance to wear and corrosion, perfect for integration into conveyor systems, mixers, and packaging equipment exposed to high moisture or chemical exposure.
Worm Gear Ratio 19:1: Offers high torque output with precise speed reduction, suitable for applications requiring controlled motion such as dosing units, lifting equipment, or process automation assemblies.
B14 Flange Motor Interface (Size 80): Optimized for seamless integration with standard IEC motors, allowing fast assembly and modular design flexibility in OEM machinery configurations.
Input Shaft Ø19 mm: Ensures compatibility with a wide range of coupling systems and motor configurations, supporting efficient power transmission and easy installation in compact spaces.
Efficiency at 78%: Designed to maximize energy usage while providing reliable operation and heat resistance under continuous load, improving system performance in high-duty cycles.
Compact Gear Size N63: Space-saving design without compromising performance. Ideal for mounting in confined areas within industrial machinery or automation lines.The Clean-Geartech N63 offers a balance of durability, performance, and hygiene. Its stainless-steel build and configurable interface options make it a prime choice for engineers and technical specialists working on long-life, low-maintenance installations under tough environmental conditions.
High-Grade Stainless Steel Construction (AISI 316L): The gear housing and components are constructed from corrosion-resistant stainless steel, making it ideal for washdown environments and hygienically sensitive industries such as food production, pharmaceuticals, and chemical processing.
Hollow Output Shaft Ø25 mm in Stainless Steel: Delivers robust torque transmission with superior resistance to wear and corrosion, perfect for integration into conveyor systems, mixers, and packaging equipment exposed to high moisture or chemical exposure.
Worm Gear Ratio 19:1: Offers high torque output with precise speed reduction, suitable for applications requiring controlled motion such as dosing units, lifting equipment, or process automation assemblies.
B14 Flange Motor Interface (Size 80): Optimized for seamless integration with standard IEC motors, allowing fast assembly and modular design flexibility in OEM machinery configurations.
Input Shaft Ø19 mm: Ensures compatibility with a wide range of coupling systems and motor configurations, supporting efficient power transmission and easy installation in compact spaces.
Efficiency at 78%: Designed to maximize energy usage while providing reliable operation and heat resistance under continuous load, improving system performance in high-duty cycles.
Compact Gear Size N63: Space-saving design without compromising performance. Ideal for mounting in confined areas within industrial machinery or automation lines.The Clean-Geartech N63 offers a balance of durability, performance, and hygiene. Its stainless-steel build and configurable interface options make it a prime choice for engineers and technical specialists working on long-life, low-maintenance installations under tough environmental conditions.
