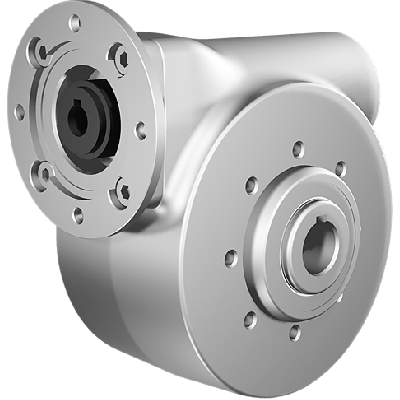

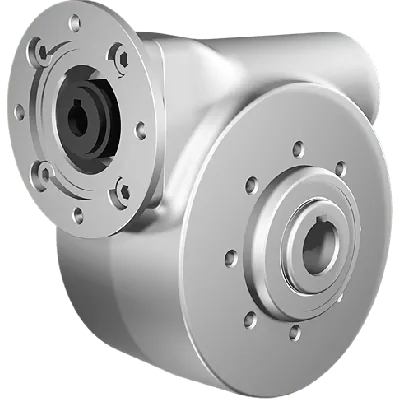

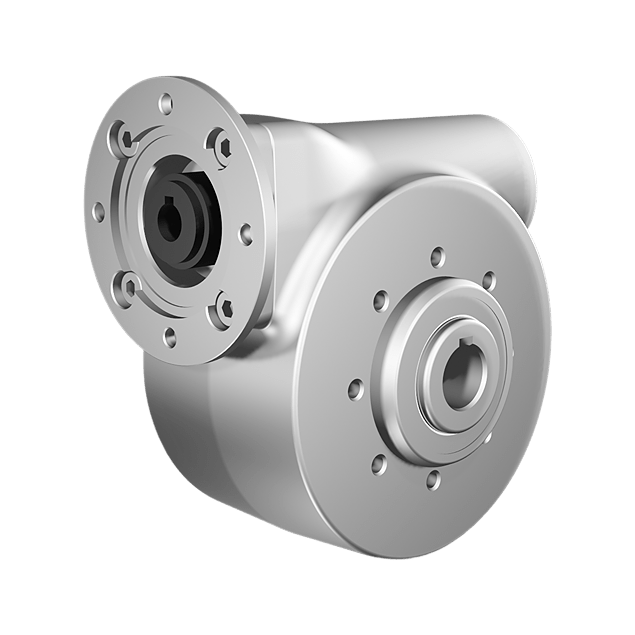

Clean-Geartech N63, worm gear Ø25, 19:1, input 71B14, stainless steel
HV82PN63UNIN040MFINN-QB3-C-OFThis worm gear features a gear size of N63 and a gear ratio of 19:1, making it suitable for applications requiring torque multiplication at moderate speeds. The gear input shaft diameter is 14 mm, while the gear output shaft diameter is 25 mm for compatibility with standard installations.Equipped with a 71B14 motor interface, it ensures straightforward motor integration. The gear wheels are made from stainless steel AISI 316L, providing high resistance to corrosion. The efficiency is 78%, with a BCD input of 85 mm and a BCD output of 90 mm.
Specifications
Product description
Downloads
€1,114.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
19:1
BCD input
85
BCD output
90
Efficiency (%)
78
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N63
Output speed at 1400 RPM
74
Max output torque (Nm)
138
Max kW input at 1400 rpm
1.4
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a well-established manufacturer specializing in high-performance gear solutions for demanding industrial and engineering applications. With a strong focus on hygiene, durability, and precision, Clean-Geartech delivers geared products that meet the stringent requirements of sectors such as food processing, pharmaceuticals, chemical processing, and marine environments. Their product line emphasizes material quality, operational reliability, and compliance with industry standards.Product: Clean-Geartech N63, Worm Gear Ø25, 19:1, Input 71B14, Stainless SteelKey Features, Benefits, and Application Possibilities:
Stainless Steel AISI 316L housing ensures exceptional corrosion resistance, making it ideal for environments with aggressive cleaning protocols, high humidity, or salt exposure such as food, marine, and chemical industries.
Stainless steel Ø25 mm output shaft provides enhanced durability and hygiene – suitable for cleanroom environments and applications requiring frequent washdowns.
Input shaft diameter of 14 mm allows compatibility with standard electric motors configured for the 71B14 motor interface, streamlining installation in automation and conveyor systems.
Motor interface size 71B14 ensures mechanical compatibility with a wide range of IEC standard motors, offering versatile integration with existing equipment setups.
Gear ratio of 19:1 delivers high torque transmission with reduced output speed – especially beneficial for applications requiring precise torque control, such as dosing pumps, turntables, or lifting mechanisms.
Overall efficiency of 78% optimizes energy usage while maintaining effective power delivery – beneficial for continuous or high-duty-cycle operations with energy efficiency requirements.
Compact size N63 provides a space-efficient solution for machinery with limited installation room, such as packaging equipment and automated transport systems.
BCD input of 85 mm and output of 90 mm support compatibility with a wide range of coupling systems and mechanical interfaces used in modular manufacturing environments.Applications:
Designed for hygienic and corrosive environments including beverage processing, dairy facilities, and offshore installations.
Ideal for use in automation systems, where precision, cleanliness, and compact assembly are critical engineering considerations.
Suitable for pharmaceutical production equipment where stainless steel construction and resistance to chemical exposure are required.
Stainless Steel AISI 316L housing ensures exceptional corrosion resistance, making it ideal for environments with aggressive cleaning protocols, high humidity, or salt exposure such as food, marine, and chemical industries.
Stainless steel Ø25 mm output shaft provides enhanced durability and hygiene – suitable for cleanroom environments and applications requiring frequent washdowns.
Input shaft diameter of 14 mm allows compatibility with standard electric motors configured for the 71B14 motor interface, streamlining installation in automation and conveyor systems.
Motor interface size 71B14 ensures mechanical compatibility with a wide range of IEC standard motors, offering versatile integration with existing equipment setups.
Gear ratio of 19:1 delivers high torque transmission with reduced output speed – especially beneficial for applications requiring precise torque control, such as dosing pumps, turntables, or lifting mechanisms.
Overall efficiency of 78% optimizes energy usage while maintaining effective power delivery – beneficial for continuous or high-duty-cycle operations with energy efficiency requirements.
Compact size N63 provides a space-efficient solution for machinery with limited installation room, such as packaging equipment and automated transport systems.
BCD input of 85 mm and output of 90 mm support compatibility with a wide range of coupling systems and mechanical interfaces used in modular manufacturing environments.Applications:
Designed for hygienic and corrosive environments including beverage processing, dairy facilities, and offshore installations.
Ideal for use in automation systems, where precision, cleanliness, and compact assembly are critical engineering considerations.
Suitable for pharmaceutical production equipment where stainless steel construction and resistance to chemical exposure are required.
