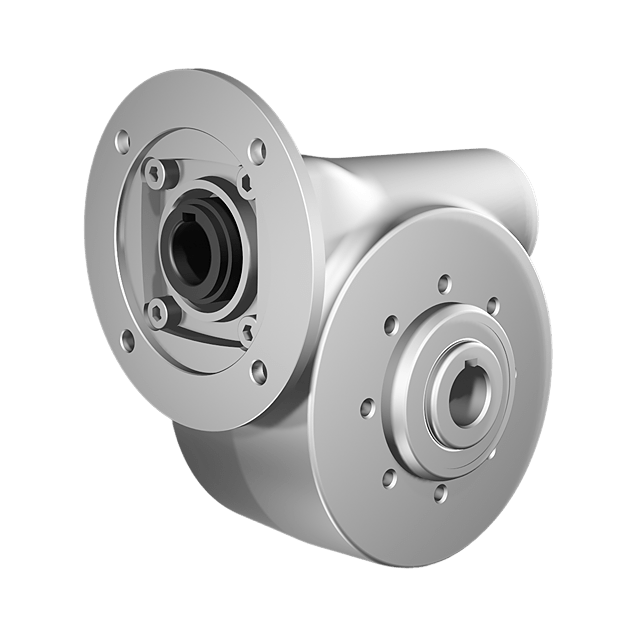

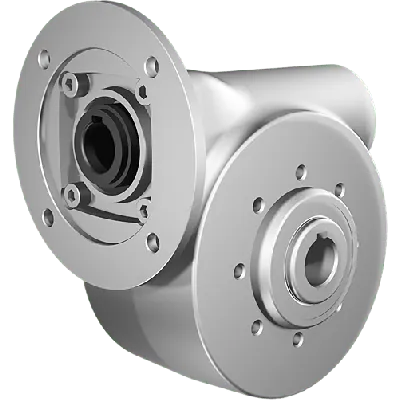

Clean-Geartech N63, worm gear Ø25, 15:1, input 90B14, stainless steel
HV82PN63UNIN030MFINN-TB3-E-OFIt features a gear ratio of 15:1 and is built with a stainless steel (AISI 316L) gear housing for durability in aggressive environments. The unit provides a BCD input of 115 mm and a BCD output of 90 mm, with a gear input shaft diameter of 24 mm and a gear output shaft diameter of 25 mm. Interface compatibility is ensured with a 90B14 motor flange. The gear unit has an efficiency of 79% and corresponds to gear size N63.Designed for technical reliability, the Clean-Geartech N63 delivers consistent performance in stainless-steel-critical environments.
Specifications
Product description
Downloads
€1,139.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
15:1
BCD input
115
BCD output
90
Efficiency (%)
79
Gear output shaft (mm)
25
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
N63
Output speed at 1400 RPM
93
Max output torque (Nm)
138
Max kW input at 1400 rpm
1.7
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description:Clean-Geartech is a leading European manufacturer specializing in high-performance stainless steel gear solutions for demanding industrial applications. Known for precision engineering and hygienic design, Clean-Geartech gearboxes are engineered to meet the highest expectations in terms of reliability, corrosion resistance, and efficiency—suitable for industries where cleanliness and durability are critical, such as food processing, pharmaceuticals, and chemical manufacturing.Key Features and Application Benefits:
Stainless Steel Construction (AISI 316L): Ensures long-lasting corrosion resistance and superior hygiene, making the gear ideal in washdown and high-moisture environments.
Stainless Steel Ø25 mm Hollow Output Shaft: Provides superior load capacity and durability with minimal maintenance in harsh conditions.
15:1 Gear Ratio: Offers significant torque multiplication and speed reduction, suitable for precise motion control in conveyors, mixers, and packaging machinery.
Compact Gear Size N63: Enables integration in space-limited applications without compromising performance.
90B14 Input Motor Flange: Standardized motor interface simplifies installation with IEC B14 motors, promoting system compatibility and flexibility.
24 mm Input Shaft Diameter: Ensures robust mechanical connection for high-strength input torque transmission.
High Efficiency at 79%: Enhances energy savings and reduces thermal losses during continuous-duty operations.
Output BCD 90 mm and Input BCD 115 mm: Designed for precise mounting compatibility with industry-standard components.
Lubrication-Free Operation Option (with appropriate setup): Reduces maintenance efforts and prevents contamination—vital for cleanroom and food-industry use.
Suitable for Critical Environments: Perfect for applications exposed to aggressive cleaning agents, saltwater, or acidic environments—such as meat processing or dairy plants.This gear unit combines Clean-Geartech’s engineering excellence with stainless steel robustness to deliver a high-performance, low-maintenance solution tailored for demanding industrial applications.
Stainless Steel Construction (AISI 316L): Ensures long-lasting corrosion resistance and superior hygiene, making the gear ideal in washdown and high-moisture environments.
Stainless Steel Ø25 mm Hollow Output Shaft: Provides superior load capacity and durability with minimal maintenance in harsh conditions.
15:1 Gear Ratio: Offers significant torque multiplication and speed reduction, suitable for precise motion control in conveyors, mixers, and packaging machinery.
Compact Gear Size N63: Enables integration in space-limited applications without compromising performance.
90B14 Input Motor Flange: Standardized motor interface simplifies installation with IEC B14 motors, promoting system compatibility and flexibility.
24 mm Input Shaft Diameter: Ensures robust mechanical connection for high-strength input torque transmission.
High Efficiency at 79%: Enhances energy savings and reduces thermal losses during continuous-duty operations.
Output BCD 90 mm and Input BCD 115 mm: Designed for precise mounting compatibility with industry-standard components.
Lubrication-Free Operation Option (with appropriate setup): Reduces maintenance efforts and prevents contamination—vital for cleanroom and food-industry use.
Suitable for Critical Environments: Perfect for applications exposed to aggressive cleaning agents, saltwater, or acidic environments—such as meat processing or dairy plants.This gear unit combines Clean-Geartech’s engineering excellence with stainless steel robustness to deliver a high-performance, low-maintenance solution tailored for demanding industrial applications.
