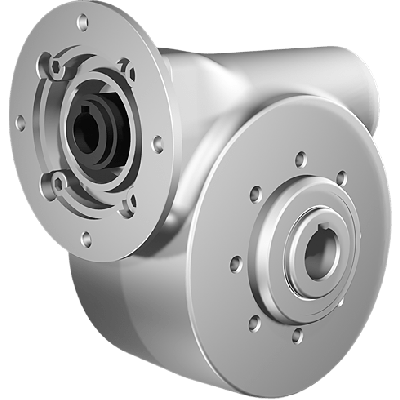

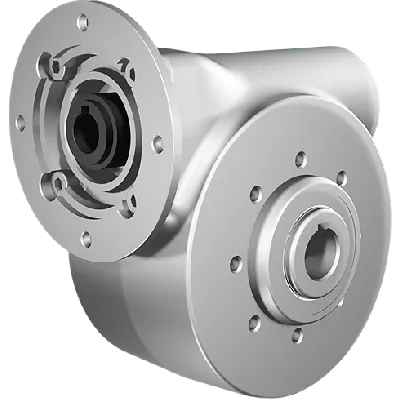

Clean-Geartech N63, worm gear Ø25, 15:1, input 80B14, stainless steel
HV82PN63UNIN030MFINN-RB3-D-OFThis unit features a 15:1 gear ratio and a 79% efficiency. The input shaft diameter is 19 mm, while the output shaft measures 25 mm. The gear size is N63, compatible with a Gear motor interface of 80B14. The gearbox includes a stainless steel AISI 316L gear set, ensuring durability in corrosive conditions. Designed for load transfer through BCD input: 100 mm and BCD output: 90 mm, this configuration provides flexible mounting and integration options.
Specifications
Product description
Downloads
€1,120.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
15:1
BCD input
100
BCD output
90
Efficiency (%)
79
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N63
Output speed at 1400 RPM
93
Max output torque (Nm)
138
Max kW input at 1400 rpm
1.7
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description:Clean-Geartech is a leading manufacturer of hygienic and durable drive solutions, specializing in stainless steel gear units designed for use in demanding industrial and process environments. Known for their robust construction and high resistance to aggressive cleaning agents, Clean-Geartech products are ideal for food processing, pharmaceutical, chemical, and marine industries requiring maximum reliability and minimal contamination risk.Key Features, Applications, and Benefits:
Stainless Steel Housing (AISI 316L) – Provides excellent corrosion resistance, making the gear highly suitable for hygiene-critical environments such as food, pharmaceutical, and chemical processing.
Stainless Steel Ø25 mm Output Shaft – Offers high strength and corrosion resistance, ideal for applications exposed to frequent washdowns or aggressive environments.
19 mm Input Shaft – Standardized dimension allows easy integration with many electric motors or power transmission components for flexible system design.
Worm Gear Ratio 15:1 – Ensures controlled speed reduction with increased torque output, suitable for conveyors, mixers, pumps, and packaging lines.
80B14 Motor Interface – Compatible with IEC standard motors, simplifying assembly and maintenance across many systems and applications.
High Durability Worm Gear Design – Ensures reliable performance under continuous load and harsh conditions common in industrial automation, food-grade machinery, and chemical processing equipment.
Compact Gear Size N63 – Maximizes power transfer in space-restricted installations while maintaining high mechanical integrity.
Efficiency of 79% – Excellent efficiency for a worm gear system, providing optimal energy use and reduced operational costs over time.
Fully Enclosed Construction – Prevents ingress of dust, water, and contaminants, supporting use in cleanroom environments and IP-rated machinery. This gear unit is engineered for performance, corrosion resistance, and seamless integration, making it the ideal choice for technical applications requiring uncompromised cleanliness and reliability.
Stainless Steel Housing (AISI 316L) – Provides excellent corrosion resistance, making the gear highly suitable for hygiene-critical environments such as food, pharmaceutical, and chemical processing.
Stainless Steel Ø25 mm Output Shaft – Offers high strength and corrosion resistance, ideal for applications exposed to frequent washdowns or aggressive environments.
19 mm Input Shaft – Standardized dimension allows easy integration with many electric motors or power transmission components for flexible system design.
Worm Gear Ratio 15:1 – Ensures controlled speed reduction with increased torque output, suitable for conveyors, mixers, pumps, and packaging lines.
80B14 Motor Interface – Compatible with IEC standard motors, simplifying assembly and maintenance across many systems and applications.
High Durability Worm Gear Design – Ensures reliable performance under continuous load and harsh conditions common in industrial automation, food-grade machinery, and chemical processing equipment.
Compact Gear Size N63 – Maximizes power transfer in space-restricted installations while maintaining high mechanical integrity.
Efficiency of 79% – Excellent efficiency for a worm gear system, providing optimal energy use and reduced operational costs over time.
Fully Enclosed Construction – Prevents ingress of dust, water, and contaminants, supporting use in cleanroom environments and IP-rated machinery. This gear unit is engineered for performance, corrosion resistance, and seamless integration, making it the ideal choice for technical applications requiring uncompromised cleanliness and reliability.
