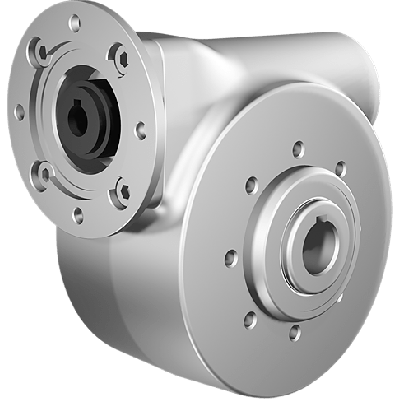

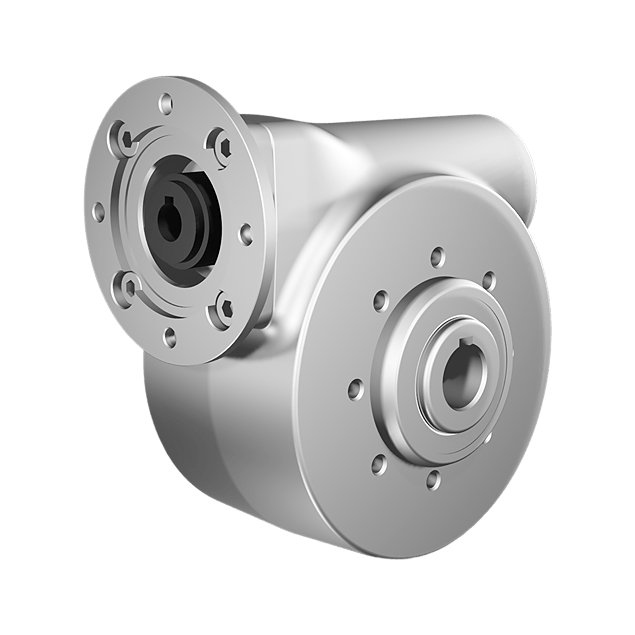

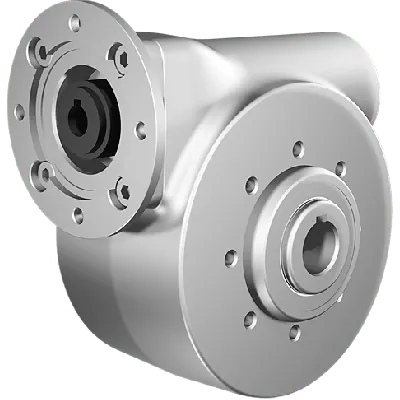

Clean-Geartech N63, worm gear Ø25, 15:1, input 71B14, stainless steel
HV82PN63UNIN030MFINN-QB3-C-OFThe Clean-Geartech N63, worm gear Ø25, 15:1, input 71B14, stainless steel is designed for demanding applications requiring corrosion-resistant performance. It features a stainless steel AISI 316L gear set and a 25 mm output shaft. The unit has a 15:1 gear ratio and a 71B14 gear motor interface. With a 14 mm input shaft and a gear size N63, it delivers reliable torque transmission. The efficiency is 79%, with a BCD input of 85 mm and a BCD output of 90 mm. Suitable for hygienic and corrosive environments.
Specifications
Product description
Downloads
€1,114.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
15:1
BCD input
85
BCD output
90
Efficiency (%)
79
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N63
Output speed at 1400 RPM
93
Max output torque (Nm)
138
Max kW input at 1400 rpm
1.7
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description: Clean-Geartech is a reputable manufacturer recognized for delivering high-quality stainless steel gearing solutions tailored for demanding industrial environments. With a strong focus on hygienic design, corrosion resistance, and mechanical performance, Clean-Geartech products are widely used in the food processing, pharmaceutical, marine, and chemical industries.Key Features and Application Benefits:
• Robust Housing: Manufactured in AISI 316L stainless steel, offering exceptional corrosion resistance, making it ideal for applications in aggressive or washdown-prone environments such as food, pharmaceutical, and marine industries.
• Output Shaft Ø25 mm in Stainless Steel: The stainless steel output shaft ensures high durability and hygiene, supporting demanding load conditions and frequent cleaning cycles without degradation.
• High Torque Transmission: With a 15:1 gear ratio and 79% efficiency, the worm gear provides reliable torque multiplication, ideal for precise and powerful motion control in compact installations.
• Input Shaft Ø14 mm: Designed for standardized coupling to motors, simplifying system integration and ensuring compatibility with commonly used motor types across industry sectors.
• Motor Interface 71B14: Standard flange mounting ensures easy compatibility with B14 motors, reducing downtime and simplifying installation in engineered systems.
• Gear Size N63: Compact footprint balances powerful output with space-saving design, ideal for installations with spatial limitations such as conveyor systems, dosing mechanisms, or lifting platforms.
• Fully Sealed Design: The enclosure is designed for IP-rated sealing, preventing ingress of dust, water, and chemicals, ensuring longevity and low maintenance requirements.
• Versatile Industrial Use: Preferred in hygienic and corrosive setups including dairy processing equipment, bottling lines, fish processing, and chemical dosing pumps.
• Energy Efficient Operation: With a working efficiency of 79%, the gearbox lowers energy consumption while maintaining mechanical robustness in continuous or intermittent duty cycles.
• Reliable Brand Support: Backed by Clean-Geartech’s stringent quality control and technical support services, ensuring peace of mind for integration into critical industrial machinery.
• Robust Housing: Manufactured in AISI 316L stainless steel, offering exceptional corrosion resistance, making it ideal for applications in aggressive or washdown-prone environments such as food, pharmaceutical, and marine industries.
• Output Shaft Ø25 mm in Stainless Steel: The stainless steel output shaft ensures high durability and hygiene, supporting demanding load conditions and frequent cleaning cycles without degradation.
• High Torque Transmission: With a 15:1 gear ratio and 79% efficiency, the worm gear provides reliable torque multiplication, ideal for precise and powerful motion control in compact installations.
• Input Shaft Ø14 mm: Designed for standardized coupling to motors, simplifying system integration and ensuring compatibility with commonly used motor types across industry sectors.
• Motor Interface 71B14: Standard flange mounting ensures easy compatibility with B14 motors, reducing downtime and simplifying installation in engineered systems.
• Gear Size N63: Compact footprint balances powerful output with space-saving design, ideal for installations with spatial limitations such as conveyor systems, dosing mechanisms, or lifting platforms.
• Fully Sealed Design: The enclosure is designed for IP-rated sealing, preventing ingress of dust, water, and chemicals, ensuring longevity and low maintenance requirements.
• Versatile Industrial Use: Preferred in hygienic and corrosive setups including dairy processing equipment, bottling lines, fish processing, and chemical dosing pumps.
• Energy Efficient Operation: With a working efficiency of 79%, the gearbox lowers energy consumption while maintaining mechanical robustness in continuous or intermittent duty cycles.
• Reliable Brand Support: Backed by Clean-Geartech’s stringent quality control and technical support services, ensuring peace of mind for integration into critical industrial machinery.
