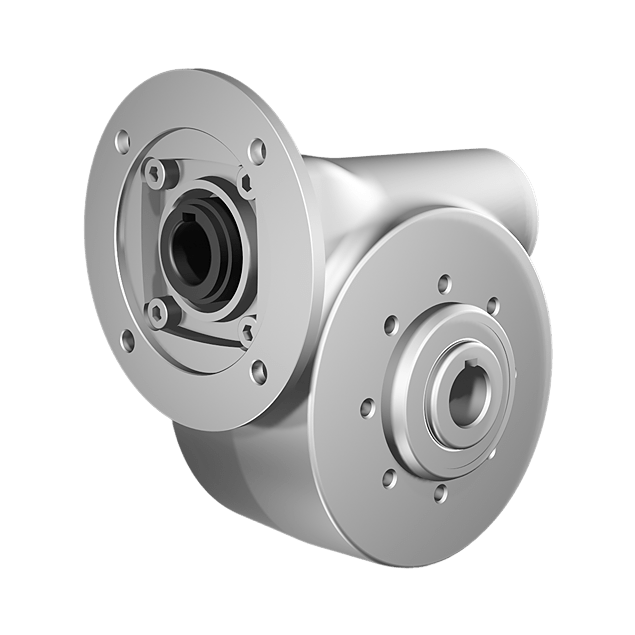

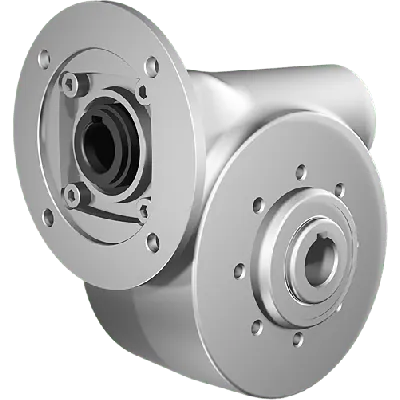

Clean-Geartech N63, worm gear Ø25, 10:1, input 90B14, stainless steel
HV82PN63UNIN020MFINN-TB3-E-OFThe Clean-Geartech N63, worm gear Ø25, 10:1, input 90B14, stainless steel, is a compact and durable worm gearbox designed for demanding industrial applications. It features a gear reduction ratio of 10:1 and delivers an efficiency of 81%. The gearbox input shaft diameter is 24 mm, while the output shaft diameter is 25 mm. The gear motor interface is 90B14 and the gear size corresponds to N63. Built for strength and corrosion resistance, it includes gears made from stainless steel AISI 316L. Input and output torque values are supported by a BCD input of 115 mm and BCD output of 90 mm.
Specifications
Product description
Downloads
€1,139.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
10:1
BCD input
115
BCD output
90
Efficiency (%)
81
Gear output shaft (mm)
25
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
N63
Output speed at 1400 RPM
140
Max output torque (Nm)
134
Max kW input at 1400 rpm
2.4
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description: Clean-Geartech is a trusted manufacturer specializing in premium-grade stainless steel gear solutions for demanding industrial environments. Known for their exceptional corrosion resistance, reliability, and hygienic design, Clean-Geartech products are ideal for food processing, pharmaceutical, marine, and other applications where cleanliness and durability are paramount.Technical Highlights and Application Features:
• Full stainless steel AISI 316L construction ensures outstanding corrosion resistance, making it ideal for harsh environments such as food and beverage, chemical processing, and offshore installations.
• Efficient worm gear design with a 10:1 ratio delivers smooth and reliable torque transmission, suited for low-speed, high-load applications where space-saving and precision control are required.
• Compact N63 gear size with integrated 90B14 motor interface allows seamless installation with standard IEC motors, ensuring compatibility and reducing assembly time.
• 25 mm solid output shaft in stainless steel offers increased durability and rust resistance, perfect for washdown environments or exposure to aggressive cleaning agents.
• 24 mm input shaft dimension enables connection with a range of drive units, enhancing integration flexibility in automated systems or custom machinery designs.
• 90 mm x 14 BCD input flange supports sturdy mounting in horizontal or vertical orientations, optimizing usage in tight or configurable system layouts.
• Energy efficiency rating of 81% allows for cost-effective performance without compromising output reliability, supporting sustainability goals and reduced operational costs.
• Designed for hygienic critical industries including pharmaceutical production, meat and seafood processing, packaging lines, and cleanroom automation systems.
• Superior sealing ensures protection against ingress from water, dust, and contaminants, increasing lifespan and minimizing required maintenance.
• Robust housing design reduces vibration and noise, supporting smoother operation in high-precision or continuous duty applications.
• Full stainless steel AISI 316L construction ensures outstanding corrosion resistance, making it ideal for harsh environments such as food and beverage, chemical processing, and offshore installations.
• Efficient worm gear design with a 10:1 ratio delivers smooth and reliable torque transmission, suited for low-speed, high-load applications where space-saving and precision control are required.
• Compact N63 gear size with integrated 90B14 motor interface allows seamless installation with standard IEC motors, ensuring compatibility and reducing assembly time.
• 25 mm solid output shaft in stainless steel offers increased durability and rust resistance, perfect for washdown environments or exposure to aggressive cleaning agents.
• 24 mm input shaft dimension enables connection with a range of drive units, enhancing integration flexibility in automated systems or custom machinery designs.
• 90 mm x 14 BCD input flange supports sturdy mounting in horizontal or vertical orientations, optimizing usage in tight or configurable system layouts.
• Energy efficiency rating of 81% allows for cost-effective performance without compromising output reliability, supporting sustainability goals and reduced operational costs.
• Designed for hygienic critical industries including pharmaceutical production, meat and seafood processing, packaging lines, and cleanroom automation systems.
• Superior sealing ensures protection against ingress from water, dust, and contaminants, increasing lifespan and minimizing required maintenance.
• Robust housing design reduces vibration and noise, supporting smoother operation in high-precision or continuous duty applications.
