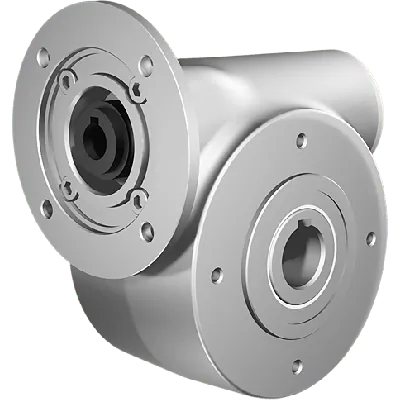

Clean-Geartech N50, worm gear Ø25, 80:1, input 71B14, stainless steel
HV82PN50UNIN100MFINN-QB3-C-OFThis gear unit features a gear size: N50, a gear ratio: 80:1, and a gear input shaft diameter: 14 mm. The gear output shaft measures 25 mm. The gear motor interface is 71B14, providing compatibility with standard motor fittings. Constructed with stainless steel AISI 316L gears, the unit ensures durability in aggressive or hygienic settings.Additionally, it offers BCD input: 85 mm, BCD output: 94 mm, and operates at an efficiency of 54%.
Specifications
Product description
Downloads
€735.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
80:1
BCD input
85
BCD output
94
Efficiency (%)
54
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N50
Output speed at 1400 RPM
17.5
Max output torque (Nm)
57
Max kW input at 1400 rpm
0.19
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a cutting-edge manufacturer specializing in corrosion-resistant transmission components designed for the most demanding industrial environments. With a focus on hygienic and robust gear solutions, Clean-Geartech products are widely used in food processing, pharmaceutical, marine, and chemical industries where both hygiene standards and mechanical reliability are essential.Product: Clean-Geartech N50 Worm Gearbox Gear Ratio: 80:1 Gear Size: N50 Input Interface: Motor flange 71B14 Gear Input Shaft: Ø14 mm Gear Output Shaft: Ø25 mm (Solid Stainless Steel) Gear Housing Material: Stainless Steel AISI 316L Overall Efficiency: 54% Input BCD: 85 mm Output BCD: 94 mmMain Features & Application Benefits:
✓ The housing is made from corrosion-resistant stainless steel AISI 316L, making it highly durable and ideal for aggressive environments, including food and chemical processing lines.
✓ Stainless steel Ø25 mm solid output shaft provides superior load-bearing capacity and is resistant to oxidation, making it suitable for continuous operation in wet or washdown areas.
✓ Compact N50 frame with a high gear ratio of 80:1 offers substantial torque multiplication, supporting heavy-duty performance in constrained mechanical spaces.
✓ 71B14 motor interface ensures compatibility with a wide range of IEC standard motors, simplifying system integration and reducing downtime during installation or maintenance.
✓ Stainless steel worm gear components ensure longevity and minimal wear, improving total cost of ownership in high-cycle industrial machinery.
✓ Output flange with BCD 94 mm allows flexible mounting and seamless adaptation in modular equipment or conveyors.
✓ Gear efficiency of 54% is suitable for applications where torque output is prioritized over speed, such as mixers, rotary valves, and indexing tables.
✓ Well suited for hygienic environments with frequent sanitation cycles such as food & beverage manufacturing and pharmaceutical packaging plants.Designed for performance and endurance, the Clean-Geartech N50 worm gear unit offers a premium solution for engineers and maintenance professionals seeking reliable, corrosion-proof operation in critical applications.
✓ The housing is made from corrosion-resistant stainless steel AISI 316L, making it highly durable and ideal for aggressive environments, including food and chemical processing lines.
✓ Stainless steel Ø25 mm solid output shaft provides superior load-bearing capacity and is resistant to oxidation, making it suitable for continuous operation in wet or washdown areas.
✓ Compact N50 frame with a high gear ratio of 80:1 offers substantial torque multiplication, supporting heavy-duty performance in constrained mechanical spaces.
✓ 71B14 motor interface ensures compatibility with a wide range of IEC standard motors, simplifying system integration and reducing downtime during installation or maintenance.
✓ Stainless steel worm gear components ensure longevity and minimal wear, improving total cost of ownership in high-cycle industrial machinery.
✓ Output flange with BCD 94 mm allows flexible mounting and seamless adaptation in modular equipment or conveyors.
✓ Gear efficiency of 54% is suitable for applications where torque output is prioritized over speed, such as mixers, rotary valves, and indexing tables.
✓ Well suited for hygienic environments with frequent sanitation cycles such as food & beverage manufacturing and pharmaceutical packaging plants.Designed for performance and endurance, the Clean-Geartech N50 worm gear unit offers a premium solution for engineers and maintenance professionals seeking reliable, corrosion-proof operation in critical applications.
