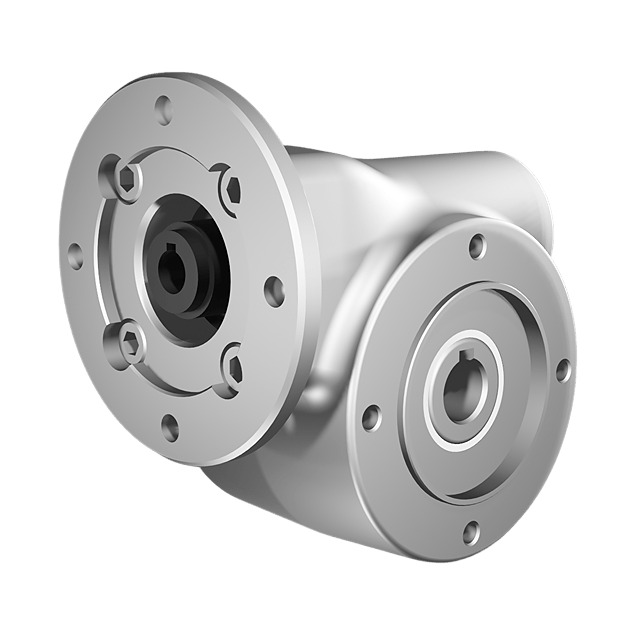

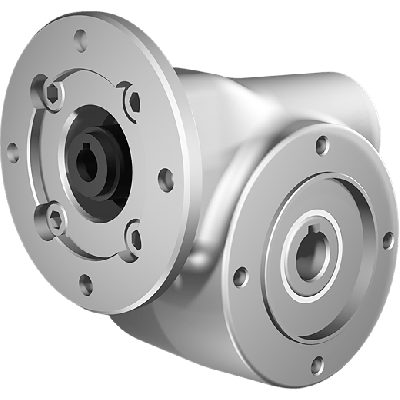

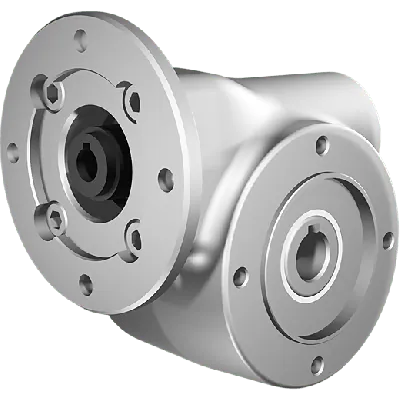

Clean-Geartech N50, worm gear Ø25, 7:1, input 80B14, stainless steel
HV82PN50UNIN010MFINN-RB3-D-OFWith a gear ratio of 7:1 and efficiency of 82%, this unit ensures reliable torque conversion. The gear input shaft diameter is 19 mm, while the output shaft diameter is 25 mm. It features a gear motor interface of 80B14 and a gear size of N50 for compatibility with industry-standard motors. Constructed with a stainless steel AISI 316L gear housing and wheel, and a stainless steel hollow output shaft, it offers enhanced corrosion resistance in demanding environments. The BCD input is 100 and the BCD output is 94, supporting standard mechanical integration.
Specifications
Product description
Downloads
€746.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
7:1
BCD input
100
BCD output
94
Efficiency (%)
82
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N50
Output speed at 1400 RPM
200
Max output torque (Nm)
57
Max kW input at 1400 rpm
1.5
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description: Clean-Geartech is a specialized manufacturer of high-performance stainless steel gear units designed for demanding environments in the pharmaceutical, food, chemical, and marine industries. The company is recognized for precision engineering, superior material quality, and reliable drivetrain solutions that meet strict hygienic and durability requirements.Product Description: The Clean-Geartech N50 worm gear reducer is a robust power transmission component crafted entirely from corrosion-resistant AISI 316L stainless steel. With a gear ratio of 7:1 and an input interface of 80B14, it offers superior durability, hygiene, and torque conversion, making it ideal for hygienic or corrosive environments.Key Features, Benefits, and Application Possibilities:
‣ Full AISI 316L stainless steel housing ensures maximum corrosion resistance — ideal for offshore, marine, pharmaceutical, and food processing environments.
‣ 7:1 gear ratio delivers consistent torque output, improving mechanical efficiency in low-speed machinery like conveyors, mixers, and agitators.
‣ Hollow output shaft Ø25 mm (also in stainless steel) allows flexible coupling with various output shafts or direct mounting, simplifying integration into existing systems.
‣ Input shaft Ø19 mm with 80B14 motor interface supports fast and standard motor mounting for easy adaptability to existing drive setups.
‣ High-efficiency rating of 82% reduces energy consumption and heat generation, increasing lifespan and reliability in continuous-duty operations.
‣ Compact gear size N50 is suitable for installations with restricted space while maintaining high load capacity.
‣ Compatible with hygienic wash-down procedures — complies with strict CIP (Clean-In-Place) and SIP (Sterilize-In-Place) processes in regulated industries.
‣ Smooth surface design and non-paint finish minimize contamination risk and particle accumulation, supporting GMP compliance.
‣ Designed for technical specialists requiring proven durability and performance in aggressive or sanitary operational environments.Ideal for integration in food production lines, pharmaceutical machinery, chemical processing equipment, marine winches, and any application demanding resilient, low-maintenance motion conversion components.
‣ Full AISI 316L stainless steel housing ensures maximum corrosion resistance — ideal for offshore, marine, pharmaceutical, and food processing environments.
‣ 7:1 gear ratio delivers consistent torque output, improving mechanical efficiency in low-speed machinery like conveyors, mixers, and agitators.
‣ Hollow output shaft Ø25 mm (also in stainless steel) allows flexible coupling with various output shafts or direct mounting, simplifying integration into existing systems.
‣ Input shaft Ø19 mm with 80B14 motor interface supports fast and standard motor mounting for easy adaptability to existing drive setups.
‣ High-efficiency rating of 82% reduces energy consumption and heat generation, increasing lifespan and reliability in continuous-duty operations.
‣ Compact gear size N50 is suitable for installations with restricted space while maintaining high load capacity.
‣ Compatible with hygienic wash-down procedures — complies with strict CIP (Clean-In-Place) and SIP (Sterilize-In-Place) processes in regulated industries.
‣ Smooth surface design and non-paint finish minimize contamination risk and particle accumulation, supporting GMP compliance.
‣ Designed for technical specialists requiring proven durability and performance in aggressive or sanitary operational environments.Ideal for integration in food production lines, pharmaceutical machinery, chemical processing equipment, marine winches, and any application demanding resilient, low-maintenance motion conversion components.
