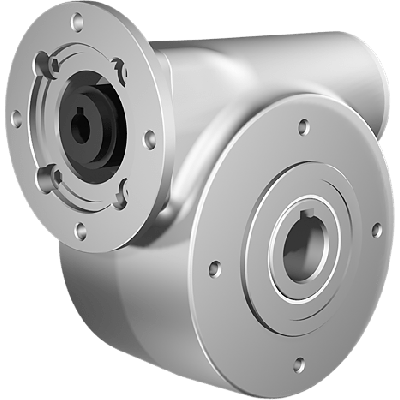

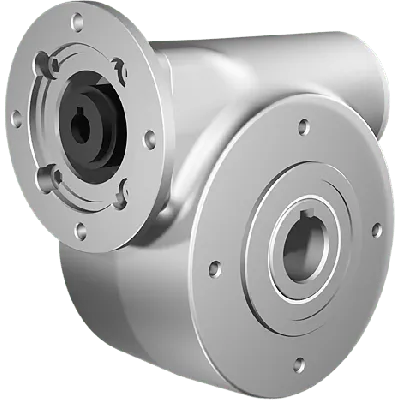

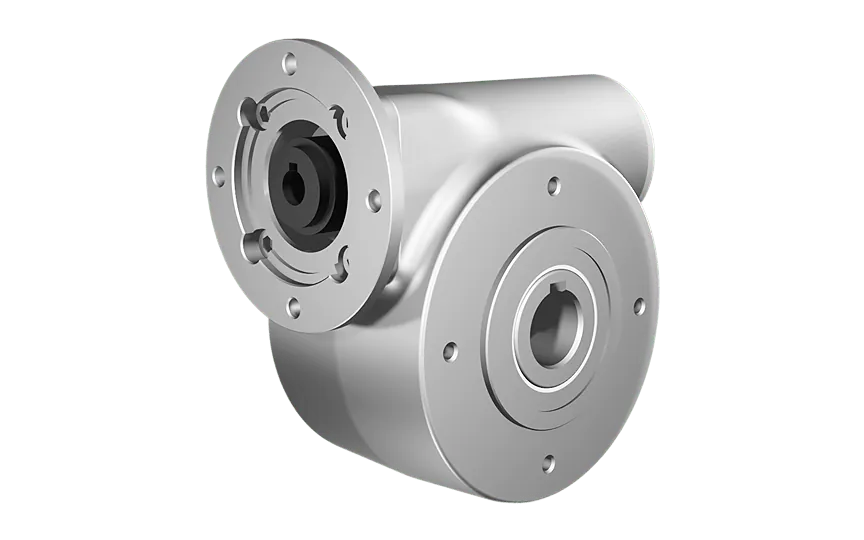

Clean-Geartech N50, worm gear Ø25, 7:1, input 63B14, stainless steel
HV82PN50UNIN010MFINN-PB3-B-OFThe Clean-Geartech N50, Worm Gearbox Ø25, 7:1, Input 63B14, Stainless Steel is designed for demanding technical environments. Key attributes include a BCD input of 75 mm, BCD output of 94 mm, and efficiency of 82%. The gear input shaft diameter is 11 mm, and the gear output shaft diameter is 25 mm. The gearbox features a 7:1 ratio and a N50 gear size. The gear motor interface is 63B14. All gear components are made from stainless steel AISI 316L, ensuring excellent resistance to corrosion. This unit is well-suited for applications requiring robust, hygienic, and durable transmission solutions.
Specifications
Product description
Downloads
€731.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
10.000000
Material
Stainless steel AISI 316L
Ratio
7:1
BCD input
75
BCD output
94
Efficiency (%)
82
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N50
Output speed at 1400 RPM
200
Max output torque (Nm)
57
Max kW input at 1400 rpm
1.5
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description: Clean-Geartech is a leading manufacturer of premium stainless steel gear solutions, specifically engineered for demanding industrial environments. Renowned for their exceptional corrosion resistance, robust design, and hygienic build, Clean-Geartech gear systems are the preferred choice across the pharmaceutical, food processing, marine, and chemical industries. Each product is built with high-grade AISI 316L stainless steel to ensure durability, cleanability, and long-term performance.Key Features, Functional Advantages & Typical Applications:
Stainless Steel AISI 316L Gear Housing – Ensures superior corrosion resistance and suitability for harsh, hygienic, or washdown environments such as chemical processing and food production.
25 mm Stainless Steel Hollow Output Shaft – Provides a robust and hygienic connection to driven equipment, ideal for environments with strict sanitary requirements.
Gear Ratio of 7:1 – Ensures substantial torque multiplication, optimal for low-speed, high-torque applications such as conveyors or mixers in industrial automation lines.
Worm Gear Design – Allows for right-angle power transmission and self-locking ability in many use cases, which enhances safety in vertical or load-holding setups.
Efficiency of 82% – Delivers energy-saving operation while maintaining sufficient torque output for technical applications requiring steady loads.
Input Shaft Diameter of 11 mm – Compatible with a variety of motor couplings and designed for compact drive systems with limited space.
Motor Interface 63B14 – Standard motor flange size simplifies integration with IEC motors, reducing installation time and ensuring compatibility across motor brands.
N50 Gear Size – Optimized for medium-duty applications, striking a balance between strength, compact form factor, and weight optimization.
Total Compatibility with Washdown Applications – The fully stainless design and sealed build make this gearbox ideal for clean-in-place (CIP) systems in biotech and dairy processing.
Serves as an ideal power transmission component in pharmaceutical assembly systems, marine equipment, bottling plants, and automated hygiene-critical industrial solutions.
