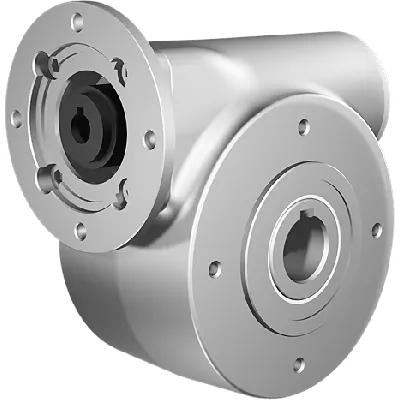

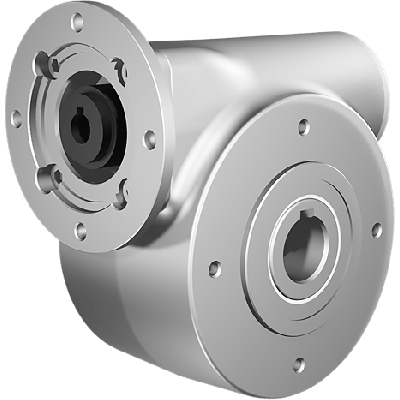

Clean-Geartech N50, worm gear Ø25, 68:1, input 63B14, stainless steel
HV82PN50UNIN090MFINN-PB3-B-OFThe Clean-Geartech N50, worm gearbox Ø25, 68:1, input 63B14, stainless steel is designed for demanding industrial applications. Key attributes: BCD input: 75 mm, BCD output: 94 mm, Efficiency: 57%, Gear input shaft: 11 mm, Gear output shaft: 25 mm, Gear ratio: 68:1, Gear size: N50, Gear motor interface: 63B14, and Gear material: Stainless Steel AISI 316L. The housing and all main components are made from corrosion-resistant stainless steel, making this worm gearbox suitable for use in environments requiring high durability and hygiene.
Specifications
Product description
Downloads
€731.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
10.000000
Material
Stainless steel AISI 316L
Ratio
68:1
BCD input
75
BCD output
94
Efficiency (%)
57
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N50
Output speed at 1400 RPM
21
Max output torque (Nm)
58
Max kW input at 1400 rpm
0.22
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description: Clean-Geartech is a leading European manufacturer specializing in high-performance stainless steel gearboxes for demanding industrial and hygiene-critical environments. Known for their precision engineering and innovative approach, Clean-Geartech gear solutions are trusted across the food, pharmaceutical, chemical, and marine industries. Their products meet the highest standards for durability, hygiene, and corrosion resistance.Key Features and Applications:
• Constructed from high-grade stainless steel AISI 316L, the housing provides maximum corrosion resistance, ideal for applications in food processing, pharmaceuticals, marine, and chemical industries.
• Hollow output shaft Ø25 mm made from stainless steel ensures durability and resistance to aggressive cleaning agents and harsh environments.
• Ratio of 68:1 delivers precise and powerful torque transmission, suitable for low-speed, high-load applications such as conveyors, mixers, and automated processing equipment.
• Compact gear size N50 makes integration easy in space-constrained installations while maintaining robust mechanical strength.
• B14 flange interface (63B14) enables standardized and flexible motor connection, streamlining assembly processes and reducing downtime during maintenance.
• Stainless steel input shaft Ø11 mm enhances resistance to wear and corrosion at a key mechanical interface, improving equipment lifespan.
• Worm gear efficiency at 57% supports torque-heavy applications, balancing performance with simplicity and reliability.
• BCD 75 input and BCD 94 output provide compatibility with a wide range of motor and driven components, increasing system integration possibilities.
• Fully sealed and easy-to-clean design supports hygienic applications and simplifies compliance with industry regulations.The Clean-Geartech N50 stainless steel worm gearbox is engineered for technical specialists looking for reliable, corrosion-resistant solutions in environments where hygiene, performance, and equipment longevity are critical.
• Constructed from high-grade stainless steel AISI 316L, the housing provides maximum corrosion resistance, ideal for applications in food processing, pharmaceuticals, marine, and chemical industries.
• Hollow output shaft Ø25 mm made from stainless steel ensures durability and resistance to aggressive cleaning agents and harsh environments.
• Ratio of 68:1 delivers precise and powerful torque transmission, suitable for low-speed, high-load applications such as conveyors, mixers, and automated processing equipment.
• Compact gear size N50 makes integration easy in space-constrained installations while maintaining robust mechanical strength.
• B14 flange interface (63B14) enables standardized and flexible motor connection, streamlining assembly processes and reducing downtime during maintenance.
• Stainless steel input shaft Ø11 mm enhances resistance to wear and corrosion at a key mechanical interface, improving equipment lifespan.
• Worm gear efficiency at 57% supports torque-heavy applications, balancing performance with simplicity and reliability.
• BCD 75 input and BCD 94 output provide compatibility with a wide range of motor and driven components, increasing system integration possibilities.
• Fully sealed and easy-to-clean design supports hygienic applications and simplifies compliance with industry regulations.The Clean-Geartech N50 stainless steel worm gearbox is engineered for technical specialists looking for reliable, corrosion-resistant solutions in environments where hygiene, performance, and equipment longevity are critical.
