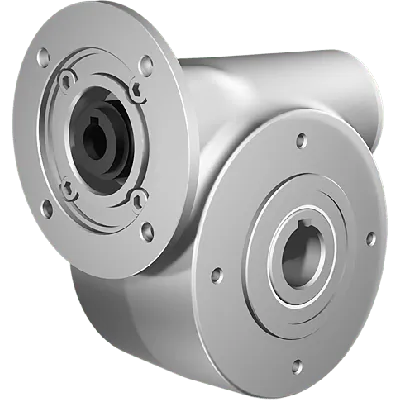

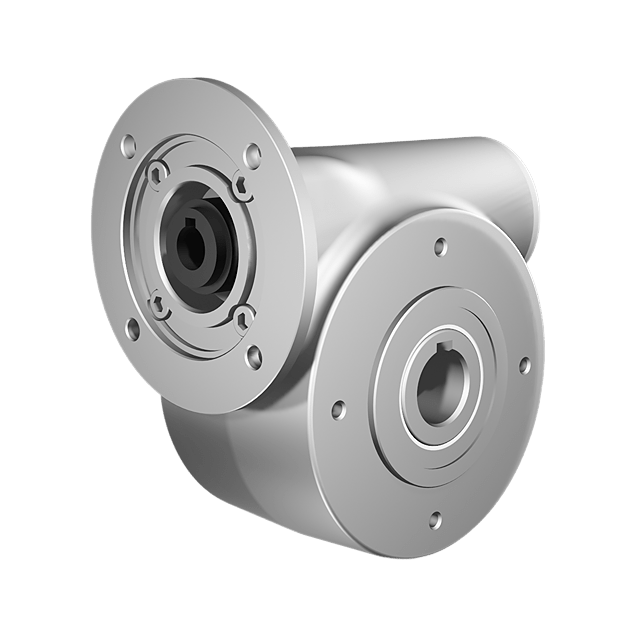

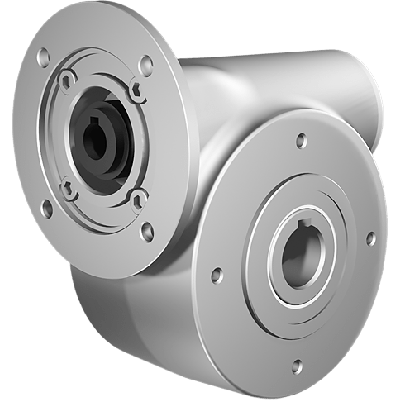

Brand Overview:Clean-Geartech is a renowned European manufacturer specialized in high-performance stainless steel gearboxes tailored for hygiene-sensitive and corrosive industrial environments. Built to meet stringent standards in sectors like food processing, pharmaceutical manufacturing, and chemical industries, Clean-Geartech products are well-known for their robust design, long service life, and superior corrosion resistance.Product Description:The Clean-Geartech N50 stainless steel worm gearbox is engineered for high durability and hygiene-critical applications. Designed with a 60:1 gear ratio, it features a Ø25 mm output shaft and is compatible with standard IEC motor flange 71B14. All major housing components are manufactured from corrosion-resistant AISI 316L stainless steel, making this gearbox ideal for continuous operation in demanding plant environments.Key Features and Application Areas:
– Constructed in AISI 316L stainless steel, offering outstanding corrosion resistance in environments exposed to aggressive cleaning agents, salty air, or chemical washdowns.

– Hygienic design supports use in food processing, dairy production, and pharmaceuticals, reducing contamination risks and meeting clean-in-place (CIP) requirements.

– 60:1 gear ratio provides high torque output at low speed, ideal for conveyor systems, mixers, and dosing equipment where speed reduction combined with high power transmission is essential.

– Ø25 mm stainless steel hollow output shaft enhances assembly flexibility and strength for driven component connections in harsh conditions.

– Designed for compatibility with standard IEC electric motors (input flange 71B14), ensuring easy motor integration without additional adapters.

– Compact N50 gearbox size allows for installation in space-restricted applications without compromising on performance.

– Efficiency of 58% delivers sufficient torque transmission while maintaining mechanical simplicity for reduced maintenance.

– Built-in worm gear mechanism offers self-locking capabilities at high ratios, enhancing operational safety in lifting or vertical transport systems.

– Engineering-grade BCD interface optimizations (Input: 85 mm, Output: 94 mm) ensure robust mechanical fits for enhanced reliability and smooth transmission.
Applications:
– Food & Beverage: conveyor belts, slicers, lifting arms, portioning machines

– Pharmaceutical: agitators, tablet filling systems, sterile conveyor systems

– Chemical Processing: mixing tanks, controlled flow regulation devices

– Maritime and offshore installations: corrosion-proof motion components

– Packaging and bottling: synchronized low-speed drives for precision placement
