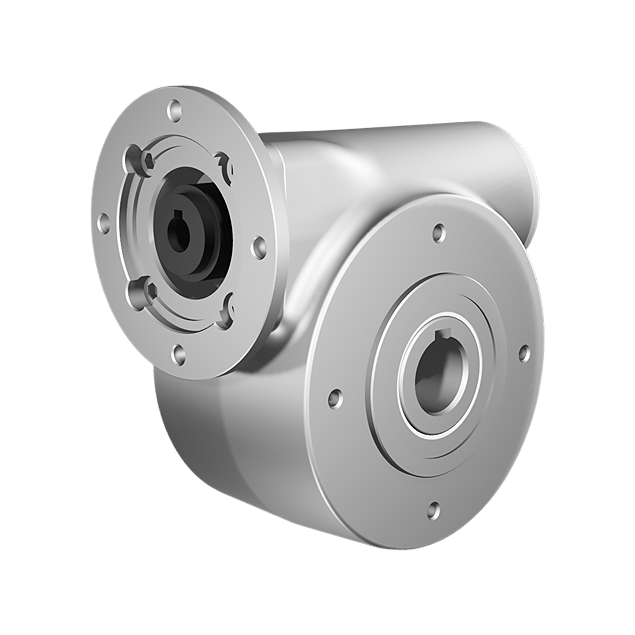

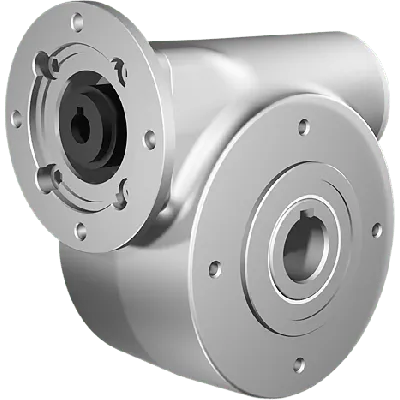

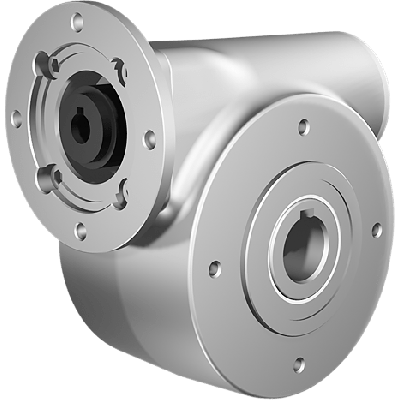

Clean-Geartech N50, worm gear Ø25, 60:1, input 63B14, stainless steel
HV82PN50UNIN080MFINN-PB3-B-OFThe Clean-Geartech N50, worm gear Ø25, 60:1, input 63B14, stainless steel is designed for demanding technical environments. Key attributes include: Input BCD: 75 mm, Output BCD: 94 mm, Efficiency: 58%, Gear input shaft: 11 mm, Gear output shaft: 25 mm, Ratio: 60:1, Gear size: N50, Gear motor interface: 63B14, and Gear material: Stainless steel AISI 316L. The use of stainless steel AISI 316L in the gear assembly ensures suitability for hygienic and corrosive applications. This product is purpose-built for reliability and technical precision.
Specifications
Product description
Downloads
€731.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
10.000000
Material
Stainless steel AISI 316L
Ratio
60:1
BCD input
75
BCD output
94
Efficiency (%)
58
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N50
Output speed at 1400 RPM
23
Max output torque (Nm)
62
Max kW input at 1400 rpm
0.26
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a leading manufacturer of hygienic and durable gear solutions made exclusively from high-grade stainless steel. Renowned for precision engineering and high corrosion resistance, Clean-Geartech products are widely used in industries such as food and beverage, pharmaceuticals, marine engineering, and harsh chemical environments, where mechanical strength and long service life are essential.The Clean-Geartech N50 Worm Gear Reducer is designed for demanding industrial applications requiring both robustness and hygiene. With a gear casing made from AISI 316L stainless steel and a compact, modular design, it offers flexibility and resistance where regular metal gears fail.Application & Feature Advantages:
High corrosion resistance with a full AISI 316L stainless steel housing – ideal for use in aggressive environments such as food processing, marine, and chemical industries.
Stainless Steel (SS) Ø25 mm output shaft enables reliable torque transfer with maximum hygiene and long-term durability in CIP/SIP environments.
Worm gear reducer with 60:1 gear ratio – efficiently reduces speed while delivering high torque, suitable for conveyor systems, mixers, and other high-load applications in automation.
Compatible with IEC 63B14 motor interface – provides easy integration with standard motors, reducing setup and maintenance time for engineers and technical specialists.
Ø11 mm input shaft enables precise coupling with external drive units, allowing for flexible design configurations in custom machinery.
Efficiency rating of 58% – optimized for applications where intermittently high torque is more critical than continuous operation, such as indexing or positioning systems.
N50 frame size offers a compact solution without compromising strength – fits into constrained mechanical setups while retaining excellent load capacity.Whether it’s used in automatic packaging equipment, pharmaceutical mixers, or corrosive process environments, the Clean-Geartech N50 is built for longevity, sanitation, and industrial-grade performance.
High corrosion resistance with a full AISI 316L stainless steel housing – ideal for use in aggressive environments such as food processing, marine, and chemical industries.
Stainless Steel (SS) Ø25 mm output shaft enables reliable torque transfer with maximum hygiene and long-term durability in CIP/SIP environments.
Worm gear reducer with 60:1 gear ratio – efficiently reduces speed while delivering high torque, suitable for conveyor systems, mixers, and other high-load applications in automation.
Compatible with IEC 63B14 motor interface – provides easy integration with standard motors, reducing setup and maintenance time for engineers and technical specialists.
Ø11 mm input shaft enables precise coupling with external drive units, allowing for flexible design configurations in custom machinery.
Efficiency rating of 58% – optimized for applications where intermittently high torque is more critical than continuous operation, such as indexing or positioning systems.
N50 frame size offers a compact solution without compromising strength – fits into constrained mechanical setups while retaining excellent load capacity.Whether it’s used in automatic packaging equipment, pharmaceutical mixers, or corrosive process environments, the Clean-Geartech N50 is built for longevity, sanitation, and industrial-grade performance.
