The Clean-Geartech brand is known for its exceptional focus on hygienic and corrosion-resistant drive solutions tailored to the strict demands of food processing, pharmaceutical, and chemical industries. Designed and manufactured with precision in mind, Clean-Geartech gear solutions combine durability with optimal performance in challenging environments.Main Features and Applications:
• Constructed from AISI 316L stainless steel housing – offering superior corrosion resistance, making it ideal for hygienic applications including food-grade processing, pharmaceutical production, and aggressive chemical environments.

• Output shaft Ø25 mm made from AISI 316L stainless steel – ensures mechanical strength and long service life even under heavy load and continuous operation in washdown applications.

• Hollow input shaft Ø11 mm – precision engineered for reliable coupling with IEC standard motors using the 63B14 interface, streamlining system integrations and enhancing operational efficiency.

• Gear ratio 50:1 – delivers high torque output at low rpm, suitable for applications requiring high power transmission with precise movement control, such as conveyors, mixers, and dosing systems.

• Gear size N50 compact format – offers a robust and space-efficient drive solution, designed for installations where enclosure space or hygienic design constraints are critical.

• Worm gear efficiency of 62% – optimized gearing for smooth operation and consistent torque delivery across a wide range of industrial automation tasks.

• Fully sealed, smooth exterior surface – minimizes bacterial contamination by eliminating dirt traps, meeting industry hygiene standards including IP69K compliance when properly installed.

• Compatible with standard 63B14 motor interface – enables seamless integration with IEC-standard electric motors, reducing downtime and facilitating easy maintenance or replacement.

• Designed for CIP (Clean-In-Place) processes – enabling operators to clean equipment without disassembly, significantly improving operational uptime and safety in food and pharma sectors.

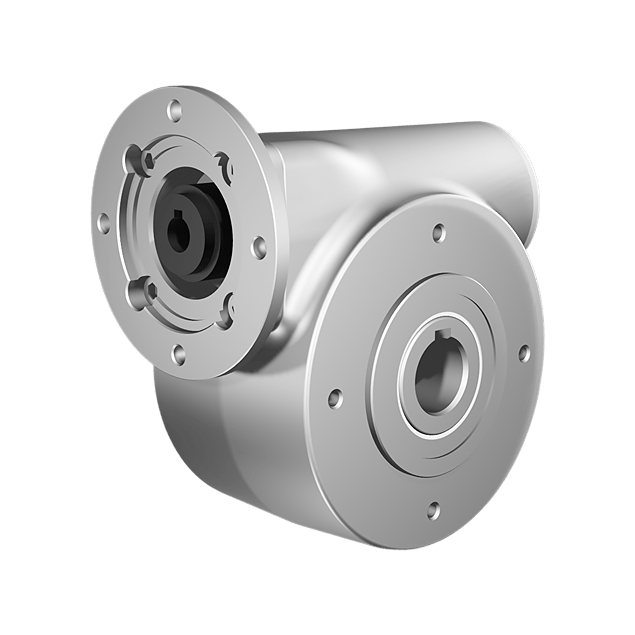

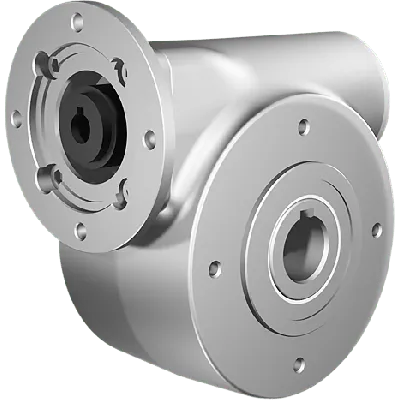

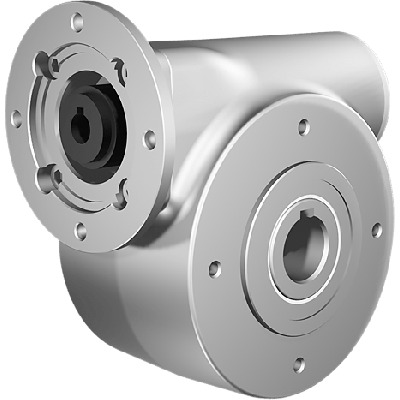

This Clean-Geartech N50 worm gearbox is the optimum drive solution where hygiene, corrosion resistance, and mechanical efficiency are paramount. Its stainless-steel design and engineering precision make it a trusted choice for technical experts in demanding industrial environments.
