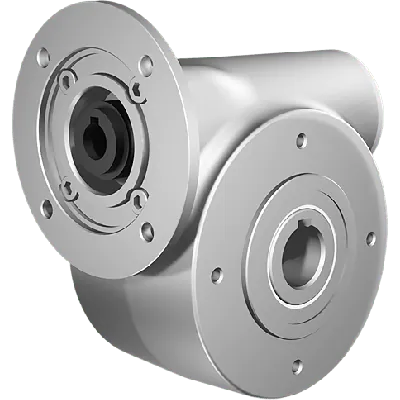

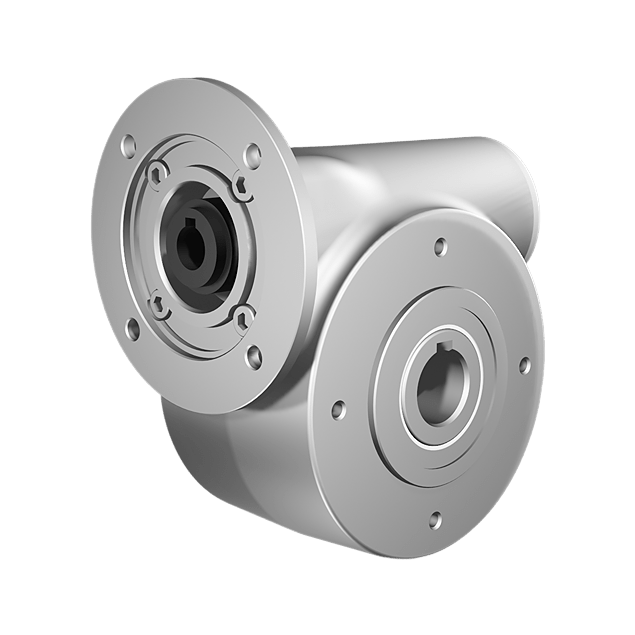

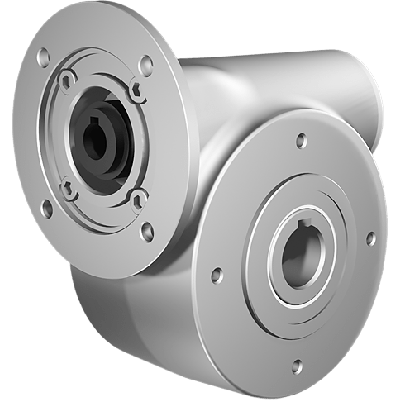

Clean-Geartech N50, worm gear Ø25, 43:1, input 71B14, stainless steel
HV82PN50UNIN070MFINN-QB3-C-OFFeaturing a gear size: N50 and a gear ratio of 43:1, this unit offers consistent transmission performance. The input shaft diameter is 14 mm, while the output shaft measures 25 mm. It connects via a 71B14 gear motor interface and delivers a mechanical efficiency of 66% under standard conditions.Constructed with GEAR Material: Stainless steel AISI 316L, it ensures durability in aggressive environments. Both BCD input: 85 and BCD output: 94 are compatible with standard mounting configurations.
Specifications
Product description
Downloads
€735.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
43:1
BCD input
85
BCD output
94
Efficiency (%)
66
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N50
Output speed at 1400 RPM
33
Max output torque (Nm)
68
Max kW input at 1400 rpm
0.35
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a leading manufacturer of hygienic, stainless steel gearboxes designed specifically for demanding industrial environments where cleanliness, durability and corrosion resistance are paramount. The company specializes in providing high-performance transmission solutions for the food processing, pharmaceutical, marine, and chemical industries. Their gearboxes are engineered with precision, using materials that meet the harshest requirements for hygiene and resistance against aggressive chemicals and washdown procedures.Key Features and Application Opportunities:
High-performance worm gearbox with a gear size of N50 and a reduction ratio of 43:1 enables significant torque multiplication, ideal for low-speed, high-torque industrial applications like conveyor systems, mixers and packaging machines.
The gear housing and key components are made of AISI 316L stainless steel, delivering excellent corrosion resistance ideal for applications in food, beverage, chemical, or marine sectors exposed to moisture, cleaning agents, and corrosive environments.
Efficient power transmission with 66% mechanical efficiency ensures energy savings while maintaining consistent torque output for demanding load profiles.
Output shaft with 25 mm diameter allows for secure mechanical coupling with standardized components in drive systems, suitable for automation, food processing, or pharmaceutical equipment where robust shaft performance is critical.
Input shaft diameter of 14 mm combined with a 71B14 flange interface enables easy integration with standard IEC electric motors, reducing customization cost and installation time.
Compact worm gear design supports installation in space-constrained environments without sacrificing performance, making it ideal for skids, processing lines, and enclosed mechanical systems.
The stainless steel (SS) hollow shaft design ensures exceptional chemical resistance and prevents oxidation and contamination — crucial for environments requiring frequent washdowns under HACCP or GMP standards.
Compatible with Clean-Geartech motor adapters and accessories, ensuring plug-and-play installation and serviceability for system integrators and machine builders. This gearbox combines strength, reliability, and excellent hygienic properties, making it an optimal choice for technical specialists working in industries that demand both mechanical performance and strict hygiene compliance.
High-performance worm gearbox with a gear size of N50 and a reduction ratio of 43:1 enables significant torque multiplication, ideal for low-speed, high-torque industrial applications like conveyor systems, mixers and packaging machines.
The gear housing and key components are made of AISI 316L stainless steel, delivering excellent corrosion resistance ideal for applications in food, beverage, chemical, or marine sectors exposed to moisture, cleaning agents, and corrosive environments.
Efficient power transmission with 66% mechanical efficiency ensures energy savings while maintaining consistent torque output for demanding load profiles.
Output shaft with 25 mm diameter allows for secure mechanical coupling with standardized components in drive systems, suitable for automation, food processing, or pharmaceutical equipment where robust shaft performance is critical.
Input shaft diameter of 14 mm combined with a 71B14 flange interface enables easy integration with standard IEC electric motors, reducing customization cost and installation time.
Compact worm gear design supports installation in space-constrained environments without sacrificing performance, making it ideal for skids, processing lines, and enclosed mechanical systems.
The stainless steel (SS) hollow shaft design ensures exceptional chemical resistance and prevents oxidation and contamination — crucial for environments requiring frequent washdowns under HACCP or GMP standards.
Compatible with Clean-Geartech motor adapters and accessories, ensuring plug-and-play installation and serviceability for system integrators and machine builders. This gearbox combines strength, reliability, and excellent hygienic properties, making it an optimal choice for technical specialists working in industries that demand both mechanical performance and strict hygiene compliance.
