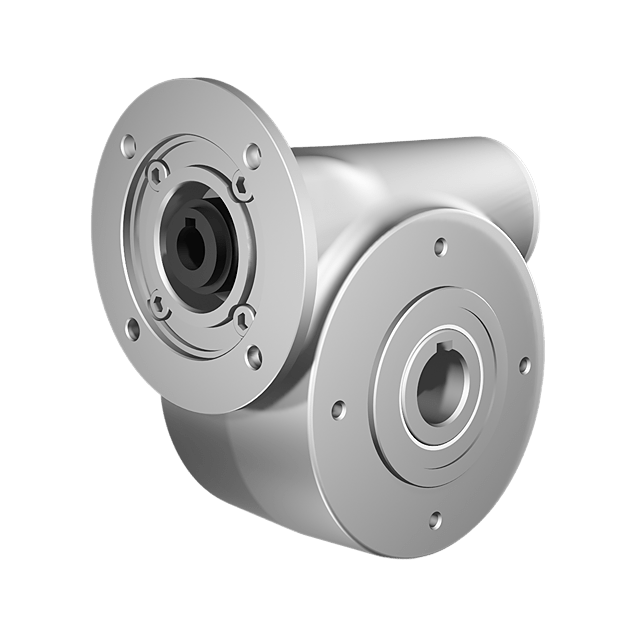

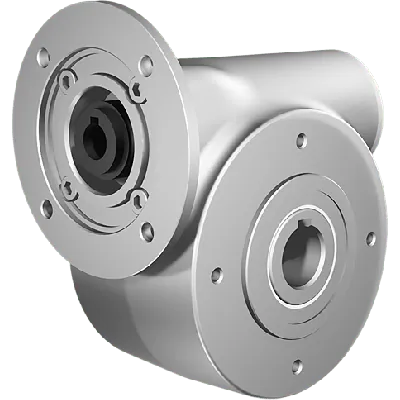

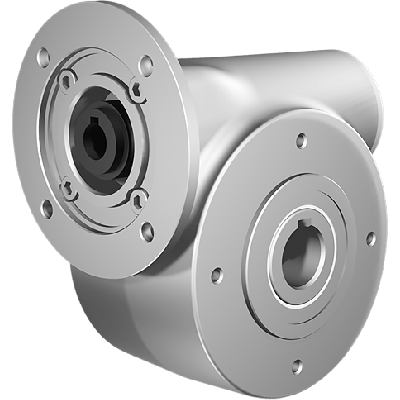

Clean-Geartech N50, worm gear Ø25, 36:1, input 71B14, stainless steel
HV82PN50UNIN060MFINN-QB3-C-OFThe Clean-Geartech N50, worm gear Ø25, 36:1, input 71B14, stainless steel is designed for demanding environments where hygiene and durability are critical. Featuring a 36:1 ratio and a N50 gear size, it delivers reliable torque conversion. The gear input shaft measures 14 mm and the gear output shaft is 25 mm, providing compatibility with a wide range of automation equipment. Constructed with stainless steel AISI 316L gears, it offers resistance to corrosion. The gear motor interface is 71B14. Operating at 69% efficiency, with BCD input 85 mm and BCD output 94 mm, this gear unit supports high-performance systems where cleanliness, robustness, and precise integration are required.
Specifications
Product description
Downloads
€735.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
36:1
BCD input
85
BCD output
94
Efficiency (%)
69
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N50
Output speed at 1400 RPM
39
Max output torque (Nm)
72
Max kW input at 1400 rpm
0.43
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech N50 worm gearbox is designed for demanding industrial applications requiring durability, corrosion resistance, and compatibility with hygienic environments. Manufactured by Clean-Geartech, a trusted name in precision stainless steel gear solutions, this gearbox is ideal for industries such as food processing, pharmaceuticals, chemicals, and marine engineering.Key Features, Functional Benefits, and Application Use-Cases:
Fully constructed from AISI 316L stainless steel, offering exceptional corrosion resistance—ideal for washdown environments, aggressive chemicals, and saltwater exposure.
Worm gear transmission with 36:1 reduction ratio ensures high torque output with compact footprint—perfect for systems requiring precise speed reduction and torque multiplication in tight installation spaces.
Hollow output shaft with Ø25 mm made from stainless steel enables easy integration with driven machine components—commonly used in conveyors, mixers, and rotary tables in food-grade and sterile environments.
Gear size N50 offers a compact and robust design ideal for high-load applications while maintaining a small physical profile—particularly useful in systems with space constraints.
Input shaft Ø14 mm designed for secure coupling with motor interfaces including IEC 71B14 flange—simplifies installation with standard motor configurations.
Stainless steel construction including all external components (SS hollow shaft, casing, fasteners) ensures long service life even under extreme conditions, minimizing maintenance-related downtime and increasing system reliability.
With an efficiency rating of 69%, the gearbox balances performance and power transmission, suitable for moderate-duty applications where hygiene standards are critical.
Suitable across a wide spectrum of technical applications: cleanroom environments, packaging machinery, automated dosing systems, agitators, and custom OEM solutions in regulated industries.Manufacturer Description:Clean-Geartech is a specialized manufacturer of high-quality gearboxes and transmission components crafted exclusively from stainless steel. Their N-series worm gearboxes are engineered for demanding applications where reliability, hygiene, and resistance to corrosives are paramount. With decades of experience in motion control systems, Clean-Geartech is a trusted partner for engineers seeking precision and performance in challenging environments.
Fully constructed from AISI 316L stainless steel, offering exceptional corrosion resistance—ideal for washdown environments, aggressive chemicals, and saltwater exposure.
Worm gear transmission with 36:1 reduction ratio ensures high torque output with compact footprint—perfect for systems requiring precise speed reduction and torque multiplication in tight installation spaces.
Hollow output shaft with Ø25 mm made from stainless steel enables easy integration with driven machine components—commonly used in conveyors, mixers, and rotary tables in food-grade and sterile environments.
Gear size N50 offers a compact and robust design ideal for high-load applications while maintaining a small physical profile—particularly useful in systems with space constraints.
Input shaft Ø14 mm designed for secure coupling with motor interfaces including IEC 71B14 flange—simplifies installation with standard motor configurations.
Stainless steel construction including all external components (SS hollow shaft, casing, fasteners) ensures long service life even under extreme conditions, minimizing maintenance-related downtime and increasing system reliability.
With an efficiency rating of 69%, the gearbox balances performance and power transmission, suitable for moderate-duty applications where hygiene standards are critical.
Suitable across a wide spectrum of technical applications: cleanroom environments, packaging machinery, automated dosing systems, agitators, and custom OEM solutions in regulated industries.Manufacturer Description:Clean-Geartech is a specialized manufacturer of high-quality gearboxes and transmission components crafted exclusively from stainless steel. Their N-series worm gearboxes are engineered for demanding applications where reliability, hygiene, and resistance to corrosives are paramount. With decades of experience in motion control systems, Clean-Geartech is a trusted partner for engineers seeking precision and performance in challenging environments.
