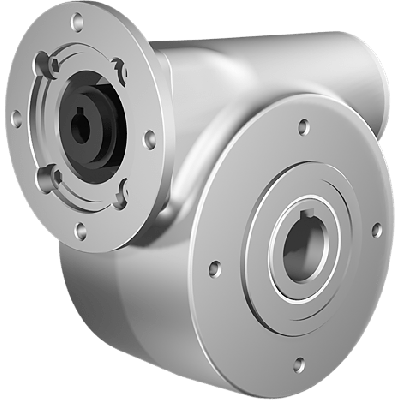

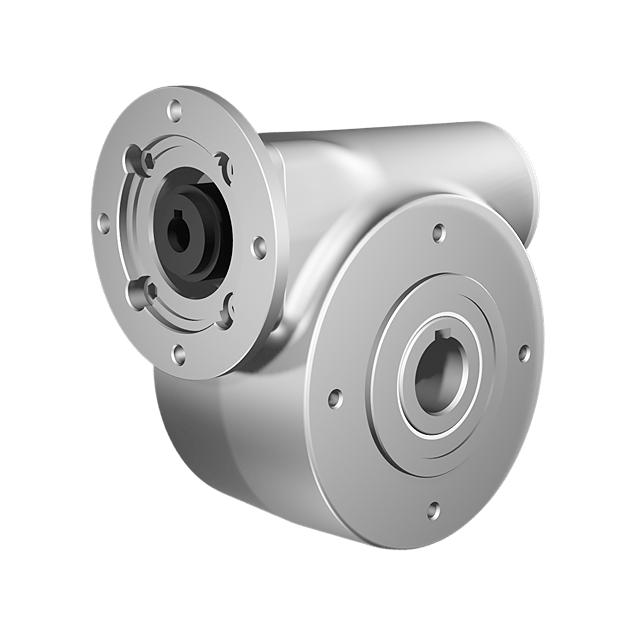

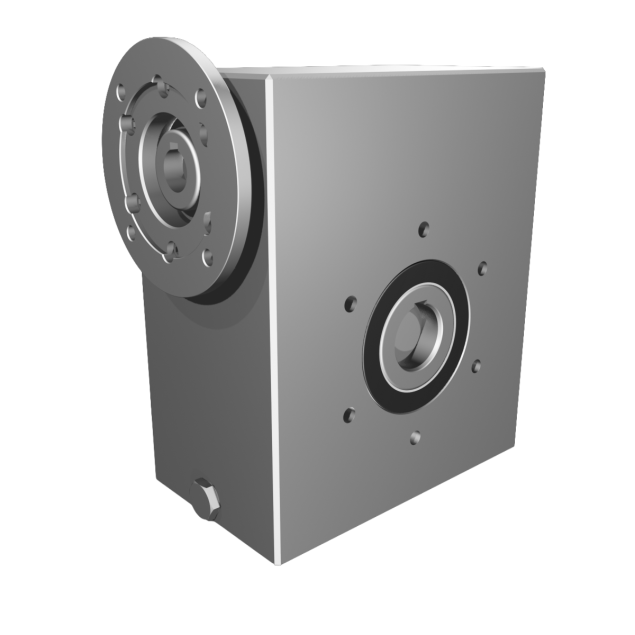

Clean-Geartech N50, worm gear Ø25, 36:1, input 63B14, stainless steel
HV82PN50UNIN060MFINN-PB3-B-OFThis model features a 36:1 gear ratio with a 25 mm output shaft and a 11 mm input shaft, optimized for 63B14 gear motor interface. The housing is built to last with AISI 316L stainless steel gears, making it ideal for hygienic or corrosive environments. With 69% efficiency, it ensures consistent torque delivery. The gear size is N50, with a BCD input of 75 and a BCD output of 94. This unit delivers durable performance where stainless steel construction and compact size are critical.
Specifications
Product description
Downloads
€731.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
36:1
BCD input
75
BCD output
94
Efficiency (%)
69
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N50
Output speed at 1400 RPM
39
Max output torque (Nm)
72
Max kW input at 1400 rpm
0.43
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description:Clean-Geartech is a premium European manufacturer specializing in hygienic and corrosion-resistant gear solutions. Focused on delivering high-performance gearboxes tailored to the stringent demands of the pharmaceutical, food processing, and other cleanroom-grade industries, Clean-Geartech is synonymous with durability, hygienic design, and reliability under harsh operating conditions.Key Features and Application Benefits:
Constructed entirely from stainless steel AISI 316L, the housing ensures superior corrosion resistance, making it ideal for aggressive washdown environments and chemically exposed applications.
Equipped with a stainless-steel Ø25 mm hollow output shaft, ensuring longevity and rust-free transmission—suitable for critical hygiene applications where contamination must be minimized.
The gearbox features a 36:1 gear ratio, delivering high torque output at low speeds; optimal for conveyor systems, mixers, and dosing units requiring precise movement control.
Integration with standard 63B14 IEC motor flanges allows flexible combinations with a variety of electric motors, simplifying design integration into existing systems.
A compact gear size (N50) offers space-saving solutions in dense machinery layouts while maintaining mechanical robustness for heavy industrial use.
Input shaft diameter of 11 mm adapts efficiently to standard motor couplings, ensuring seamless power transmission and minimal energy loss.
The gear assembly achieves a mechanical efficiency of 69%, optimized for intermittent duty cycles in industries where energy loss directly impacts process efficiency.Typical Applications:
Food and beverage machinery where strict hygiene standards demand non-corrosive materials in open processing lines.
Pharmaceutical filling and packaging machines requiring precise torque delivery and regular sterilization.
Chemical processing environments with exposure to corrosive agents, where AISI 316L provides unmatched protection.
Water treatment systems in marine, offshore, and utility sectors benefitting from resistant materials and reliable low-speed operation.
Constructed entirely from stainless steel AISI 316L, the housing ensures superior corrosion resistance, making it ideal for aggressive washdown environments and chemically exposed applications.
Equipped with a stainless-steel Ø25 mm hollow output shaft, ensuring longevity and rust-free transmission—suitable for critical hygiene applications where contamination must be minimized.
The gearbox features a 36:1 gear ratio, delivering high torque output at low speeds; optimal for conveyor systems, mixers, and dosing units requiring precise movement control.
Integration with standard 63B14 IEC motor flanges allows flexible combinations with a variety of electric motors, simplifying design integration into existing systems.
A compact gear size (N50) offers space-saving solutions in dense machinery layouts while maintaining mechanical robustness for heavy industrial use.
Input shaft diameter of 11 mm adapts efficiently to standard motor couplings, ensuring seamless power transmission and minimal energy loss.
The gear assembly achieves a mechanical efficiency of 69%, optimized for intermittent duty cycles in industries where energy loss directly impacts process efficiency.Typical Applications:
Food and beverage machinery where strict hygiene standards demand non-corrosive materials in open processing lines.
Pharmaceutical filling and packaging machines requiring precise torque delivery and regular sterilization.
Chemical processing environments with exposure to corrosive agents, where AISI 316L provides unmatched protection.
Water treatment systems in marine, offshore, and utility sectors benefitting from resistant materials and reliable low-speed operation.
