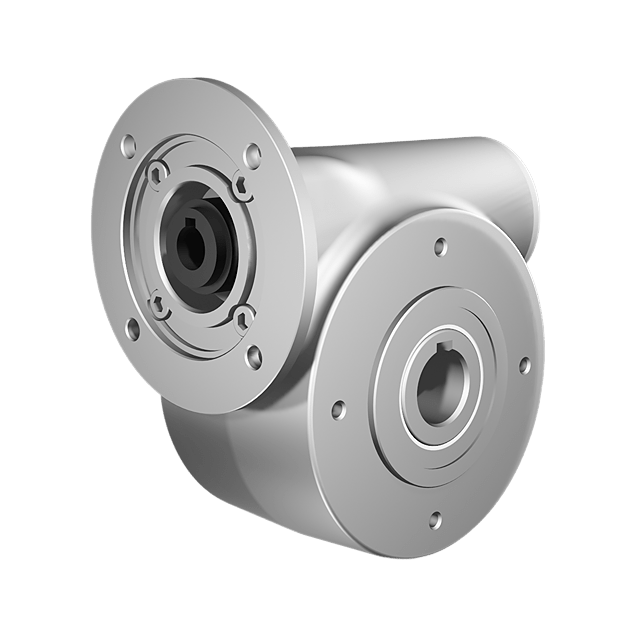

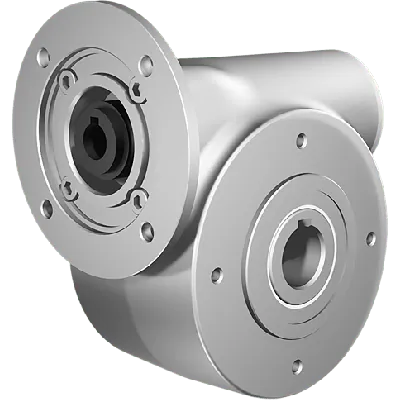

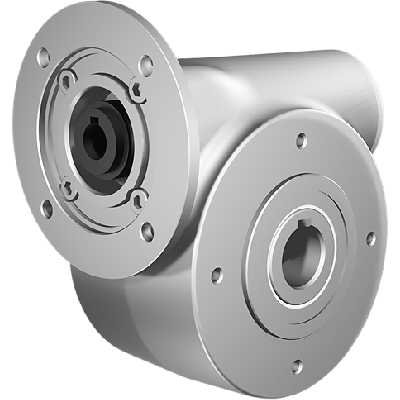

Clean-Geartech N50, worm gear Ø25, 30:1, input 80B14, stainless steel
HV82PN50UNIN120MFINN-RB3-D-OFThis unit features a 30:1 ratio and operates with an efficiency of 70%. It provides a BCD input of 100 mm and a BCD output of 94 mm. The gear input shaft diameter is 19 mm, while the output shaft diameter is 25 mm. Designed for versatility, it interfaces with motors via a 80B14 motor flange.The gear housing corresponds to size N50, and all gear components are made from stainless steel AISI 316L for corrosion resistance. Suitable for industries requiring hygiene and durability.
Specifications
Product description
Downloads
€746.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
30:1
BCD input
100
BCD output
94
Efficiency (%)
70
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N50
Output speed at 1400 RPM
47
Max output torque (Nm)
72
Max kW input at 1400 rpm
0.5
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a leading manufacturer specializing in high-performance, hygienic gear solutions engineered for demanding industrial environments. With a strong focus on reliability, corrosion resistance, and seamless integration, Clean-Geartech’s stainless steel gear products are ideally suited for the food, pharmaceutical, marine, and chemical processing industries. All components are engineered to perform under extreme conditions while ensuring compliance with strict hygiene and safety standards.Applications and Key Features:
• Constructed entirely from AISI 316L stainless steel, the Clean-Geartech N50 offers exceptional corrosion resistance, making it ideal for use in washdown environments, aggressive chemical areas, and food-grade applications.
• The 30:1 reduction ratio provides precise torque multiplication and speed control, well-suited for conveyor systems, mixers, and dosing machines requiring fine-tuned motion dynamics.
• 25 mm stainless steel output shaft (SS hollow shaft) delivers enhanced durability and consistent power transmission in heavy-duty industrial automation setups.
• Compatible input shaft Ø19 mm and IEC-standard motor interface (80B14) ensures quick integration with a range of motor types, enabling retrofit solutions and versatile system designs.
• 70% efficiency across the gear transmission results in energy-efficient operation for continuous duty cycles, reducing heat generation and operational costs over extended use.
• N50 gear size offers a compact design without compromising load capacity, making it ideal for constrained installation spaces in machinery or process lines.
• Rugged worm gear mechanism ensures quiet, vibration-dampened motion—particularly advantageous for lab environments, packaging lines, and sensitive production zones. Targeted for technical specialists and mechanical designers, the Clean-Geartech N50 stands out as a hygienic, space-saving, and easy-to-integrate worm gear reducer for sectors requiring uncompromising material quality and reliability in performance-critical equipment.
• Constructed entirely from AISI 316L stainless steel, the Clean-Geartech N50 offers exceptional corrosion resistance, making it ideal for use in washdown environments, aggressive chemical areas, and food-grade applications.
• The 30:1 reduction ratio provides precise torque multiplication and speed control, well-suited for conveyor systems, mixers, and dosing machines requiring fine-tuned motion dynamics.
• 25 mm stainless steel output shaft (SS hollow shaft) delivers enhanced durability and consistent power transmission in heavy-duty industrial automation setups.
• Compatible input shaft Ø19 mm and IEC-standard motor interface (80B14) ensures quick integration with a range of motor types, enabling retrofit solutions and versatile system designs.
• 70% efficiency across the gear transmission results in energy-efficient operation for continuous duty cycles, reducing heat generation and operational costs over extended use.
• N50 gear size offers a compact design without compromising load capacity, making it ideal for constrained installation spaces in machinery or process lines.
• Rugged worm gear mechanism ensures quiet, vibration-dampened motion—particularly advantageous for lab environments, packaging lines, and sensitive production zones. Targeted for technical specialists and mechanical designers, the Clean-Geartech N50 stands out as a hygienic, space-saving, and easy-to-integrate worm gear reducer for sectors requiring uncompromising material quality and reliability in performance-critical equipment.
